 Home > Broadcasting -> Cameras -> HDMI -> Minrray -> UV1201-T20 Box Camera 20x Optical Zoom, 2.07MP HD-SDI, HDMI, LAN

Minrray UV1201-T20
Box Camera 20x Optical Zoom, 2.07MP HD-SDI, HDMI, LAN

Manufacturer SKU: MIN-UV1201T20
Satisfaction Guaranteed!
MSRP: $1,125.00
Our Price: $700.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top UV1201-T20 Specifications
  • Sensor: 1/2.8 inch high-quality HD CMOS sensor
  • Effective Pixels: 16: 9, 2.07 megapixel
  • Video Format: 1080P60/50/30/25/59.94/29.97 / 1080I60/50/59.94 / 720P60/50/30/25 /59.94/29.97
  • Optical Zoom: 20X optical zoom, f 5.2 98mm
"Love the products we've ordered- they've been awesome!"
Contact a product specialist!
Proudly supporting our customers since 2008

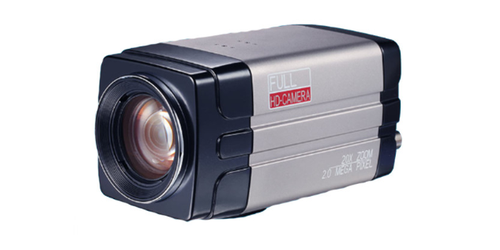

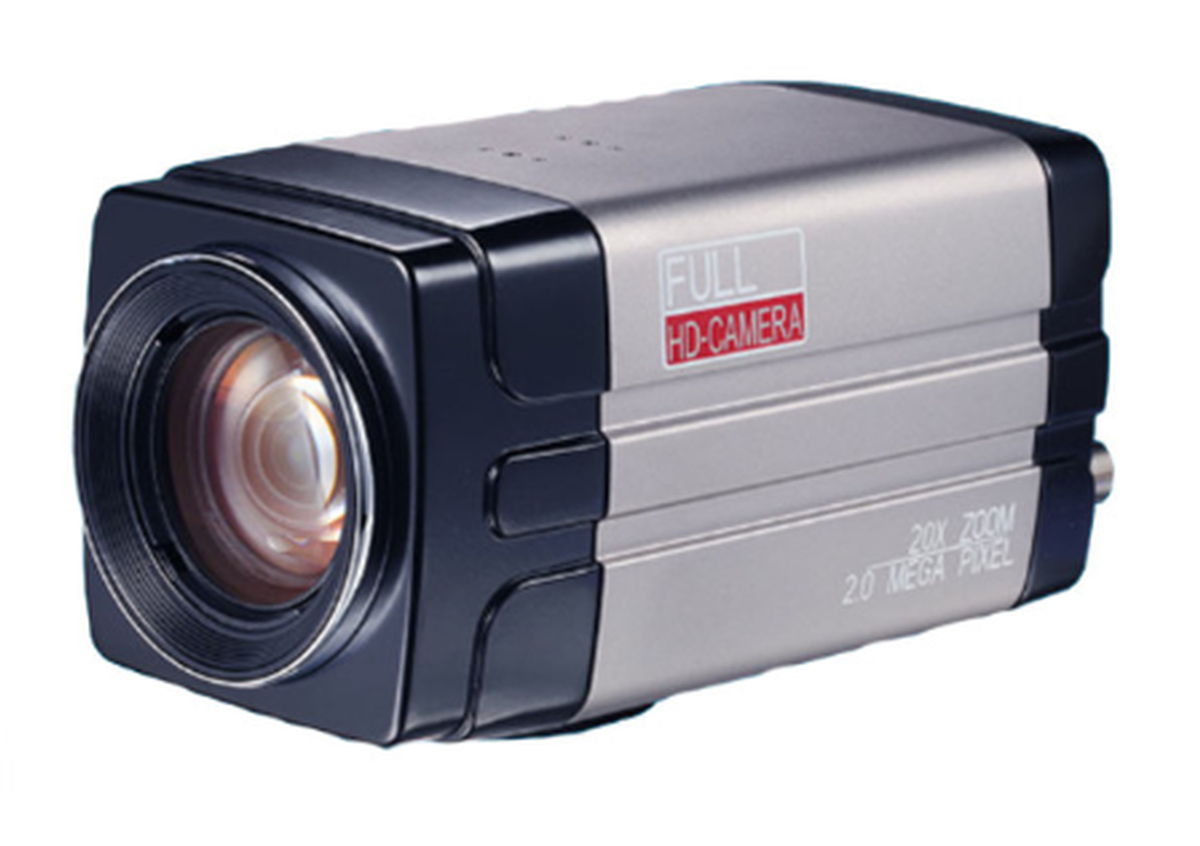

Minrray's UV1201-T20 is a box camera with 20x optical zoom with multiple interfaces, such as HDMI, 3G-SDI, and LAN. It features an advanced image processing algorithm, which enables high-resolution, accurate depth, and vivid colors. This camera supports H.264/265 encoding, ensuring that your image doesn't suffer when in low-bandwidth environments. This box camera also uses a high-quality CMOS sensor that supports resolutions up to 1920x1080 and 60pfs frame rate. The CMOS sensor also ensures that the camera performs quietly, with a high signal-to-noise ratio.

The camera features auto-focus technology, making clear, stable images easy to capture. The UV1201-T20 is ideal in tele-education and tele-medicine environments, lecture capture, webcasting and videoconferencing, as well as interrogation environments. Other key features of the Minrray UV1201-T20 include the following:

  • Low Noise CMOS effectively ensure high SNR of camera video.
  • Advanced 2D/3D noise reduction technology reduces noise while ensuring image sharpness
  • Supports the following protocols
    • RTMP push mode
    • Visca protocol control through IP port


  • View Angle: 5.5 (tele) 54.7 (wide)
  • Aperture: F1.6 F3.5
  • Digital Zoom: 10X
  • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
  • DNR: 2D & 3D DNR
  • White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
  • Focus: Auto/Manual
  • Aperture: Auto/Manual
  • Electronic Shutter: Auto/Manual
  • WDR: OFF/ Dynamic level adjustment
  • Video adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >55dB

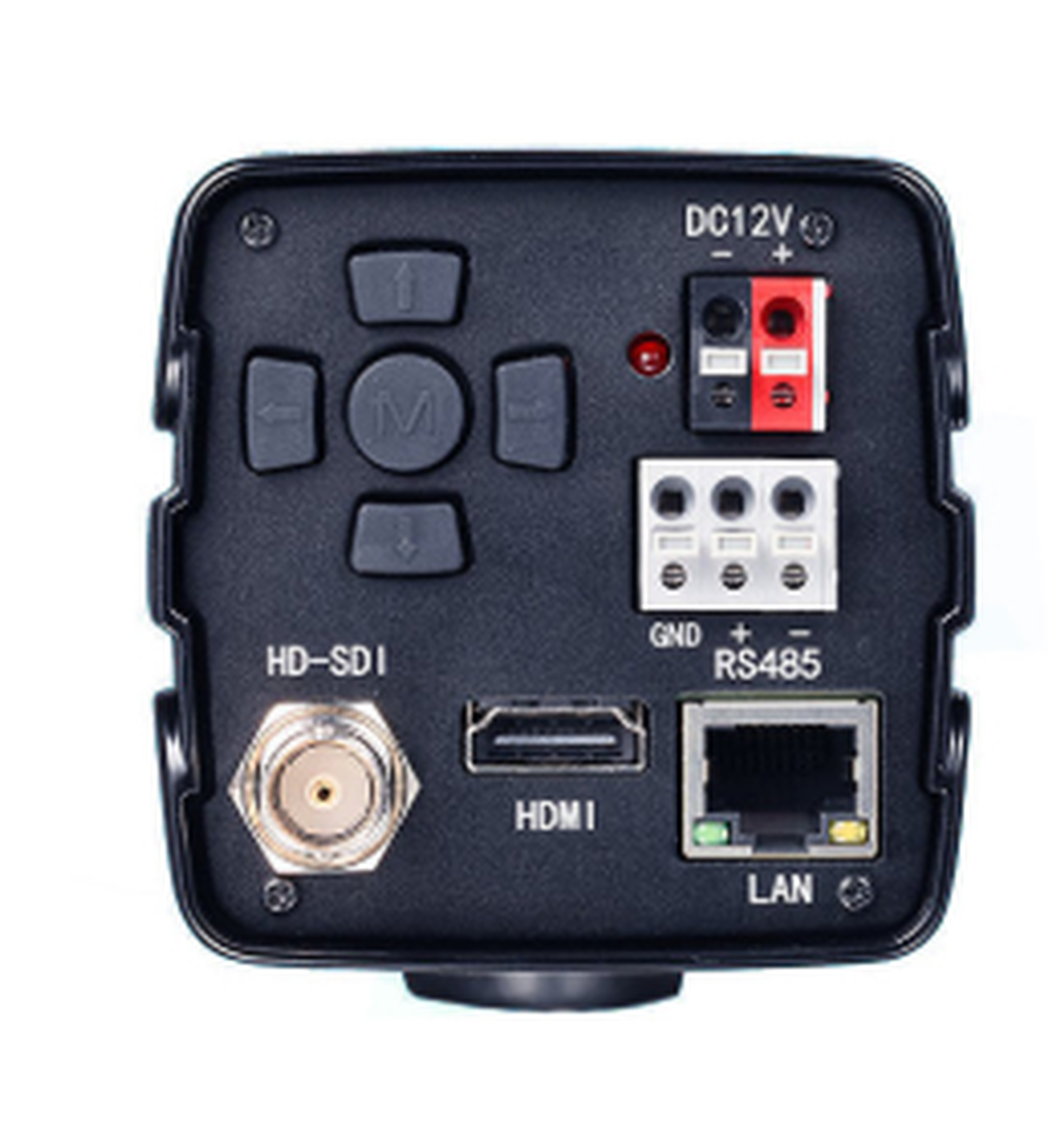

  • Video Interfaces: HDMI,3G-SDI
  • Image Code Stream: Dual stream output
  • Video Compression Format: H.264, H.265
  • Control Protocol: VISCA / Pelco-D / Pelco-P
  • Baud Rate: 115200/9600/4800/2400bps
  • HD IP Interface: 100M IP port (10/100BASE-TX)
  • Network Protocol: RTSP / RTMP, ONVIF
  • Power Interface: 5.0 Card line socket (DC12V)
  • Power Adaptor: AC110V-AC220V to DC12V/1A
  • Input Voltage: DC12V 10%
  • Input Current: 400mA(Max) Consumption: 4.8W (Max)
  • Store Temperature: -10 +60
  • Store Humidity: 20% 95%
  • Working Temperature: -10 +50
  • Working Humidity: 20% 80%

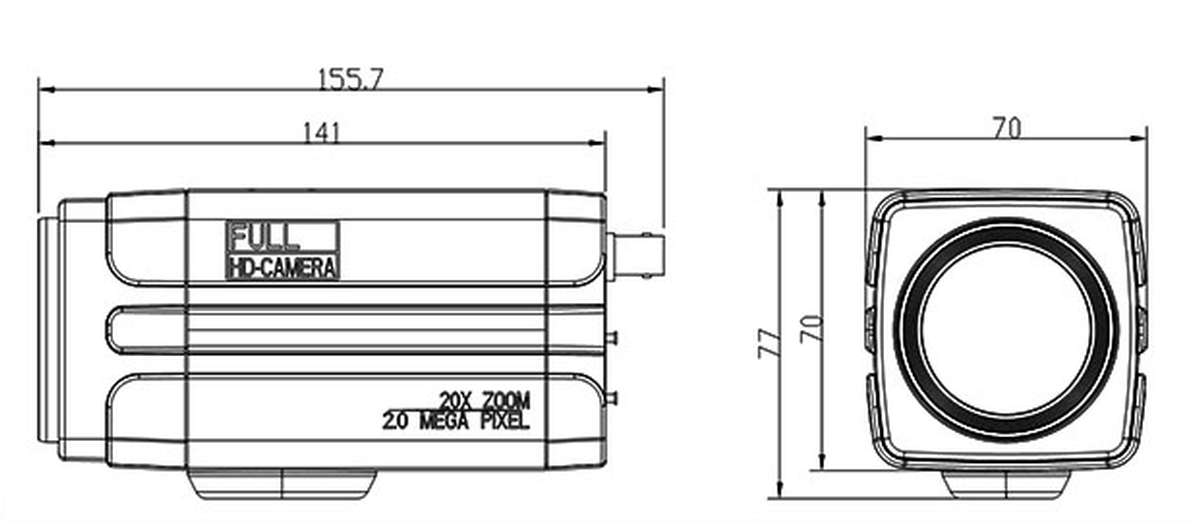

  • Dimension: 155.7mmX70mmX70mm
  • Weight: 0.7KG
  • Application: Indoor
  • Remote Operation (IP): Remote Upgrade, Reboot, and Reset
  • Accessory: 12V/1A Power supply, User Manual, Warranty card, brackets(optional)
  • Warranty: 2 years
  • Warranty Terms: The warranty starts from the delivery date from factory / During the warranty, any defective product will get repaired or replaced for free / The warranty is unavailable for those products which are broken by the violence or the carelessness or repaired or altered without authorization / An RMA form is required
