Minrray U510A-20-ST-POE-IR
PTZ Camera 20x Optical Zoom, HD-SDI, HDMI, PoE

Manufacturer SKU: MIN-UV510A20STPOEIR
Satisfaction Guaranteed!
MSRP: $1,322.00
Our Price: $1,018.97
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top U510A-20-ST-POE-IR Specifications
  • Optical Zoom: 20X
  • AV: F1.6 F3.5
  • Digital Zoom: 10X
  • f = 5.2~98mm
"Quick and easy to find what I was looking for."
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008


Minrray's UV510A-20-ST-POE-IR is a pan, tilt, zoom camera 20x optical zoom, standard interface, Power over Ethernet, and IR remote. It features an advanced processing algorithm, which enables high-resolution, accurate depth, and vivid colors. This camera supports H.264/265 encoding, ensuring that your image doesn't suffer when in low-bandwidth environments. This PTZ camera also uses a high-quality CMOS sensor that supports resolutions up to 1920x1080 and 60pfs frame rate. The CMOS sensor also ensures that the camera performs quietly, with a high signal-to-noise ratio.

The camera features auto-focus technology, making clear, stable images easy to capture. Other key features of the Minrray UV510A-20-ST-POE-IR include the following:

  • Supports 16000, 32000, 44100, 48000 sampling frequency
  • Supports AAC, MP3, PCM audio coding
  • Supports H.264/H.265 video compression, AAC, MP3, and PCM audio compression
  • Supports multiple network protocols, such as ONVIF, RTSP, RTMP
  • Supports real-time messaging protocol (RTMP) push mode, easy to link streaming media server (Wowza, FMS)
  • RS-232 cascade function for convenient installation
  • Low-power sleep function with power consumption lower than 400mW in sleep mode


  • Sensor: 1/2.8 inch high quality HD CMOS sensor
  • Effective Pixels: 16: 9, 2.07 megapixel
  • Video Format: HDMI/SDI/HDBaseT video format Resolutions: Up to 1080P60/50/30/25/59.94/29.97
  • View Angle: 3.3 (tele) 54.7 (wide)
  • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
  • DNR: 2D and 3D DNR
  • White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
  • Focus/Aperture/Electronic Shutter: Auto/Manual
  • WDR: OFF/ Dynamic level adjustment
  • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >55dB

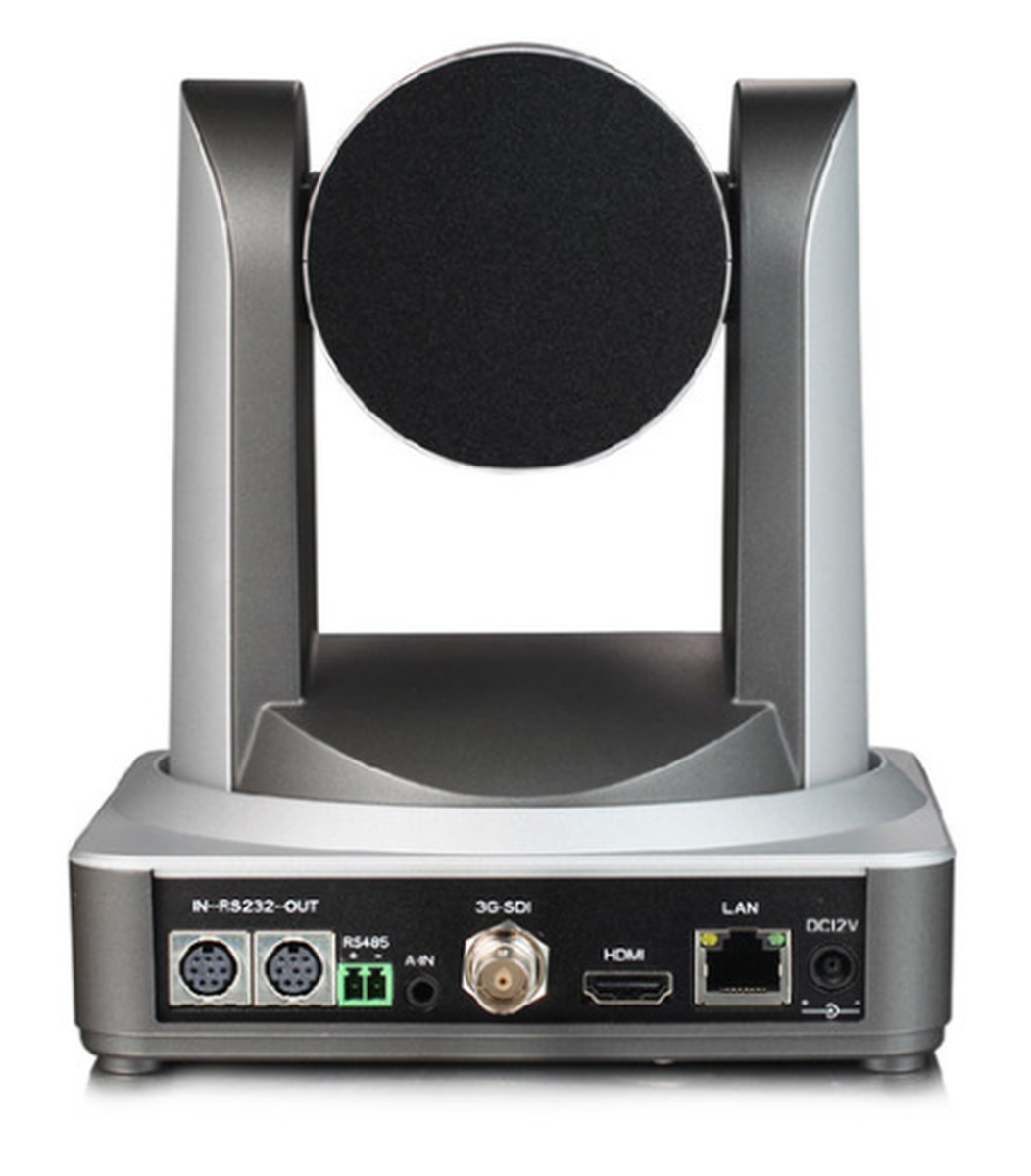

  • Video Interfaces: SDI, HDMI, LAN, RS232 (In & Out), RS485, A-IN
  • Video Compression Format: H.264, H.265, Dual stream output
  • Control Protocol: VISCA/Pelco-D/Pelco-P / Baud Rate: 115200/9600/4800/2400bps
  • Audio Input Interface: Double track 3.5mm linear input
  • Audio Compression Format: AAC/MP3/PCM Audio compression
  • HD IP Interface: 100M IP Port(100BASE-TX)
  • Support VISCA protocol control through IP port
  • Network Protocol: RTSP, RTMP, ONVIF, GB/T28181
  • Pan/Tilt Rotation: 170 ,-30 +90
  • Pan Control Speed: 0.1 60 /sec
  • Tilt Control Speed: 0.1 30 /sec
  • Preset Speed Pan: 60 /sec, Tilt: 30 /sec
  • Supply Adapter: AC110V-AC220V to DC12V/1.5A

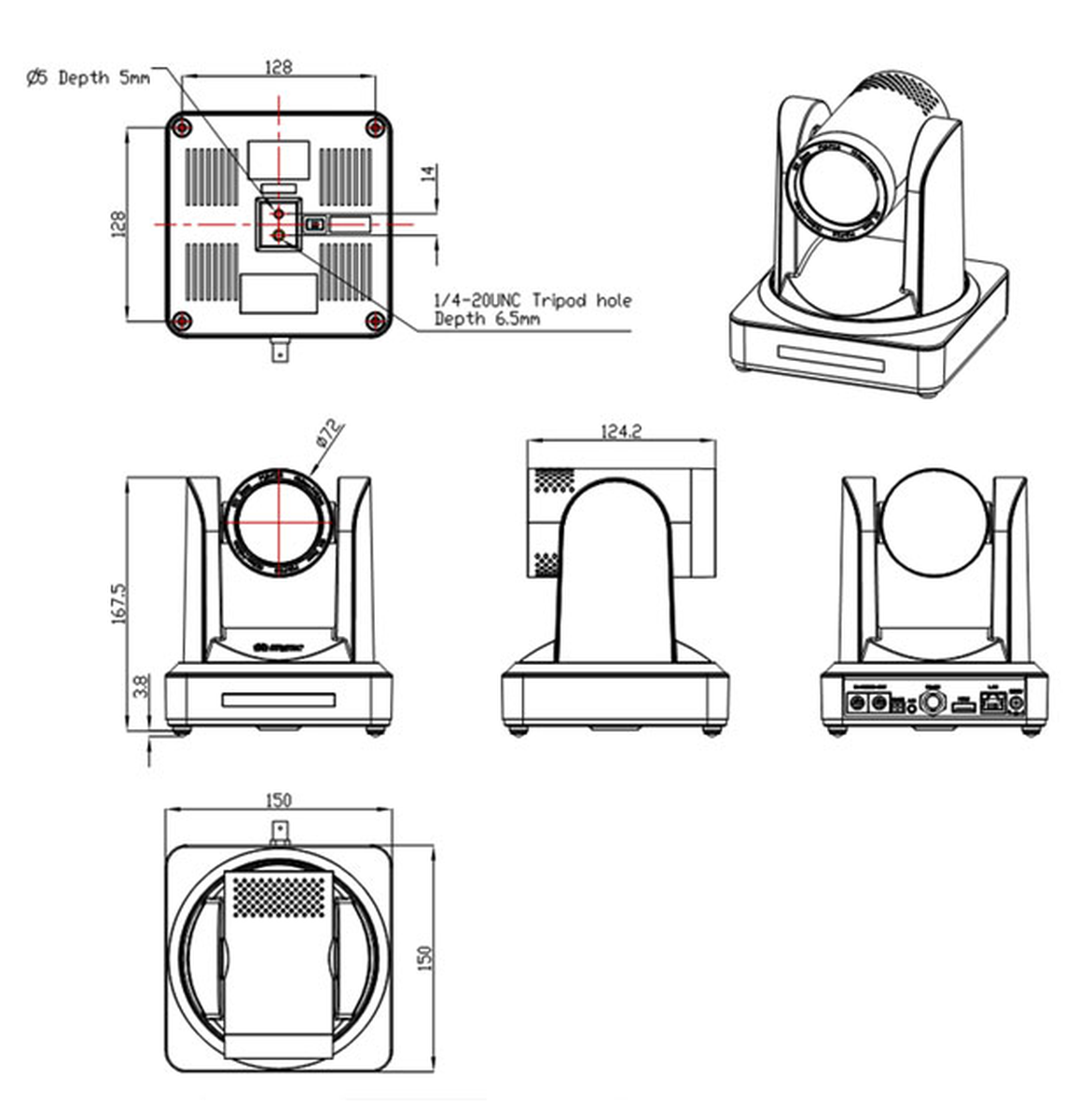

  • Dimension: 150mmX150mmX167.5mm
  • Weight: 1.4KG
  • Warranty: 2 years
