Lew Electric RF9C4B
4" Raised Floor Box w/ Lid, 4 Decora Cutouts

Description

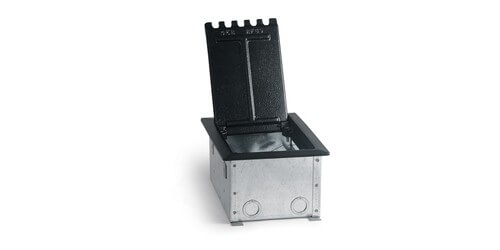

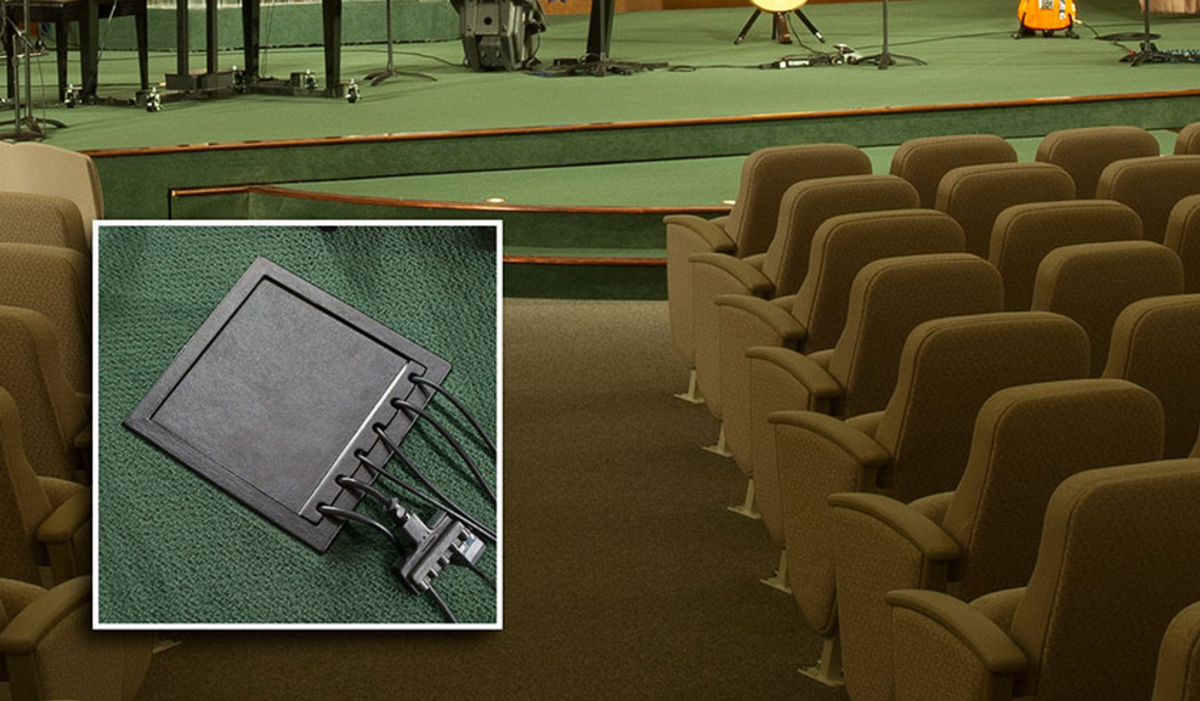

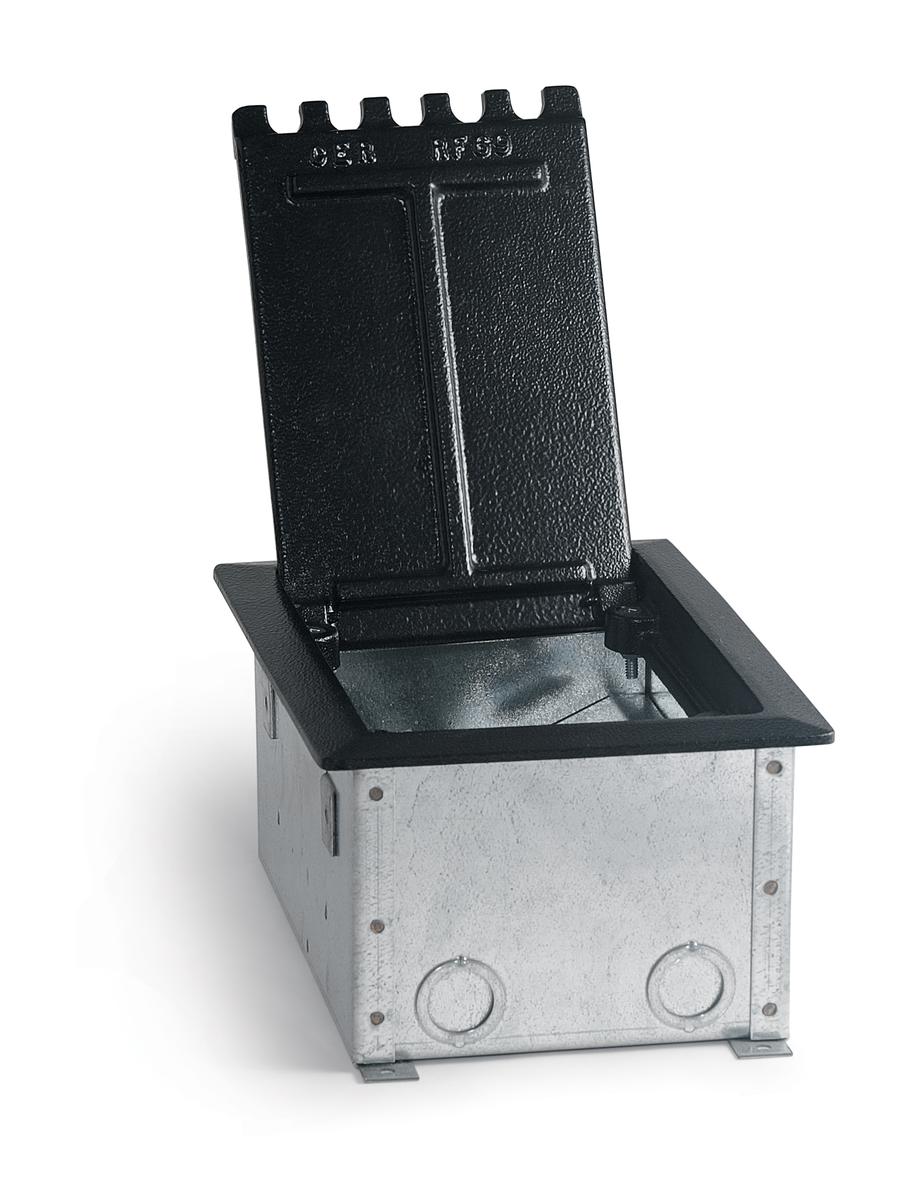

The Lew Electric RF9C4B is a floor box designed specifically for raised floors and stages. Included is a heavy duty cast aluminum black lid, when closed there are 5 gaps for cables to pass through while they are still connected inside the box.

Inside the box you will find openings for 4 decora cutouts.

The box is made of a very durable 16 gauge galvanized steel, and the lid features a heavy duty 1/4" thick flange and a 3/4" thick bottom lip. The lid features a 1/4" recess in the top for inserting carpet or tile. There are two knockouts on each side of the box, they can be popped out to accept either 1/2" or 3/4" conduit.

Installing to floor is easy by removing the lid and screwing the flange to the floor, then re-install the lid.

The Lew Electric RF9C4B is an affordable high quality raised access floor box that allows cables to be plugged in with the lid closed.

Specifications:
Inside openings: 4 decora cutouts
Lid construction: Black cast aluminum with 1/4" thick flange and 5 cable access holes
Box construction: 16 gauge galvanized steel
Lid dimensions: 9 11/16"L x 6 11/16"W
Box dimensions: 8 3/4"L x 5 11/16"W x 4 1/8"H
4 knockouts, your choice of 1/2" or 3/4"
Warranty: 6 months
Decora cutout dimensions: 1.3125" x 2.66"

Specifications

• Lid dimensions: 9 11/16"L x 6 11/16"W
• Box dimensions: 8 3/4"L x 5 11/16"W x 4 1/8"H
• 4 knockouts, your choice of 1/2" or 3/4"
• Warranty: 6 months

Downloads

• Lew Electric RF9C4B Specifications (PDF)
• Lew Electric RF9C4B Manual (PDF)
• Box diagram (PDF)
