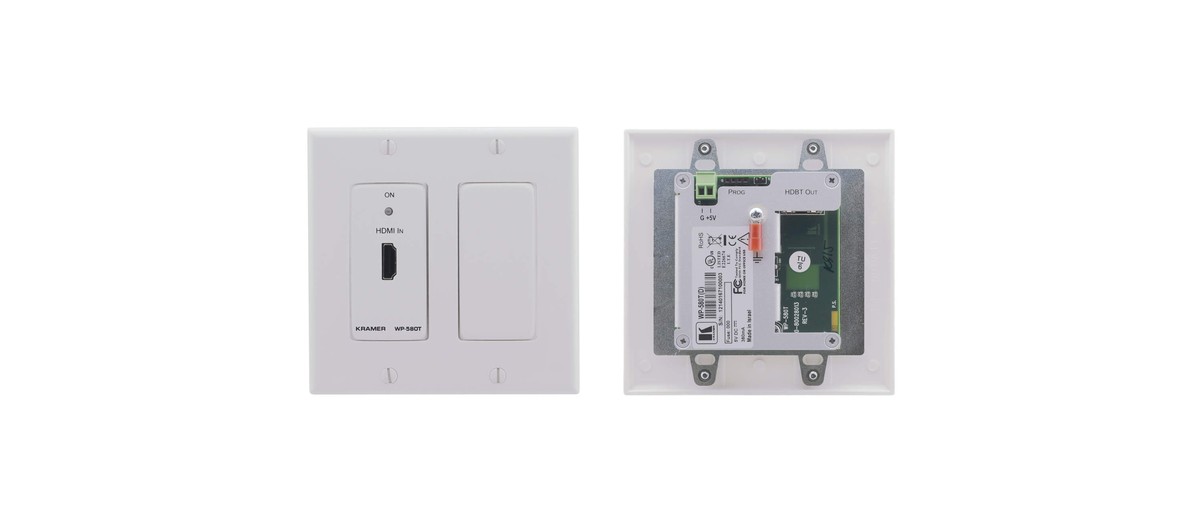

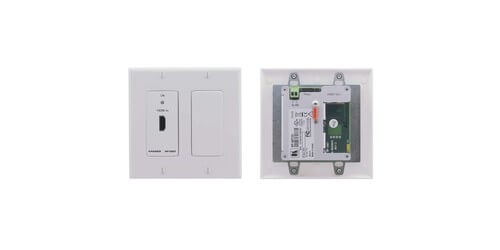

Kramer AV WP-580TXR/D(B)
2-Gang HDBaseT Transmitter 4K60 HDMI Long Range Wall Plate

Manufacturer SKU: 50-800283095
This product has been discontinued

Top WP-580TXR/D(B) Specifications
  • 2K & 4K Support: 4K/60 UHD (4:2:0)
  • Input: HDMI
  • Output: RJ-45
  • HDCP compliant
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008

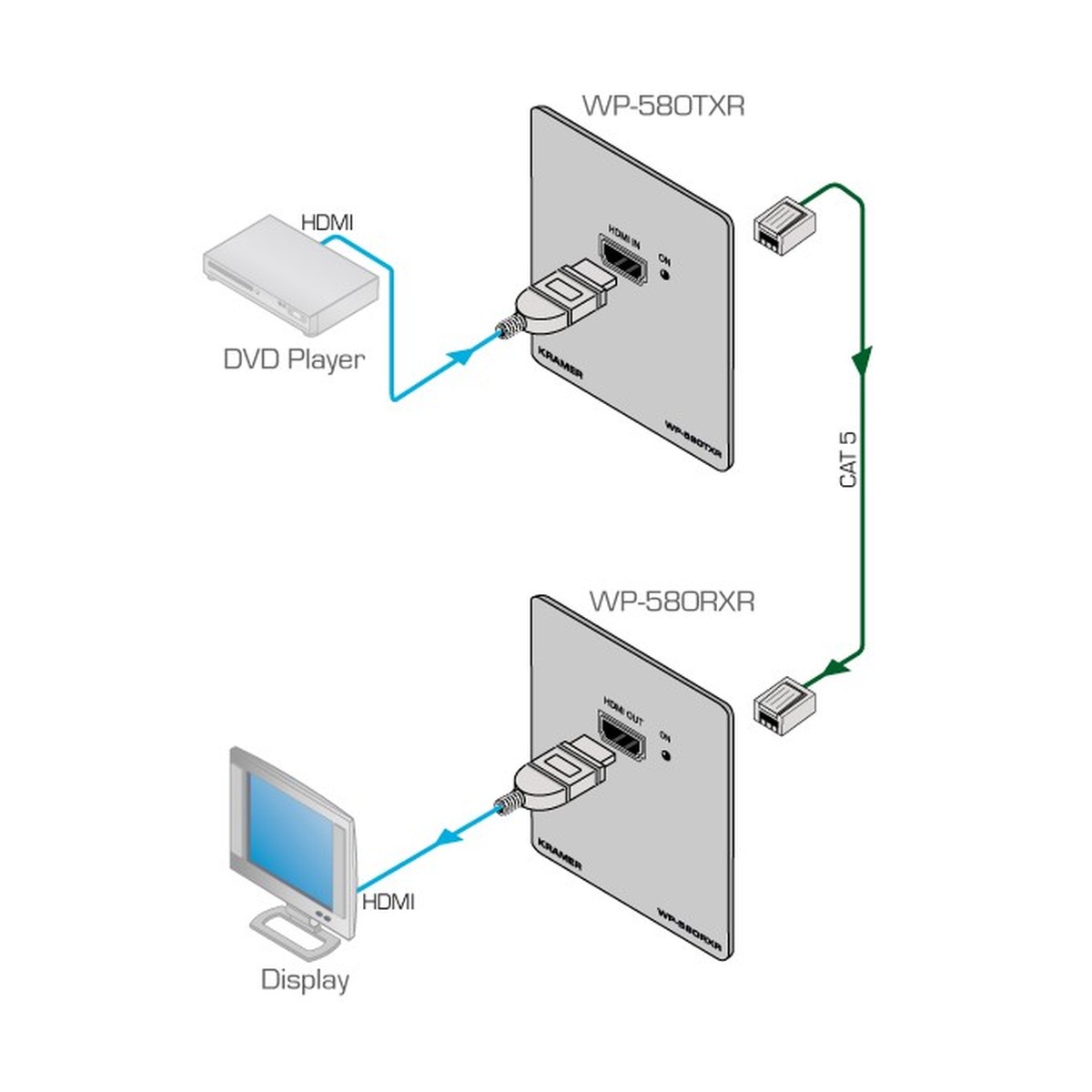

The Kramer WP-580TXR/D(B) is a 4K/60 UHD (4:2:0) decora HDMI wall plate with a single HDMI connection that also has an integrated HDBaseT transmitter.  You input your HDMI connection and on the back of the wall plate it outputs your signal over a twisted pair cable that can reach a distance of up to 430', or up to 590' with C-HDK6/HDK6 cable.  The WP-580TXR/D(B) is HDCP compliant, supports resolutions up to 4K@60 4:2:0, and features 3D and EDID pass through.


  • Data Rate: 10.2Gbps (3.4Gbps per graphic channel) in normal mode/ 4.95Gbps (1.65Gbps per graphic channel) in ultra mode
  • 3D Pass-Through Distance: 430' normal mode, 590' ultra mode
  • HDMI Support - Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS HD, CEC
  • Dimensions: Decora 2 gang
  • Color: White
  • Includes: Power supply and face plate
  • Weight: 1.4lbs
  • Warranty: 7 years
