Kramer AV WP-580R/D(W)
2 Gang Decora HDBaseT Receiver 4K60 HDMI Wall Plate - 230'
Manufacturer SKU: 50-800260095
.jpg "Kramer WP-580R/D(W)")
.jpg)
This product has been discontinued
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top WP-580R/D(W) Specifications
- Resolution: 4K60 UHD (4:2:0) Input: HDBaseT Twisted pair RJ-45
- Output: HDMI
- Range: Up to 230' HDCP compliant
- HDMI Support - Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTSHD, CEC
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

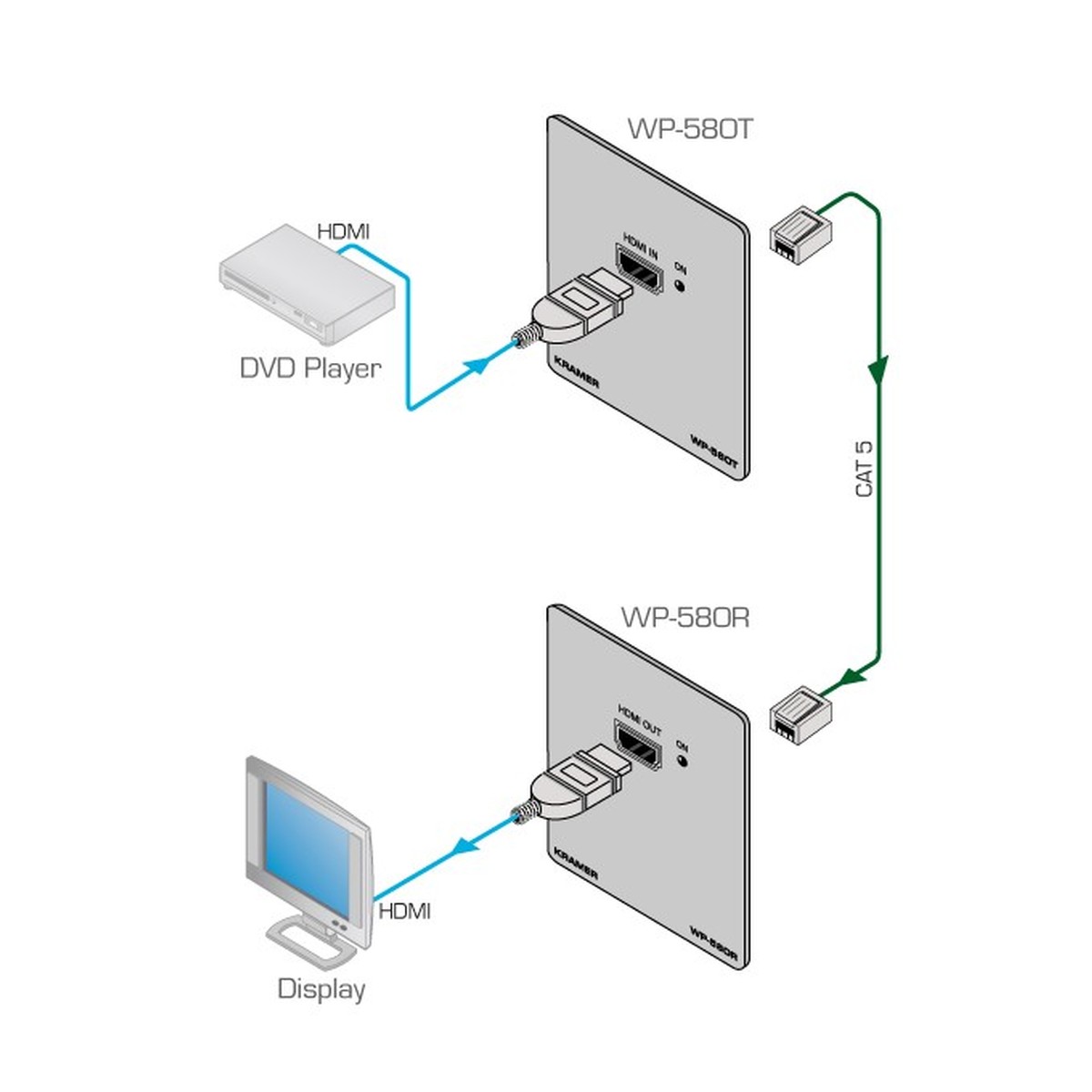

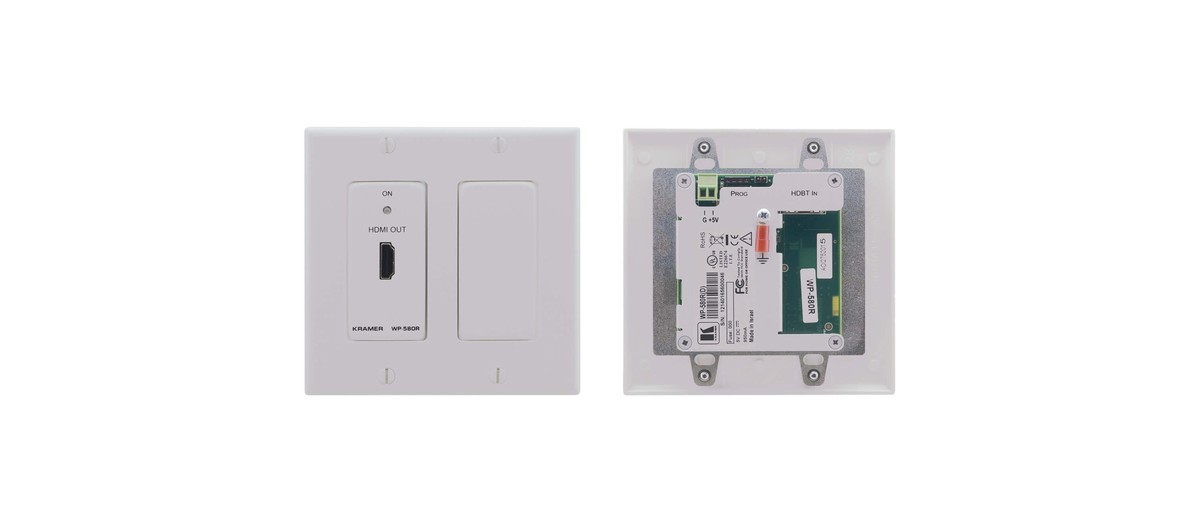

The Kramer WP-580R/D(W) is a 4K/60 UHD (4:2:0) HDMI decora wall plate with a single HDMI connection that also has an integrated HDBaseT receiver. You input your HDMI connection and on the back of the wall plate it outputs your signal over a twisted pair cable that can reach a distance of up to 230'. The WP-580R/D(W) is HDCP compliant, supports resolutions up to 4K 4:2:0, and features 3D and EDID pass through. Applications for this Wall Plate include projection systems in conference rooms, boardrooms, auditoriums, hotels, and production studios.
Specifications
- Bandwidth: 10.2Gpbs (3.4Gbps per graphic channel)
- 3D Pass-Through
- Dimensions: 2 gang
- Includes: Power supply and face plate
- Weight: 1.4lbs
- Warranty: 7 years
