 Home > Format Converters -> DVI to VGA -> Kramer AV -> VP-506 DVI & XGA Video Scan Converter

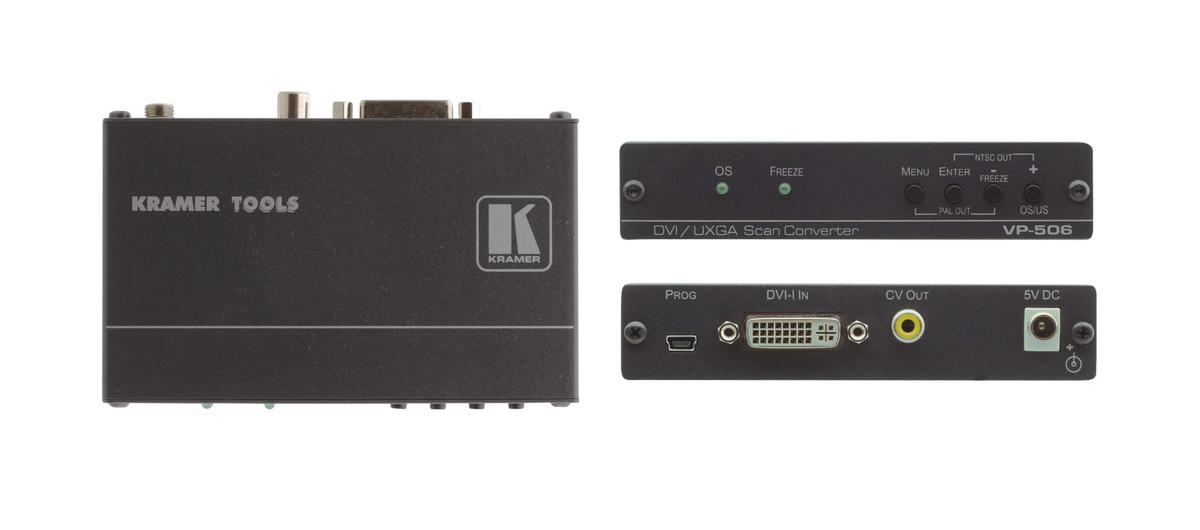

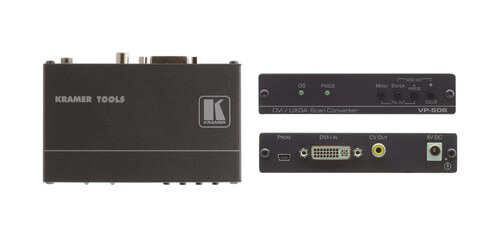

Kramer AV VP-506
DVI & XGA Video Scan Converter

Manufacturer SKU: 70-0121090
This product has been discontinued

For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top VP-506 Specifications
  • Input: 1 DVII (DVID, VGA, YPbPr) on 24pin Molex connector
  • Output: 1 composite video, 1Vpp/75 on an RCA connector
  • Selectable Video Standards: PAL or NTSC Output
  • Max. Resolutions: up to UXGA & 1080p
"Custom Equipment w/ quick turnaround. CERTIFIED FRESH!"
Contact a product specialist!
Proudly supporting our customers since 2008

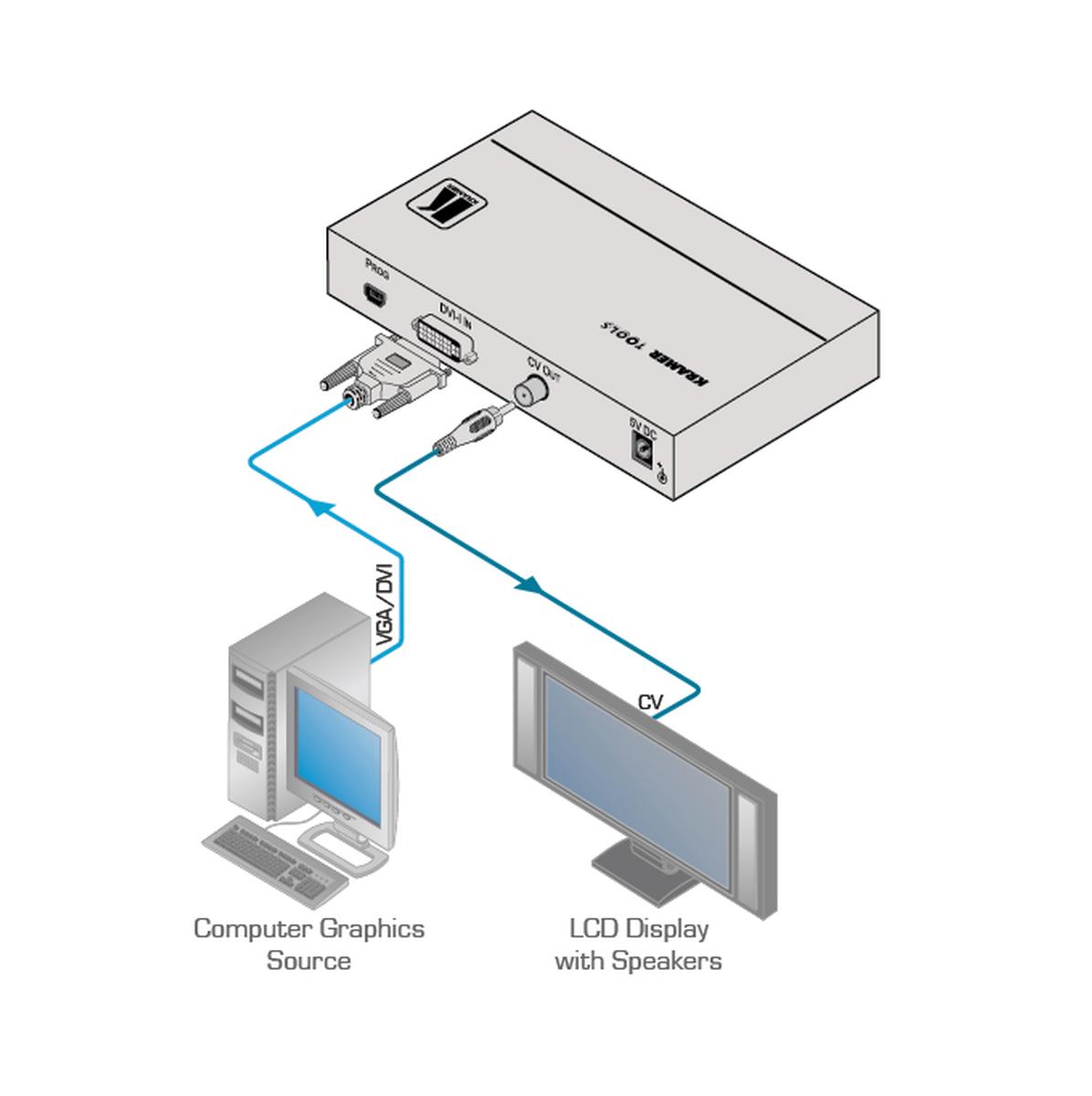

Kramer's VP-506 is a quality scan converter for down-scaling DVI, computer graphics (VGA) and component video (YPbPr) to PAL or NTSC video. This is a great device for any application which requires conversion of high-quality DVI data signals to video (PAL or NTSC) signals. The scan converter will support VGA resolutions up to UXGA, as well as component resolutions up to 1080p. Standard features include a built-in ProcAmp for color, sharpness, contrast, and brightness controls as well as freeze, underscan/overscan control options. Memory Locations will save and recall up to four setups, including picture setup, input setup, output setup, and zoom. The VP-506 also has a very user-friendly front panel buttons for easy control of ProcAmp functions, flicker-reduction, image optimization, and one-touch freezing. This device is typically used in multimedia, board rooms, and video conferencing applications. Comes backed by Kramer's 7 year warranty.



  • HDTV Compatible
  • Controls: Front Panel and OSD (on screen display)
  • Built-In ProcAmp Features: freeze, underscan/overscan, 8 color bars, color, contrast, sharpness, brightness
  • Memory Locations: Saves/Recalls up to 4 setups Including: picture, input, output, zoom and advanced feature setups
  • Power Consumption: 5V DC / 540mA
  • Included Accessories: Power Supply & Mounting Bracket
  • Compatible Rack Adapter: RK-3T 19" (optional)
  • Dimensions: 4.72" x 2.81" x 0.96" (W, D, H)
  • Weight: 0.4lbs
  • Warranty: 7 Years
