 Home > Range Extenders -> Cat-5 Transmitters -> VGA and Audio -> Kramer AV -> TP-104HD 1:4 XGA & HDTV over Twisted Pair Transmitter

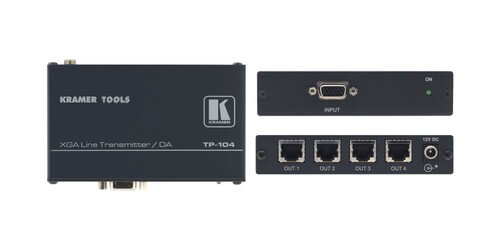

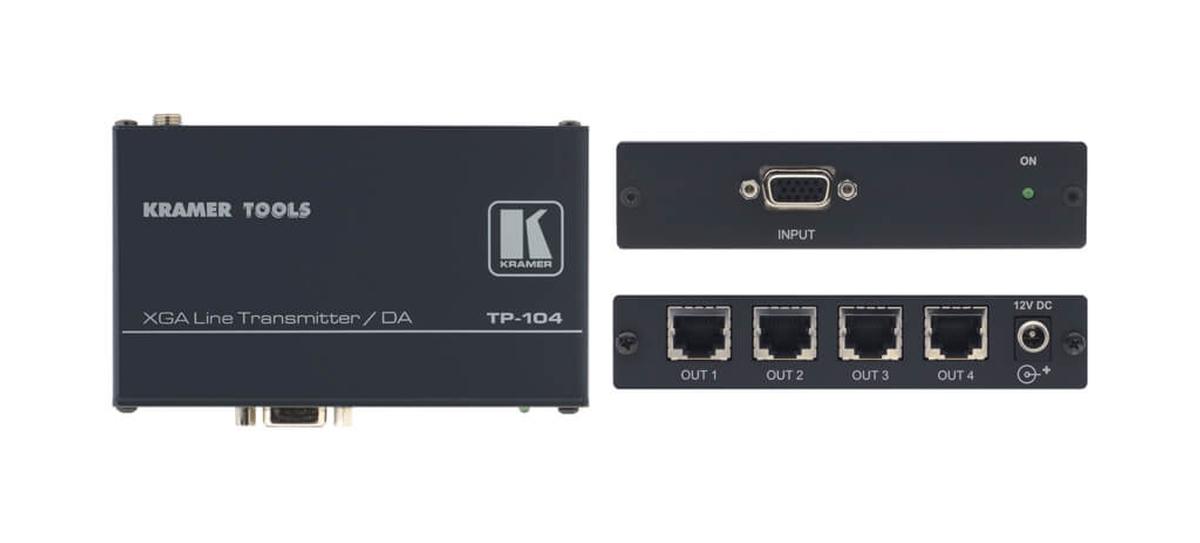

Kramer AV TP-104HD
1:4 XGA & HDTV over Twisted Pair Transmitter

Manufacturer SKU: 90-7187090
This product has been discontinued

For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top TP-104HD Specifications
  • Range: up to 320'
  • Max. Resolutions: WUXGA and 1080P
  • Input: 1 UXGA on a 15 pin HD connector
  • Outputs: 4 twisted pair on RJ-45 connectors
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008

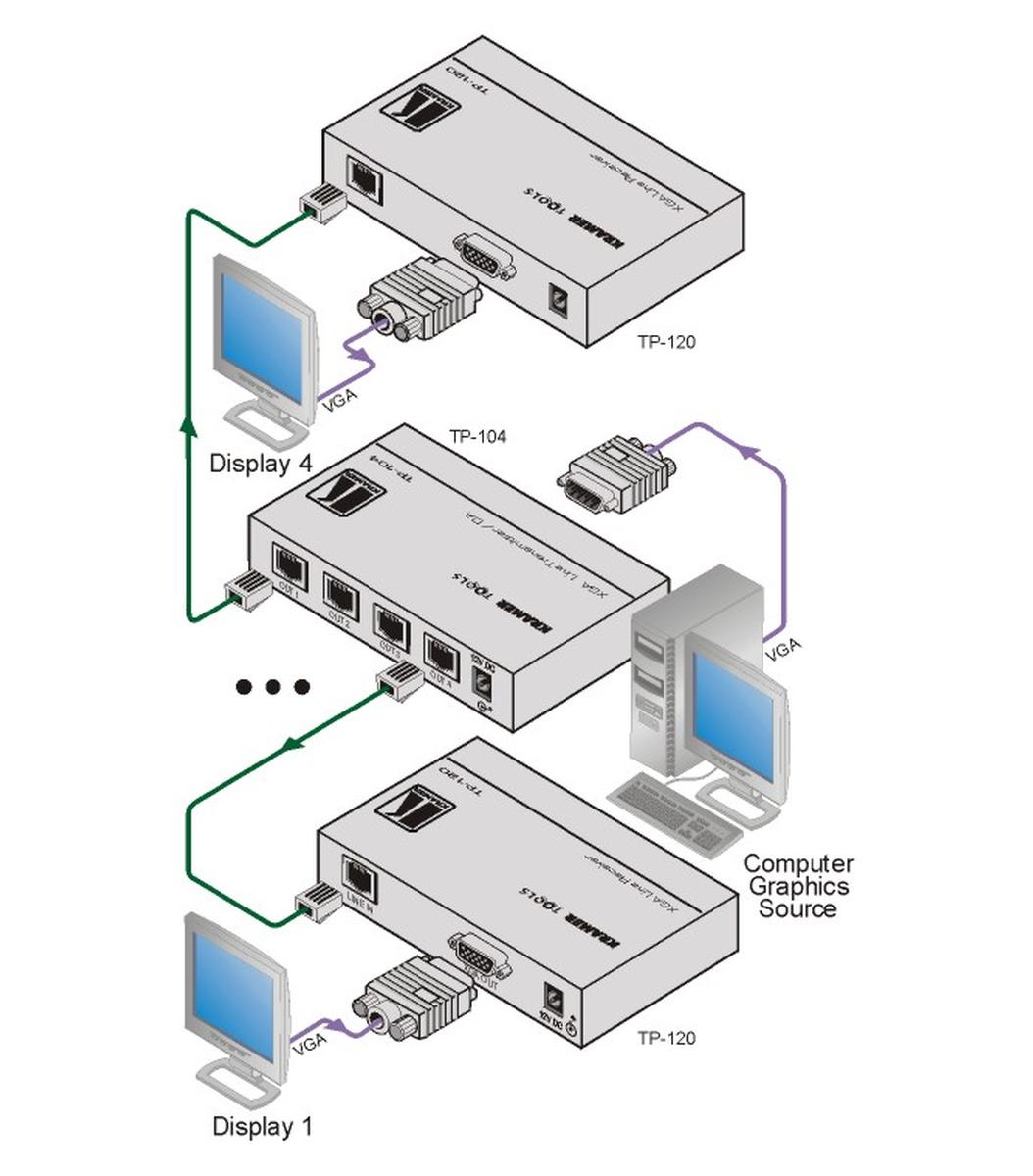

Kramer's TP-104HD is a twisted pair high-performance transmitter for computer graphics video and HDTV signals. This device works by converting a computer graphics video or HDTV signal on a 15-pin HD connector to four identical twisted pair signals. With a high resolution up to WUXGA and 1080p this device is primarily used in long range graphics distribution presentation and multimedia applications for example, schools, hospitals, security, and stores. For longer runs this transmitter has a range of up to 320' using a UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5. This device also features a Power Connect System which when the transmitter and receiver are within a 150' of one another a single connection to either device can power both units. This device does comes with its one power supply for use on runs more than 150'. For improved HDTV compatibility with the CAT5 outputs there are Sync Polarity settings through H & V switches. The TP-104HD has a compact size so 3 units can be rack mounted side by side in a 1U rack space with an optional RK-3T rack adapter from Kramer. This product is also backed by a 7 year warranty.


  • HDTV compatible
  • Max. Output Level: 1.4Vpp
  • Power Connect System: 1 power source if both Tx/Rx are within 150'
  • H & V Sync Polarity Settings: Improves HDTV compatibility with CAT5
  • Cable Type: UTP or STP such as CAT 5
  • Coupling: AC
  • Power Consumption: 12V DC
  • Included Accessories: Power Supply
  • Optional Accessories: Kramer RK-3T 19" rack adapter
  • Warranty: 7 Years
