Key Digital KD-Pro8x8D
8x8 4K POH/HDBT/HDMI Matrix Switcher, Integrated Audio
- Technical Specifications
- Input: 1 HDMI Connector, Type A, 19 Pin Female
- Output: 1 HDMI Connector, Type A, 19 Pin Female, 1 HDBaseT, CAT5e/6 on RJ45 connector, 6-Pin Terminal Block for Analog L/R Output, RCA Jack for Digital Audio Output
- Control I/O (Each): 6-Pin Terminal Block configured as IR or RS-232 with variable voltage levels from +0.1V to +12V or as or Voltage Trigger fixed to +5V

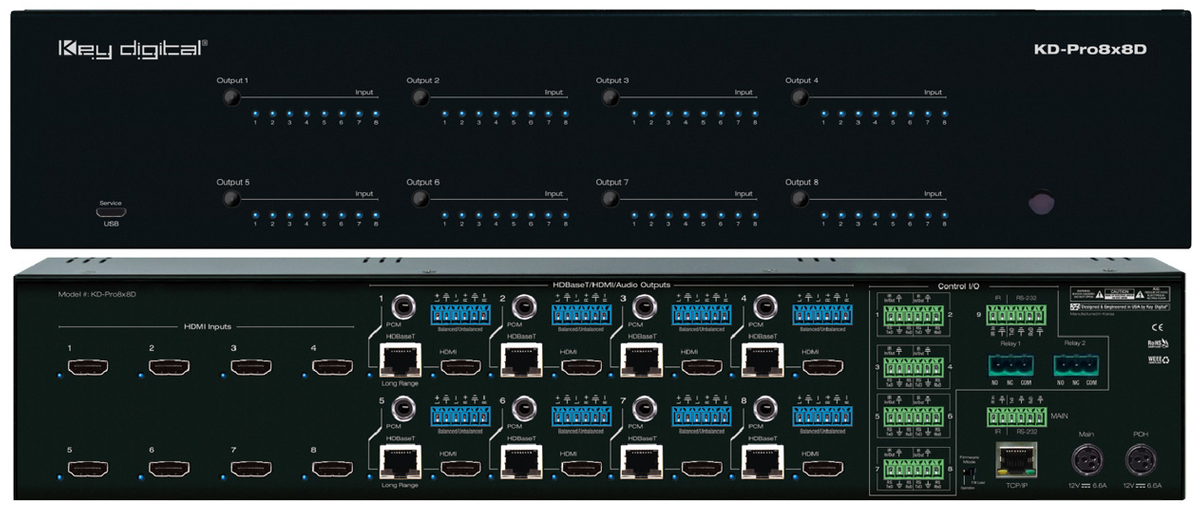

Key Digital's KD-Pro8x8D is a power over HDBaseT-enabled matrix swticher, compatible with both HDMI and HDBaseT features, including ARC. This matrix switcher also features integrated audio, digital coaxial audio, and DSP de-embedding analog balanced/unbalanced signals. The KD-Pro8x8D comes with 8 receiver extenders: 2 long-range extenders and 6 short-range extenders. The included long-range extenders extend 1080p signals up to 500 feet over Cat5e/6 cables. The short-range extenders can send 4K/Ultra HD signals 125 feet, and it can also sent 1080p signals up to 200 feet.

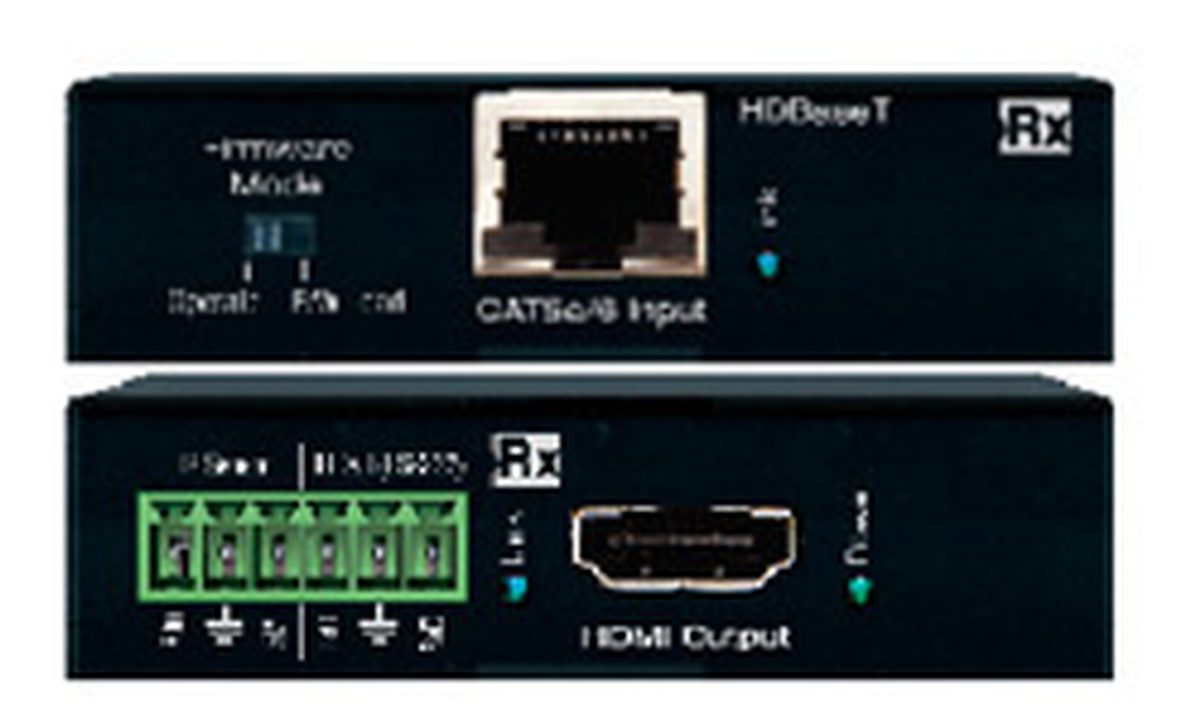

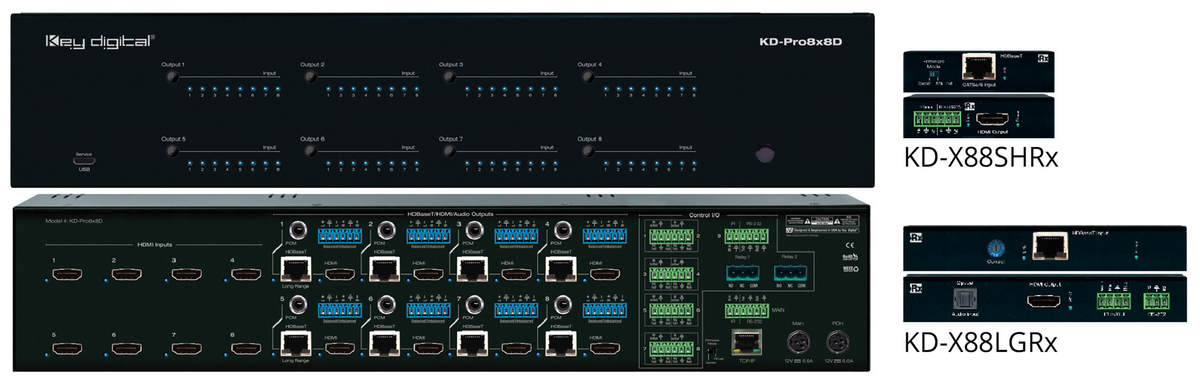

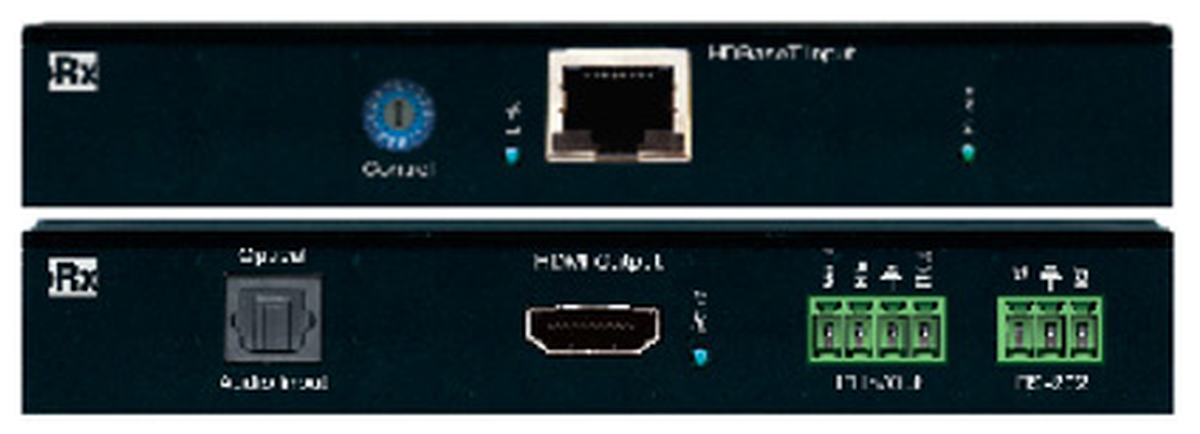

The KD-Pro8x8D ships with 6 short-range receivers (KD-X88SHRx), 2 long-range receviers (KD-X88LGRx), 2 external power supplies (12V/80W for powering the matrix and power over HDBaseT receiver units), an IR remote control, 6 feet of USB-A to micro-USB cables, 8 IR emitters, and rack mount ears for simple installation.
- Relay: Configurable to NO (active), or NC (inactive) with 12A / 250VAC resistive switching capacity
- TCP/IP: Supports 10/100BaseT up to 100Mbps
- Video Bandwidth: TMDS bandwidth 10.2 Gbps
- Link: Single Link
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- DDC Communication: EDID and HDCP Bi-directional buffering to Display and Source Wired IR: modulated IR signal input, 0-5V TTL or -10to +10V
- Power Specifications
- Matrix: +12V/6.6A (80W)
- HDBaseT: +12V/6.6A (80W)
- General Specifications:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black metal
- Rack Mount: 2U, full rack-width (rack ears included)
- Product: 17.3" x 6.6" x 3.46"
- Weight: 6.5 lbs
- Packaging: 18.8" x 10.7" x 9.5"
- Weight: 16 lbs
- Warranty: 3 years
