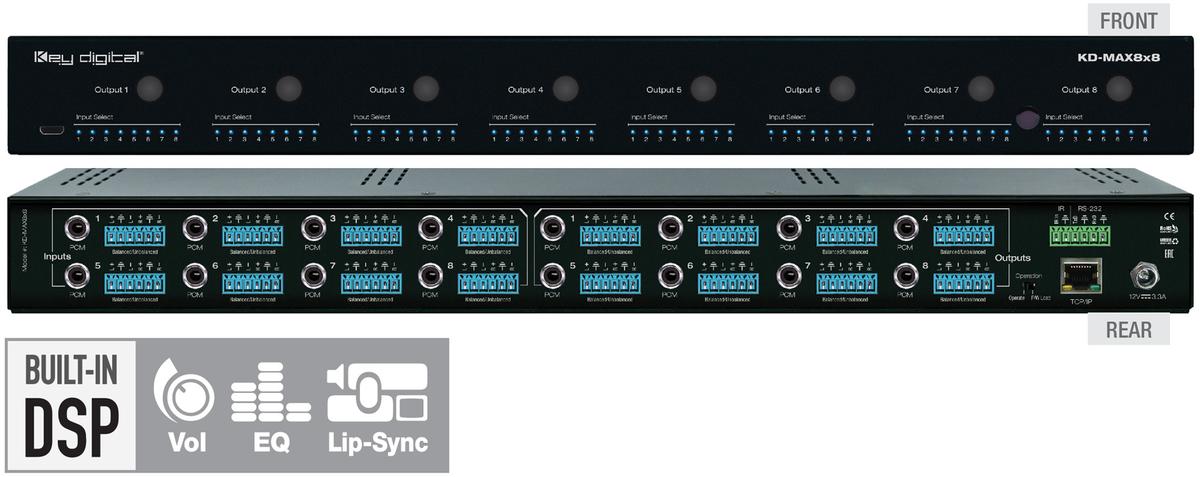

Key Digital KD-MAX8x8
8x8 Audio Matrix Switcher with Built-in Audio DSP
Part #: KD-MAX8x8
This product has been discontinued
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top KD-MAX8x8 Specifications
- Input (each): Balanced/unbalanced line level audio on 6-pin terminal block. Accepts 2VRMS line audio input with a sampling rate of 48KHz
- Input (each): RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
- Output (each): Balanced/unbalanced line level audio on 6-pin terminal block. Drives 2VRMS line audio input with a sampling rate of 48KHz
- Output (each): RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
Key Digital created a high-performance 8x8 audio matrix switcher featuring built-in audio DSP. Built-in audio DSP provides variable sound level settings for volume, muting, 3-band EQ, balance, and lip-sync delay per balanced output. Thanks to Dolby and DTS surround, you get a fully lossless compressed digital audio experience. Balanced audio connection enables longer cable runs, so you can send signals as far as 1,000 feet.
The KD-MAX8x8 specializes in multi-format multiplexing, enabling the following conversions:
- Analog to Analog Matrix with DSP
- Digital to Analog Matrix with DSP
- Digital to Digital Matrix
- Analog to Digital Matrix
Key Digital keeps flexibility in mind and developed expansion configurations that allow users to expand their system using multiple units. The KD-MAX8x8 enables the following configurations:
- Up to 8 sources/inputs with up to 64 outputs
- Up to 16 sources/inputs with up to 64 outputs
- Up to 24 sources/inputs with up to 32 outputs
- Up to 32 sources/inputs with up to 32 outputs
Specifications
- Regulation: CE, RoHS, WEEE
- Rack Mount: 1U, 1 Rack Width (rack ears included)
- Enclosure: Black Metal
- Product Dimensions: 17.5" x 7" x 1.75"
- Shipping Carton Dimensions: 23.5" x 11" x 4.5"
- Product Weight: 6 lb
- Shipping Weight: 9 lb.
- Warranty: Limited 3 year
