HuddleCamHD HC-JOY-G3
3-Axis RS-232 Joystick Controller: Pan, Tilt, Zoom - 255 Cameras
Part #: HC-JOY-G3
This product has been discontinued
Suggested Replacement:
Top HC-JOY-G3 Specifications
- Cameras: Up to 255
- Presets: 255
- 3-Axis Joystick
- Distance: Up to 3,937' over Cat5
"Online ordering was very easy and the automated emails kept me up to date on status of the order until delivery"
Contact a product specialist!
Proudly supporting our customers since 2008
Description

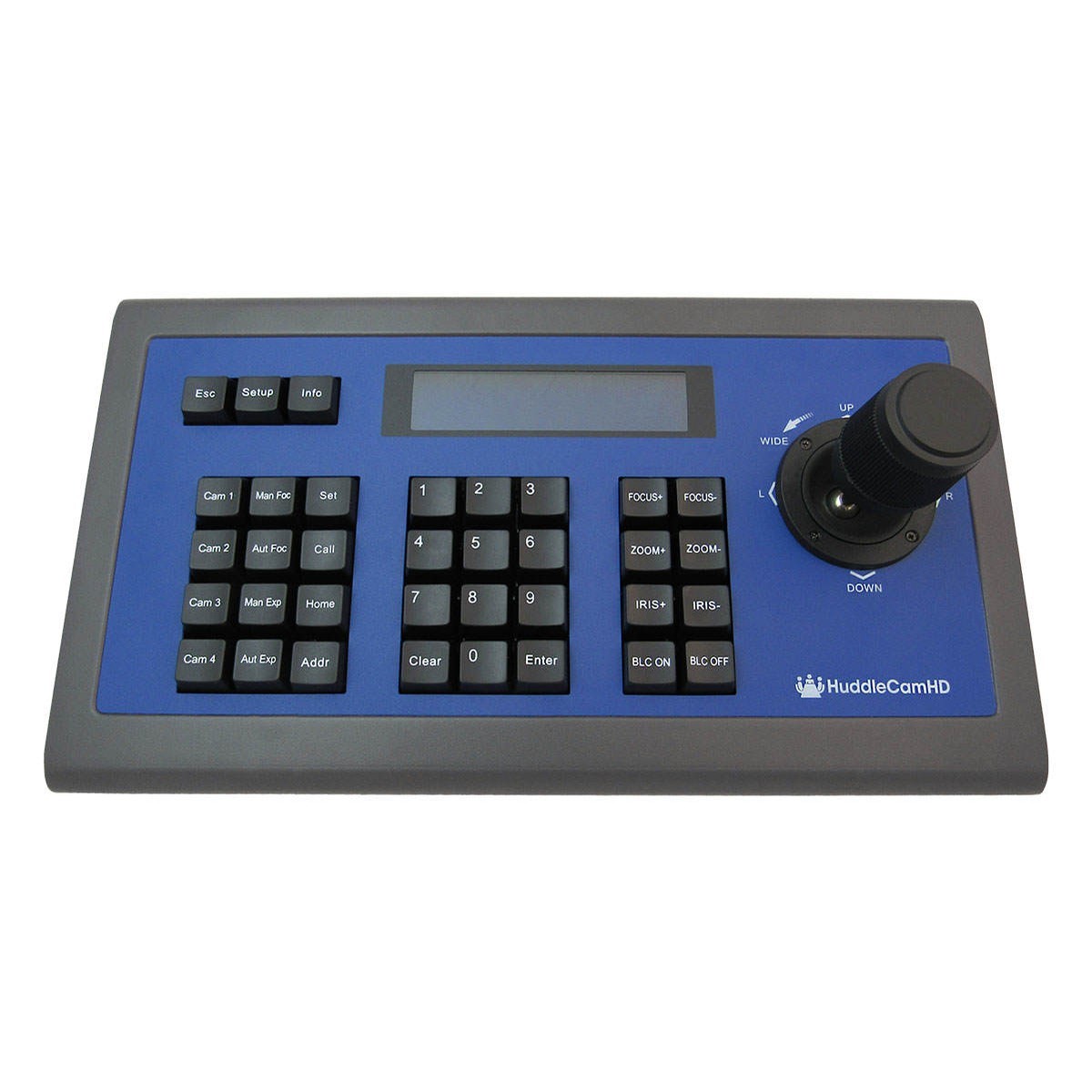

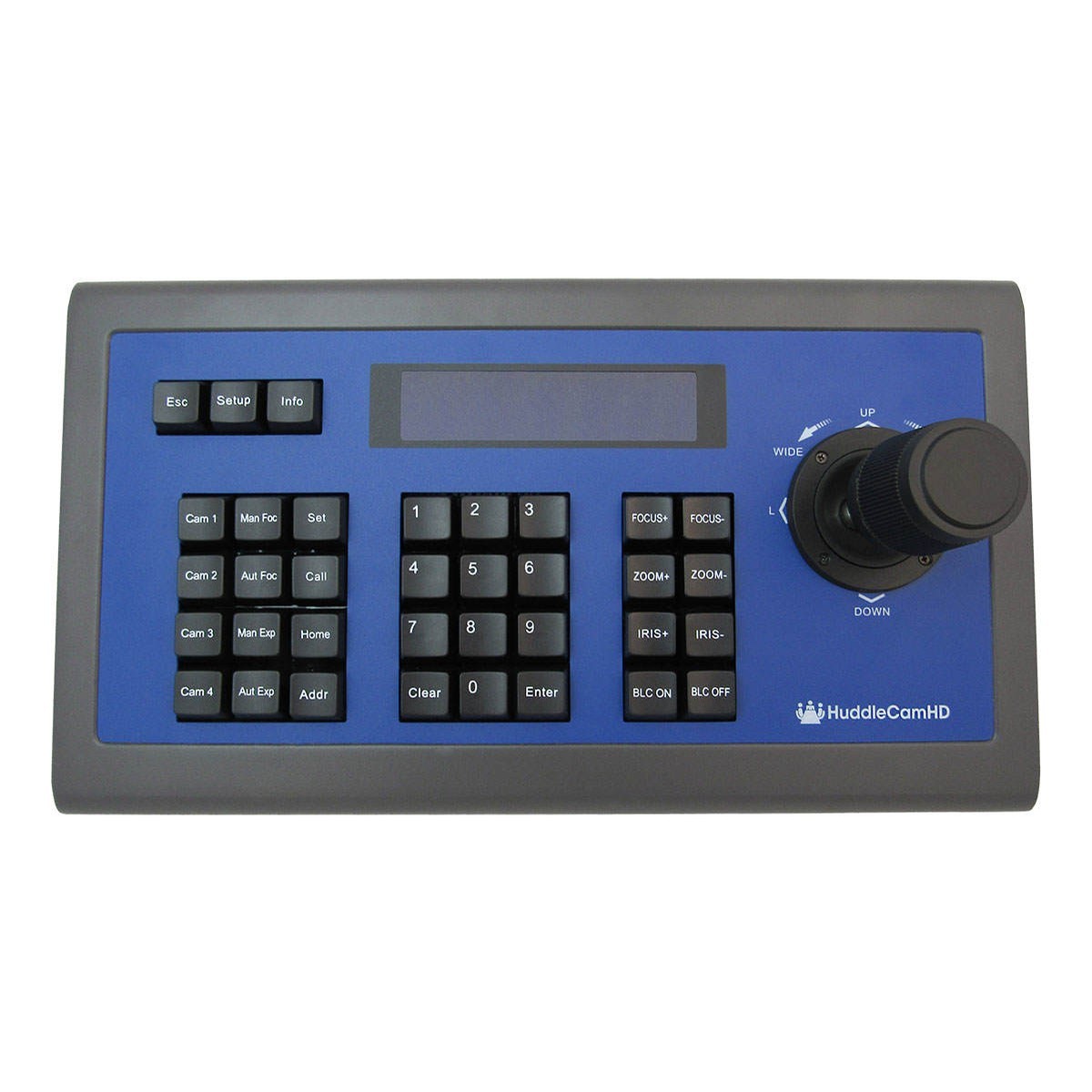

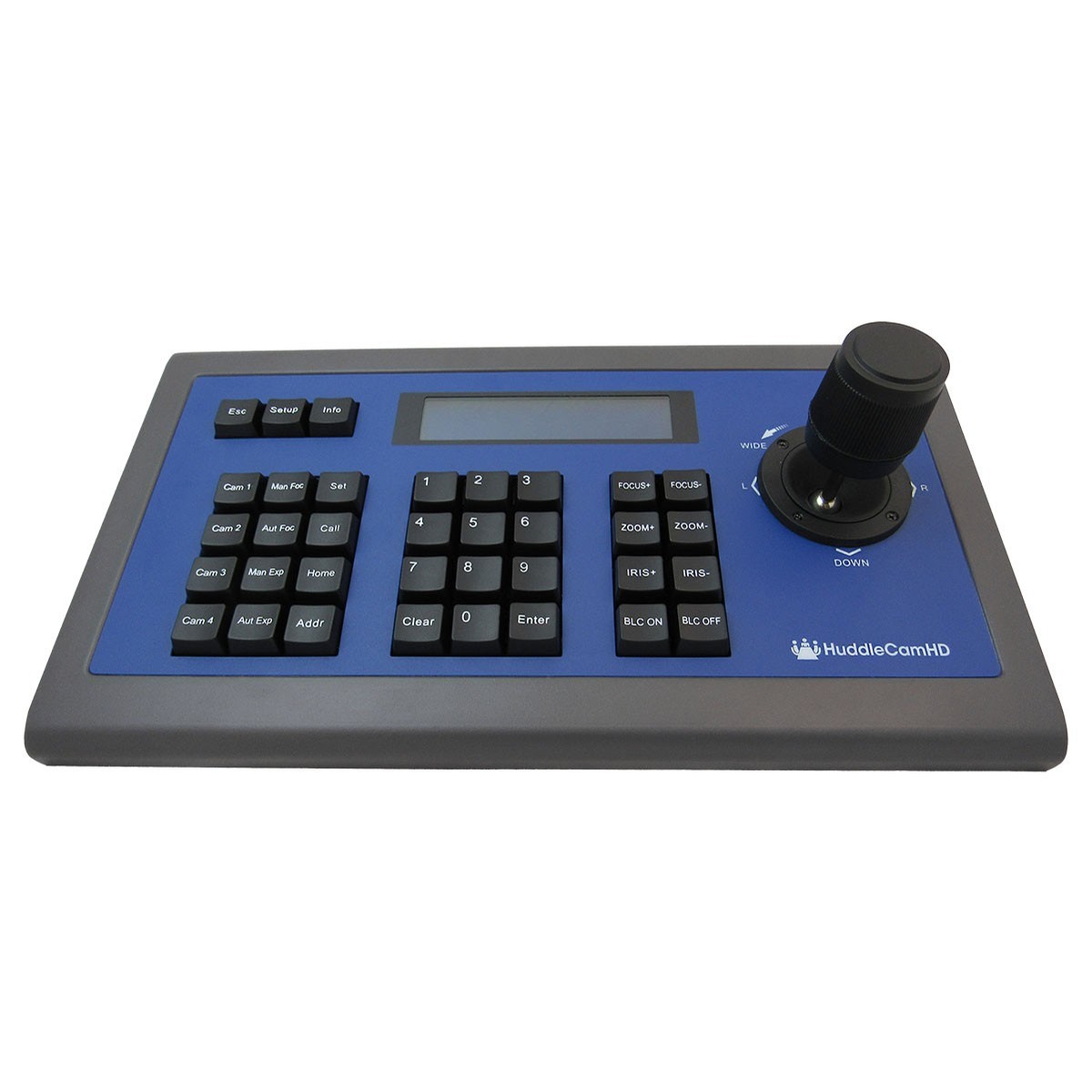

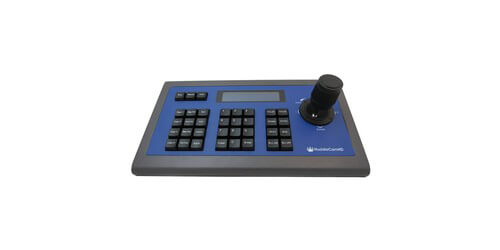

The HuddleCamHD HC-JOY-G3 is an easy to use joystick controller for your RS-232 VISCA protocol cameras, up to 255. The controller offers variable pan, tilt, and zoom with your choice of 255 presets and 4 camera quick select buttons. The joysticks can also twist to control focus and zoom, all this while the easy to read LCD screen gives instant visual status feedback. The HC-JOY-G3 is an affordable solution if you need to control several cameras from a remote location.
Specifications
- Control: Variable speed PTZ, iris, focus
- Camera switching hot keys
- Supports: VISCA, PELCO-D and PELCO-P
- Protocols: 3
- Baud rates: 1200-19200 bps

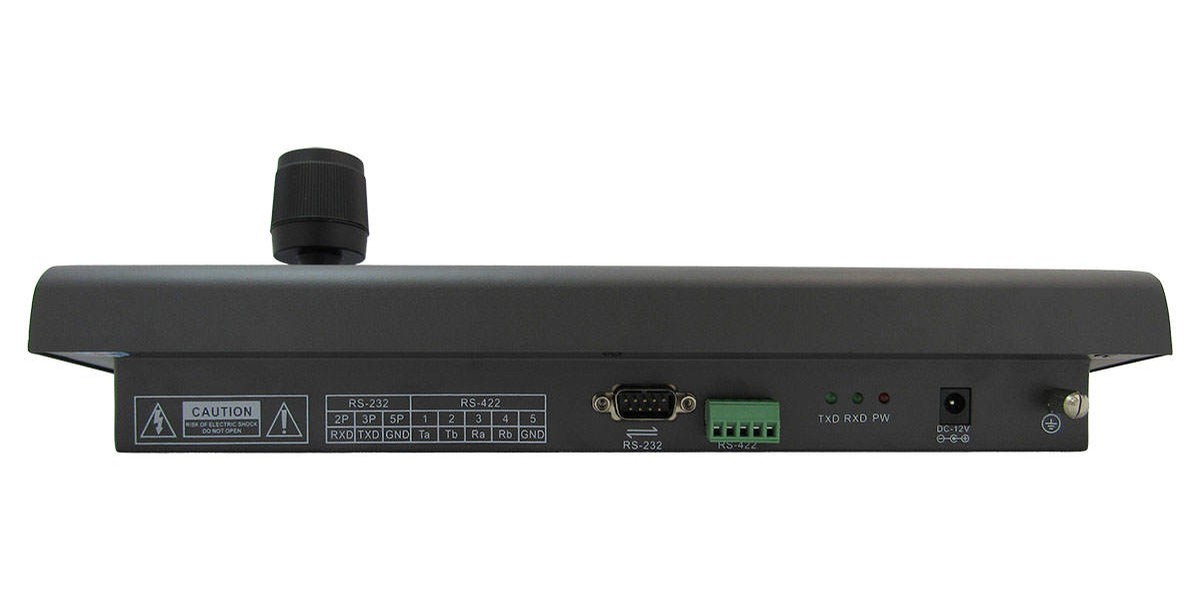

- Control: RS-232, RS-485, RS-422
- Dimensions: 12.6 (W) x 7.1 (D) x 4.3 (H)
- Includes: Power supply, manual
- Weight: 3.4lbs
- Warranty: 2 years
