Hall Technologies PGA-VHD
VGA & HDMI 2.0a Test Pattern Generator - 4K60 4:4:4, HDCP 2.2
- Video Bandwidth: Single link 600 MHz (18 Gbps) HDMI and HDCP: HDMI 2.0a HDCP 1.4 and 2.2

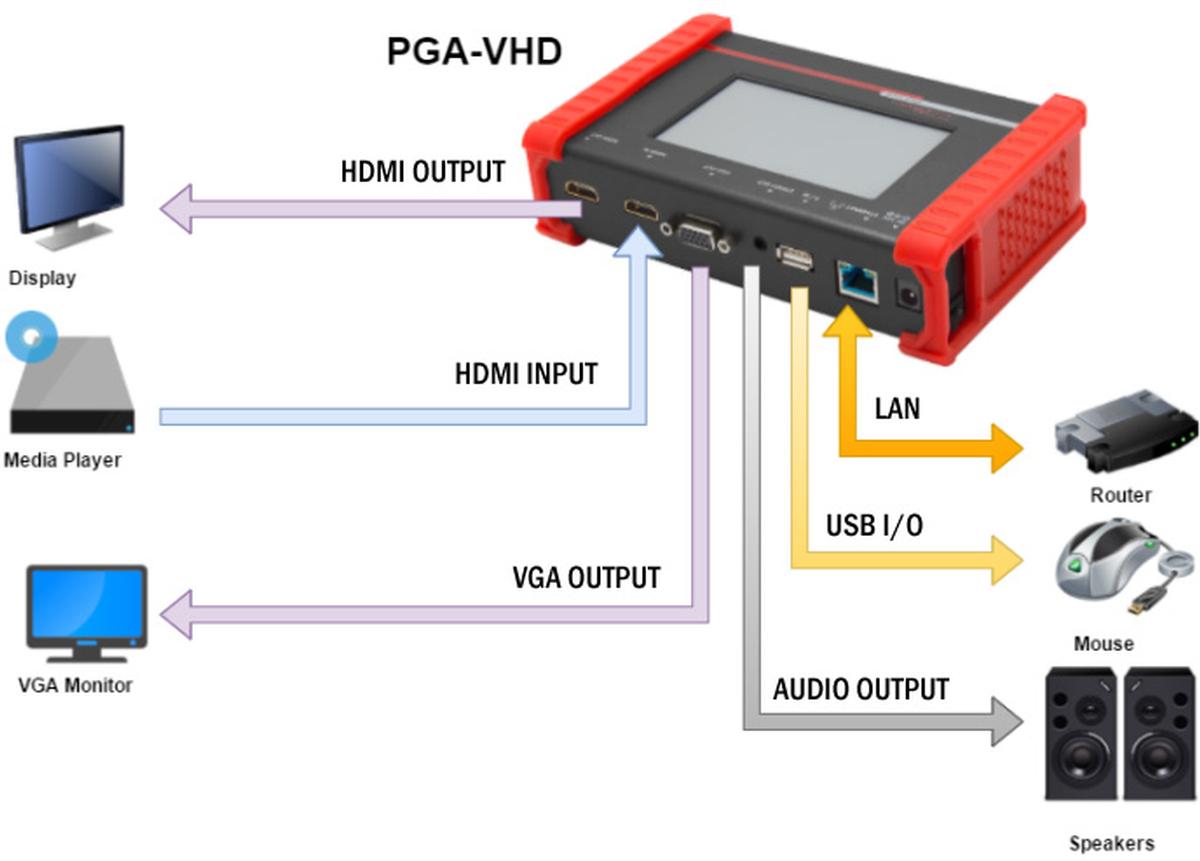

- Inputs: 1 x HDMI, 1 x USB, 1 x RJ45
- Output Ports:1 x HDMI, 1 x VGA, 1 x 3.5 mm
- Video Resolution Support: Up to 4K60 4:4:4 8 bit , 4K2K60 16 bit (HDR)
-Maciej Z.
Description

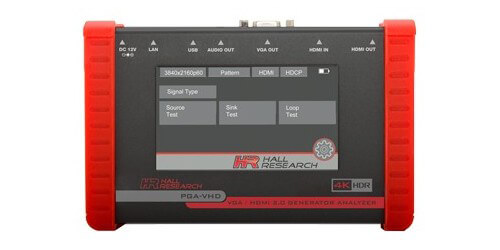

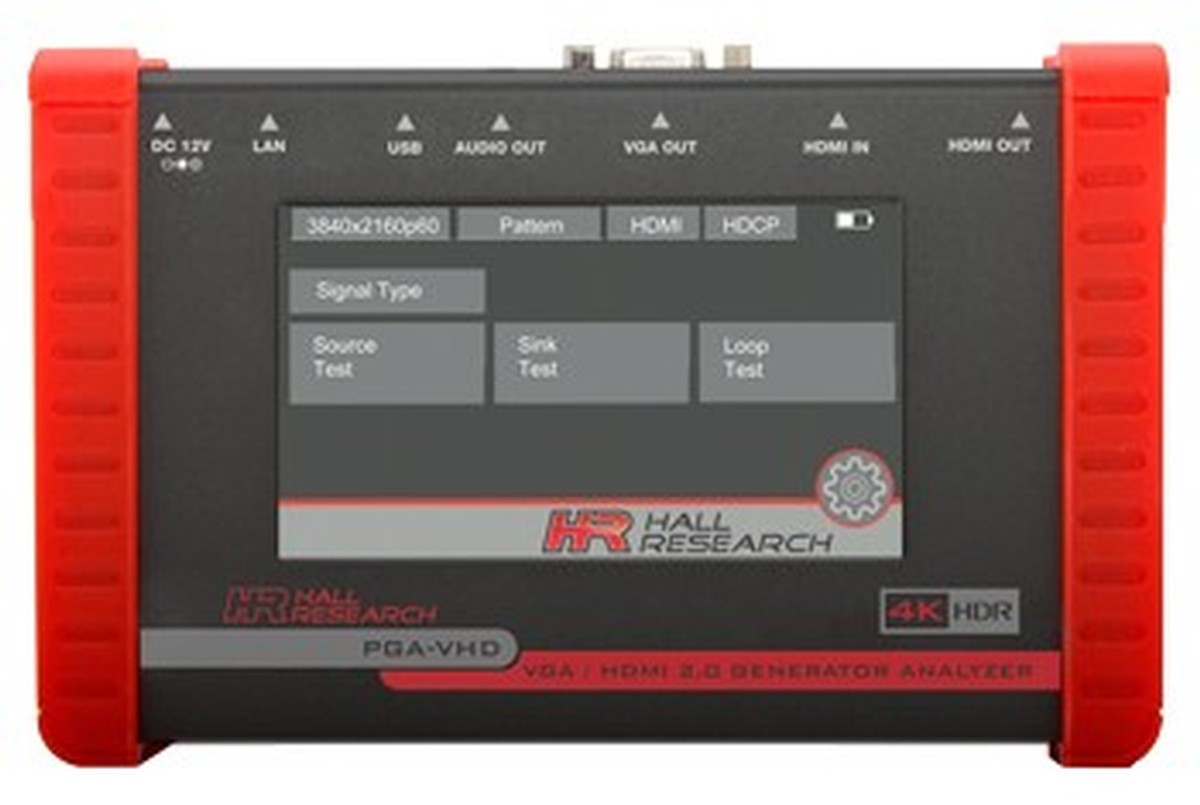

The Hall Research PGA-VHD is a high-performance VGA / HDMI battery operated (rechargeable) HDMI 2.0 / HDCP 2.2 test pattern generator. This device comes loaded with useful features and benefits. It has the ability to act as an HDMI monitor that supports resolutions all the way up to 4K60 UHD 4:4:4, making this an ideal solution for signal verification and troubleshooting during installations. Additionally when configured as a Test Pattern Generator it can provide both VGA and digital HDMI outputs supporting the latest in HDMI 2.0a compatibility with HDR (High Definition Resolution). There is an audio output provided for up to 8-channel @ 192K, as well as output video patterns with adjustable timer and moving squares. This unit boasts up to 18Gbps of bandwidth and has the ability to output both HDMI and VGA simultaneously.
Being a must-have tool for every installer or system integrator the analyzer can perform system level "loop test" acting as both source and sink to test repeaters, extenders and cables. It comes with a universal power supply but is also battery-powered that can work up to 4 hours continuously on a single charge. Various tests such as HDCP and EDID are also provided. Additionally this device will support Ethernet TCP/IP device control, user defined pattern up to 2GB, HDMI loop through function for testing cable stability, and Scrambler support for videos over 340 Mhz.
Specifications
- Audio:8 Channel LPCM up to 192K
- USB: USB 2.0
- High Dynamic Range Video with HDR 10 support
- 4.3" ease of use touch panel with brightness control
- Control: USB mouse/ Touch Panel/ Ethernet
- ESD Protection: Human body model - 15kV [air-gap discharge] & 8kV [contact discharge]
- Battery operation time up to 4 hours under full load
- 2 hour recharge time
- Power Supply: 12V 5A DC/ Battery
- Power consumption: 15 W
- Housing: Metal Enclosure
- Dimensions (WxDxH): 6.8" x 4.49" x 1.97"
- Case Dimensions (WxDxH): 15.35" x 12.4" x 4.33"
- Weight: Net: 1.6lbs / Package: 6lbs

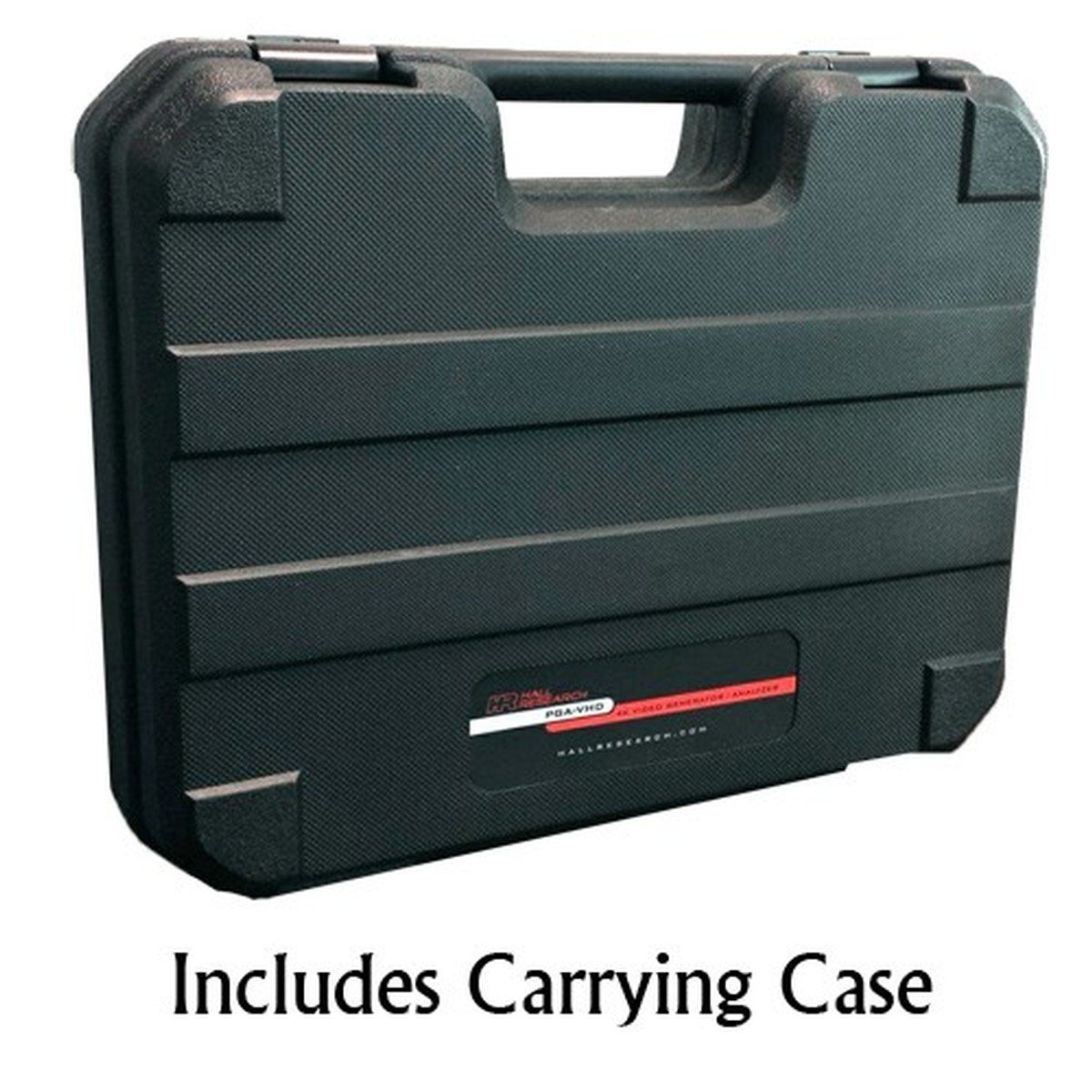

- Included Accessories: Carrying Case
- Warranty: 3 Years
