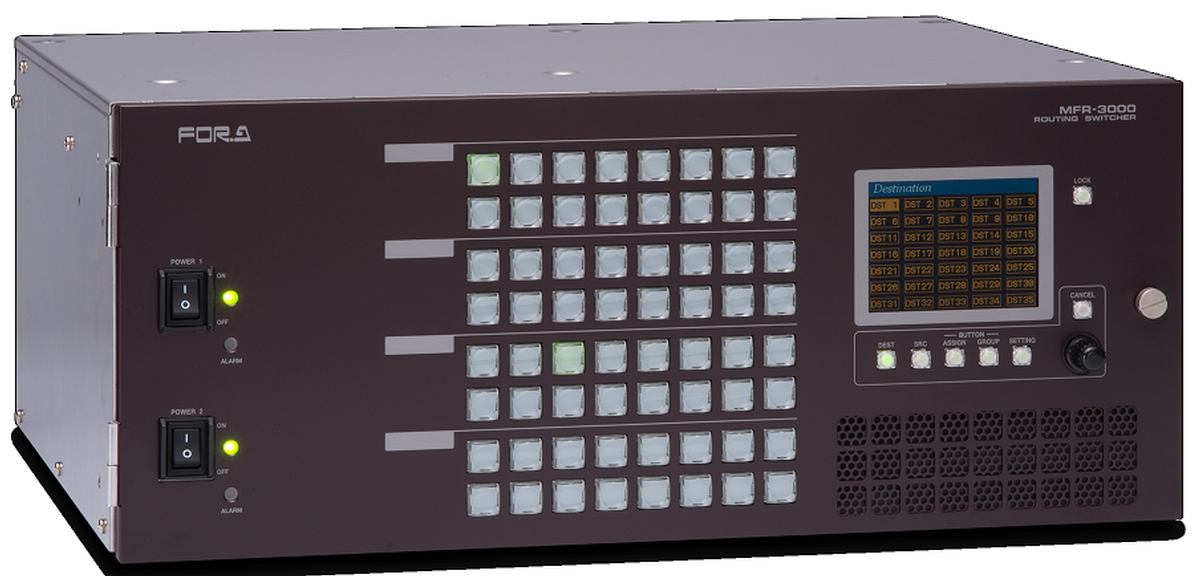

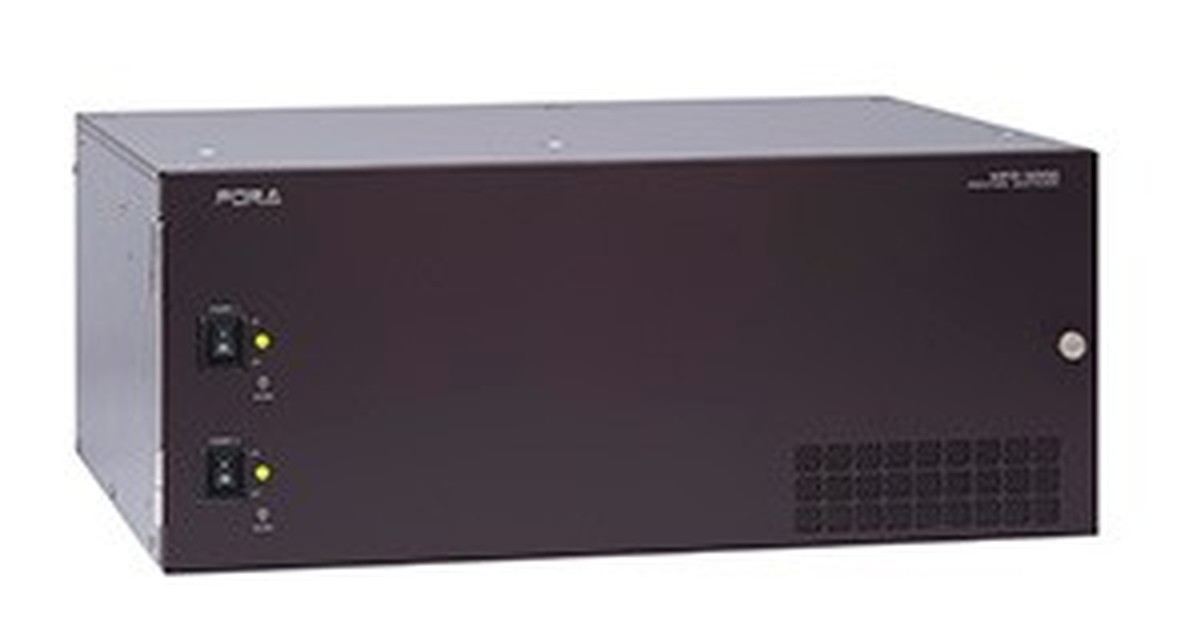

FOR-A MFR-3000
64x64 Modular Routing Switcher Enclosure - 3G-SDI
- Matrix Size: 64x64
- Optional Video Inputs
- MFR-8SDI
- MFR-8SDIGB
-Timothy J.
Description
Now featuring the MFR-3000 from FOR-A, a highly flexibile, built for versatility Routing Switcher Enclosure. Being designed for mission critical broadcast facilities, the MFR-3000 routing switcher can be expanded by eight inputs or outputs modules, up to a maximum of 64-input/64-output matrix. Operators can also use up to four inputs and four outputs for 8K facilities, as well as 16 inputs and 16 outputs at 4K, making it an ideal selection for any growing facility.
The unit offers auto signal detection and provides standard support for 3G-SDI, HD-SDI, SD-SDI, and ASI input and output. FOR-A’s MFR-3000 offers outstanding redundancy to ensure continuous operation if problems arise. The unit provides a built-in Web server for immediate setup, eliminating the need to install software on external devices.
The routing switcher can be integrated into a SNMP monitoring system to oversee various operational states and to set system failure and recovery alerts. The MFR-3000 requires easy maintenance and offers versatile crosspoint control, interface expansion units, and connectivity with other products, such as FOR-A’s HVS-2000 video switcher for input expansion.
Specifications
- Input Cable Equalization
- 3G-HD-SDI: 100 m using 5C-FB or equivalent cable
- SD-SDI: 200 m using 5C-2V or equivalent cable
- Optional Video Outputs
- MFR-8SDO
- MFR-8SDOGB
- Dimensions: 482mmx177mmx350mm
- Weight: 18 kg
- Warranty: 1 year
