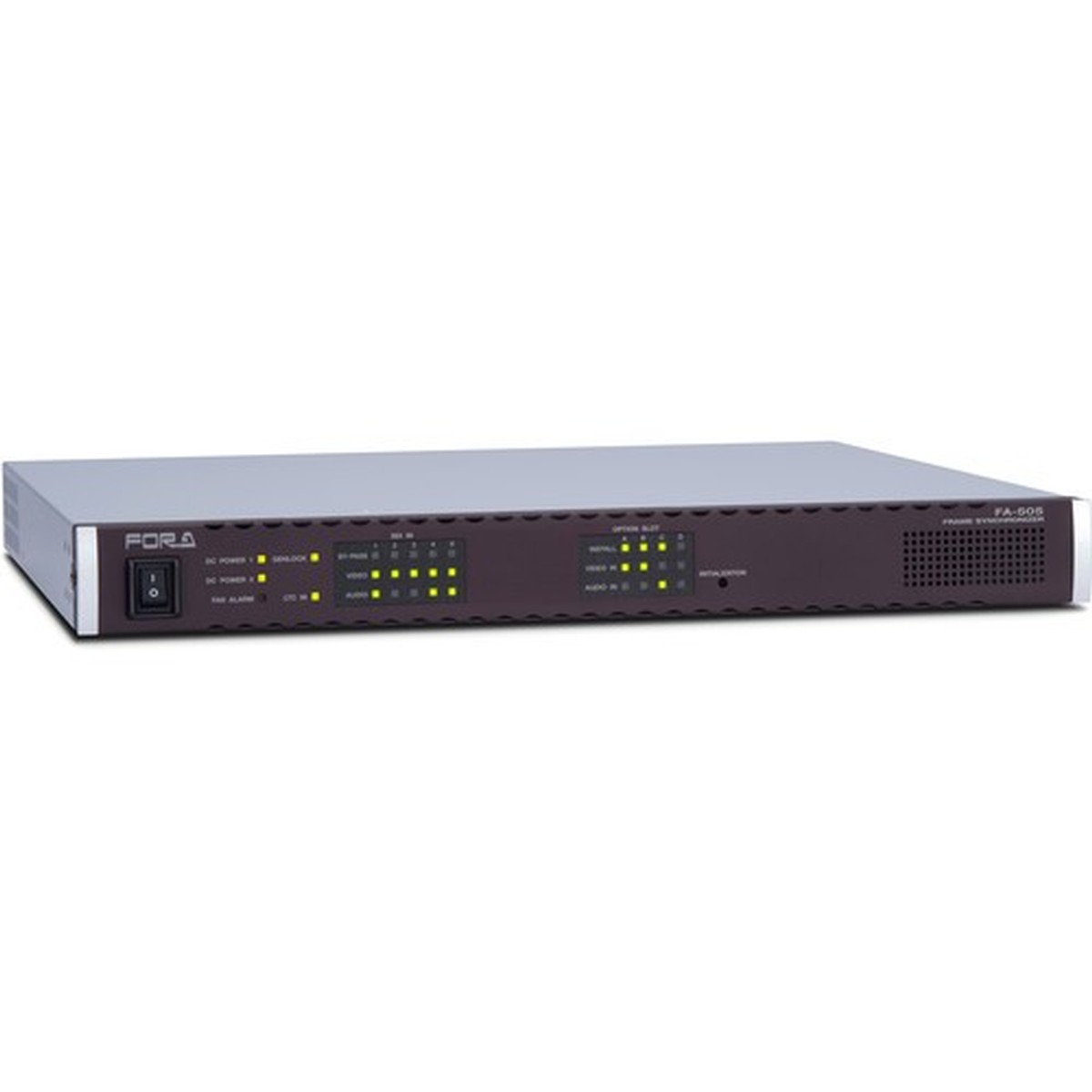

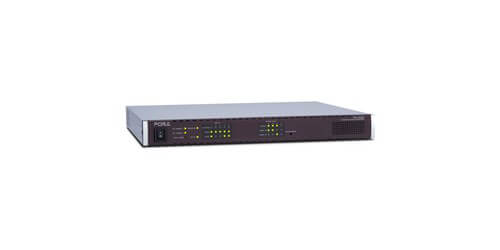

FOR-A FA-505
5-Channel Frame Synchronizer - Multi-Channel Signal Processor

Part #: FA-505
Satisfaction Guaranteed!
Need a price or product info? Complete and submit the below
Top FA-505 Specifications
  • Registration of Log Gamma curves for HDR (High Dynamic Range) processing
  • Conforms to ITU-R BT.2020 WCG(Wide Color Gamut) specifications
  • 4K 2SI signal support
  • Frame rate conversion function
"Love the products we've ordered- they've been awesome!"
Contact a product specialist!
Proudly supporting our customers since 2008

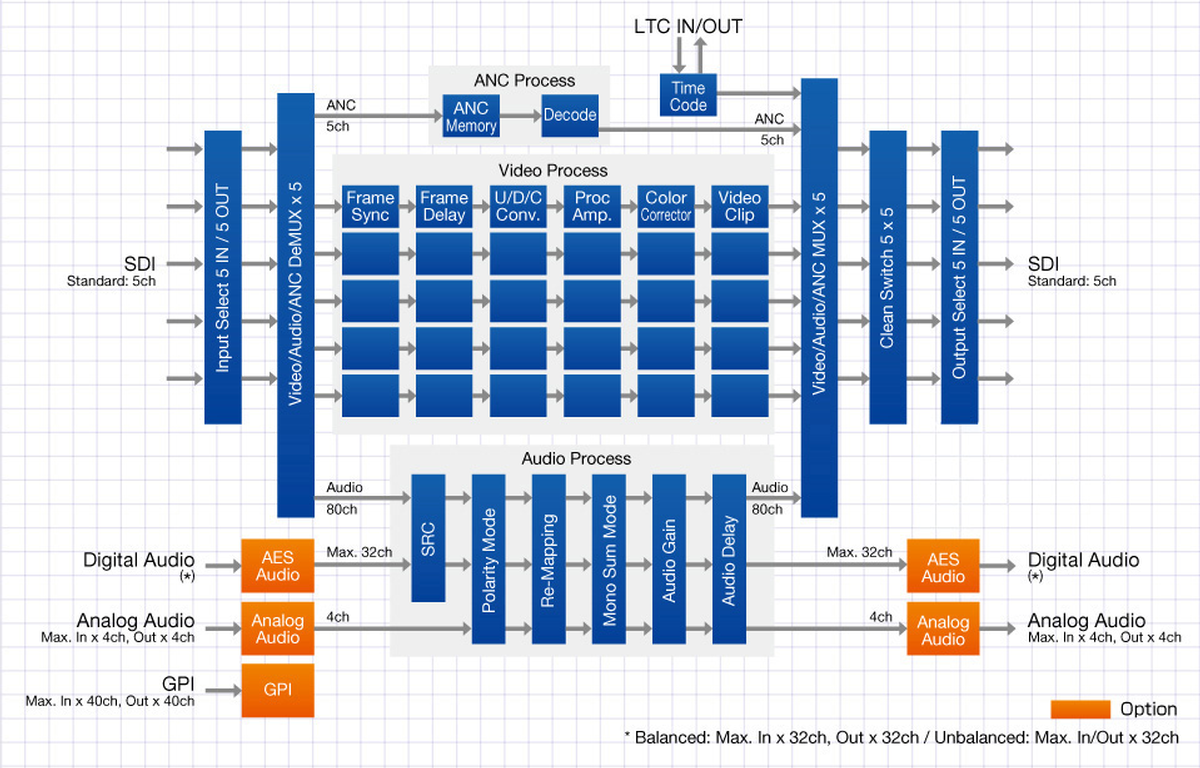

The FOR-A FA-505 is a frame synchronizer equipped with an array of essential functions used in video production and that allow multi-channel routing. The unit provides up/down/cross-conversion on each input and allows different conversion. Highly versatile audio signal processing capability with delay adjustment and remapping functions plus a sampling rate converter. Combining these varied features allows a single unit to provide optimal functionality for all video production scenes, including those used in transmission, outside broadcasting, news reporting, production, editing and distribution.


  • Low frame rate (23.98p, 30p) 4K camera signal now also supported.
  • Low frame rate (23.98p, 30p, etc.) 4K camera video output is now available.
  • Frame synchronizer
  • Proc. Amp.
  • Up/down/cross/aspect converter function available on each processing circuit. 3G, HD, and SD can be mutually inter-converted.
  • Color corrector standard on each channel
  • Clip function: Y/PB/PR and RGB
  • Selector functions on SDI input and output
  • Clean switch
  • Delay adjustment: The FA-505 comes equipped with a frame buffer that stores up to 8 frames
  • Input and output bypass
  • Time code inserter/generator
  • Test signal output
  • Event memory
  • SNMP
  • Distribution outputs: Each output of the FA-505 is capable of output distribution
  • Sixteen channels of embedded audio for each video line
  • Supports up to 112 channels with the addition of the optional audio card
  • Gain adjustment
  • Sampling rate conversion
  • Delay adjustment
  • Channel remapping
  • Down-mixing
  • Polarity reversal
  • Master mute
  • Test signal output
