Fresco 9 Video Wall Processor for 3x3 Video Wall - 4K HDMI

This product has been discontinued

Top AC-FRESCO-CAP-9 Specifications
  • HDMI 2.0(a/b)
  • 18Gbps Bandwidth Support
  • 4K60 4:4:4 Support
  • Ultimate HDR Support (HDR 10 & 12 Bit)
"Excellent and prompt call back from customer service!"
-Maciej Z.
Contact a product specialist!
Proudly supporting our customers since 2008

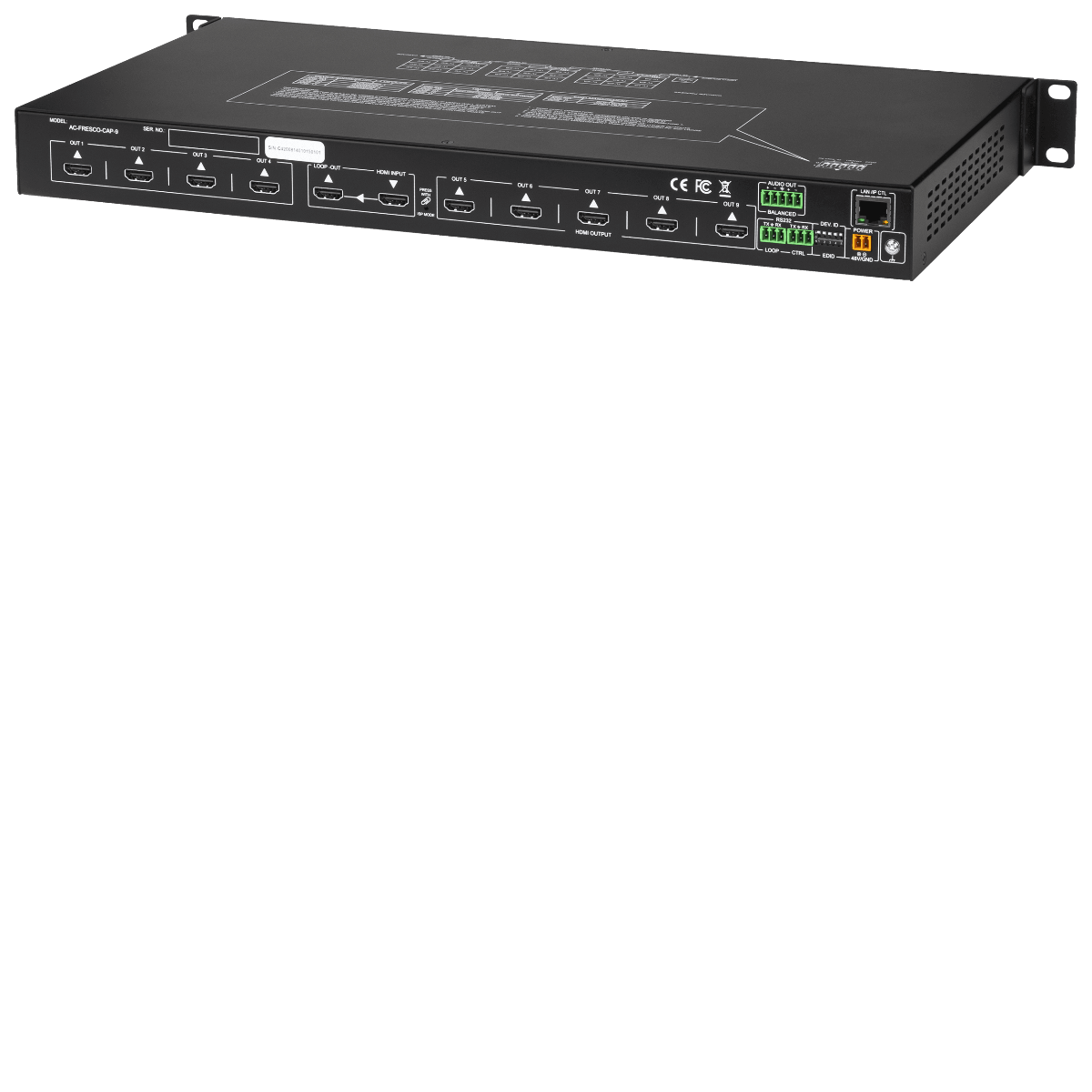

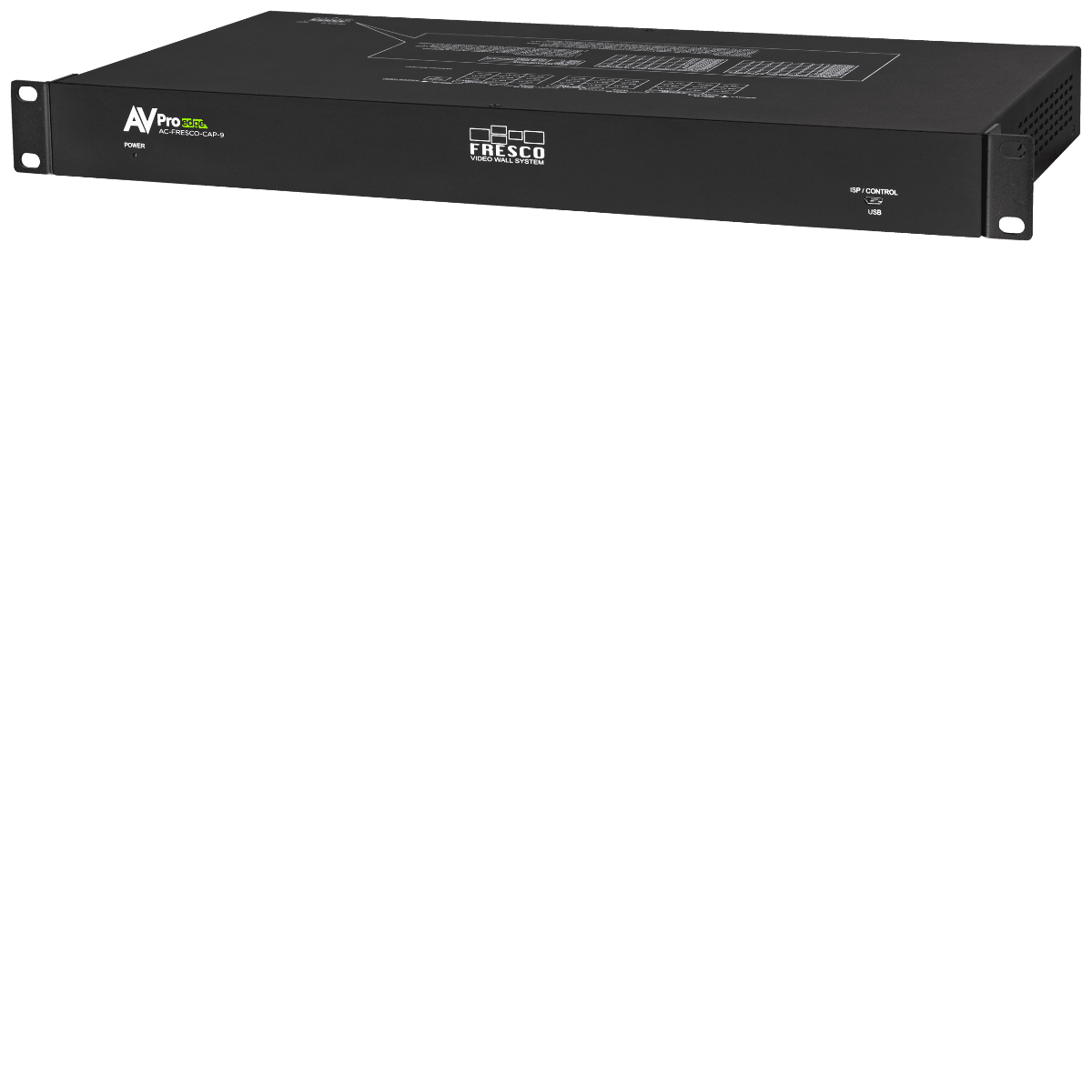

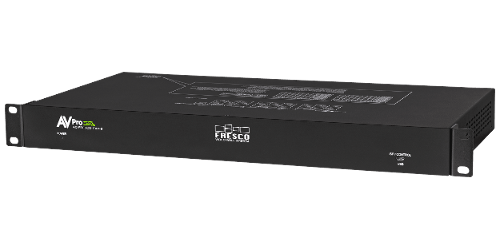

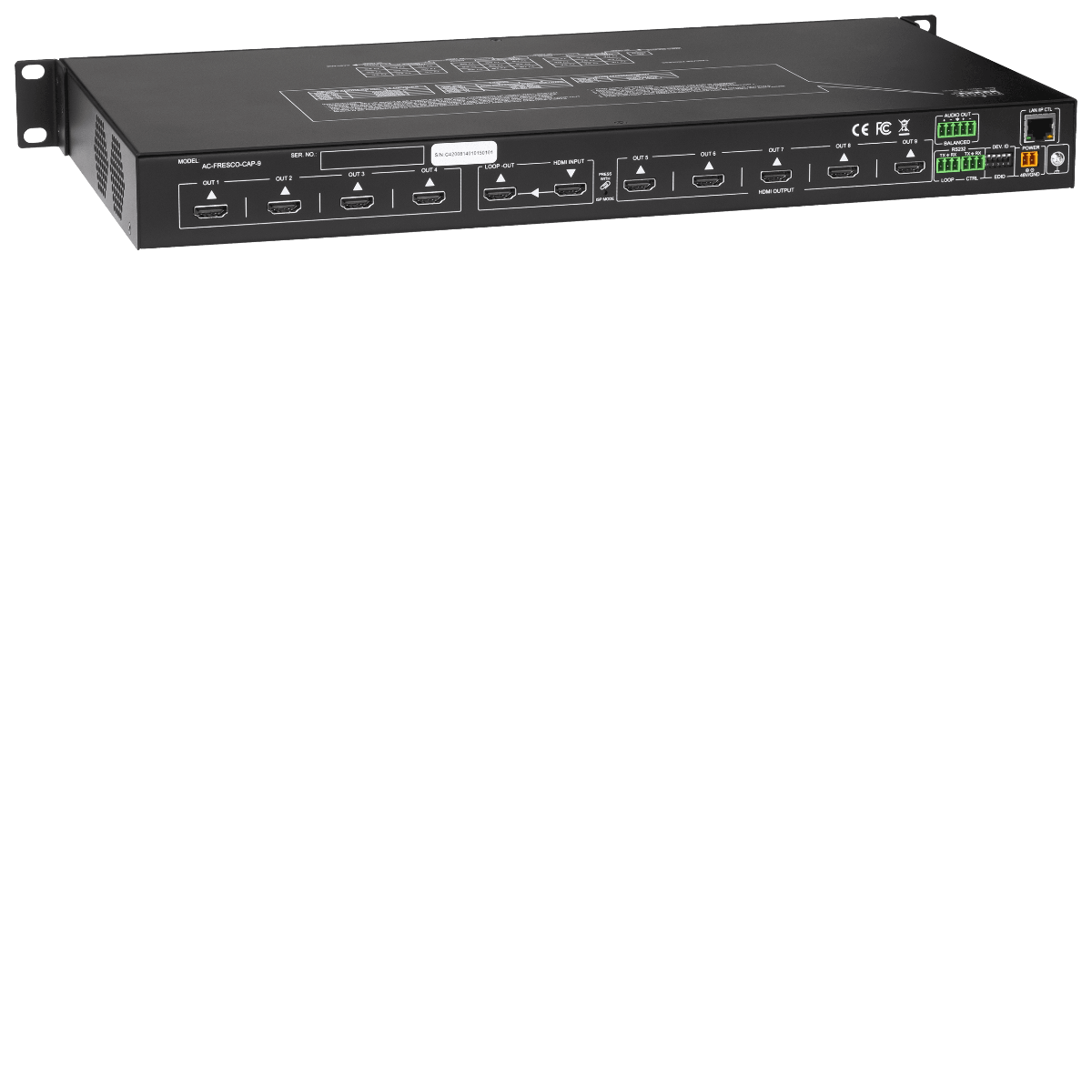

The AVPro Edge Fresco 9 is an HDMI video wall processor that can handle 18Gbps 4K60 (4:4:4) signaling creating a plug-and-play 3x3 video wall with HDR or Dolby Vision. Video walls allow sports bars, retail stores, entertainment venues, and hotels to "WOW" their customers with big, bold, and bright messaging. With the Fresco 9, you can process 4K HDR video throughout your video wall, delivering a dynamic effect no one will soon forget. We included robust scaling features inside this processor that allows you to not only input 18Gbps 4K60 with HDR signals but output them as well to each display.

Capture regions are very important in a video wall set up when installing the Fresco 9 setting up your capture regions has never been easier. By installing this free software, and connecting the Fresco 9 to your PC, you can enter all the measurements of your bezels and the software will layout your video wall perfectly, compensating for every bezel of every screen.

Plug-and-Play – Without any setup at all, directly out of the box, you can connect a source and nine displays and you will have a video wall.

Cascade for Large Video Walls - Easily expand your video wall beyond 3x3 by stacking Fresco 9 processors. The sky is the limit when using the cascading feature.

Built-in Scaling – You control what you want the output to be. Because the Fresco 9 has a built-in scaler you can set the output signal to whatever works best for your system. Output a 720 signal or output a 4K60 18Gbps with HDR signal or anything in between, the choice is yours.

Audio De-Embedding - Our unique Audio De-Embedding provides a digital coax output with support for 6CH LPCM, Dolby Digital, DTS.

Highly Flexible Panel Configurations - Mix and match different size panels with different bezel measurements even from different brands, and also build a cohesive video wall experience.


  • Plug-in-Play 3x3 video wall
  • Dolby Vision, HDR10+ and HLG Support
  • HDCP 2.3 (and all earlier versions supported)
  • PC Software
  • USB, RS-232 and LAN Control Options
  • Digital Coax Audio Out (6CH PCM, DD, DTS)
  • Built in Resolution Scaling
  • Able to Cascade
