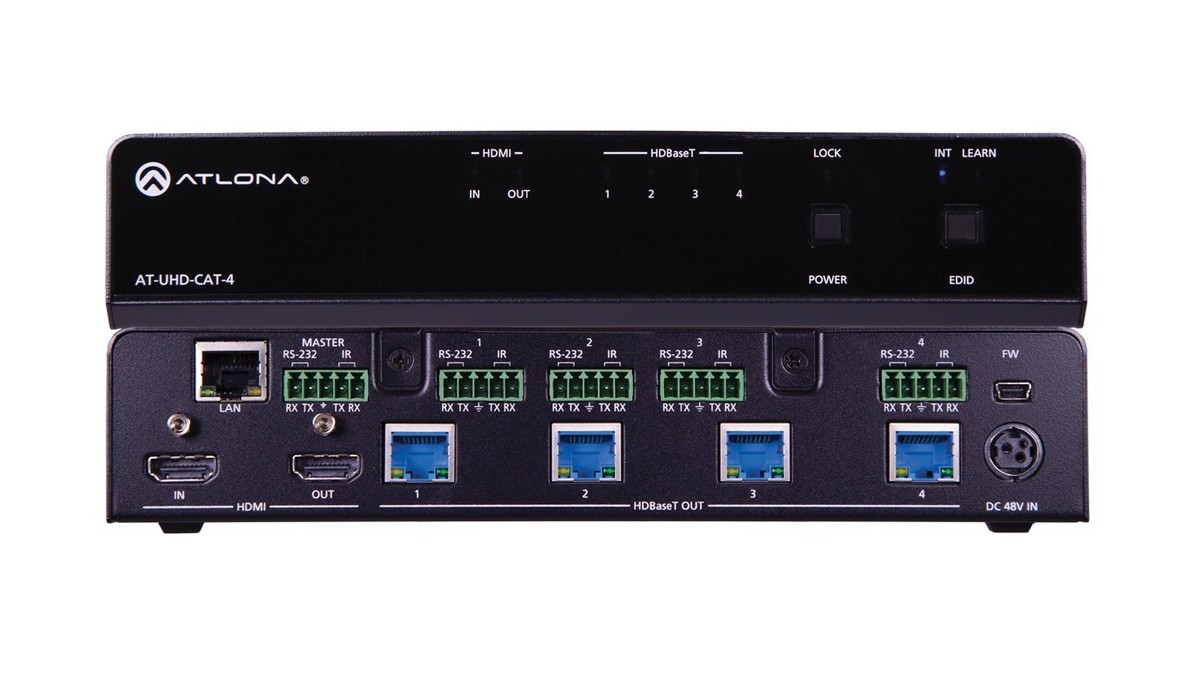

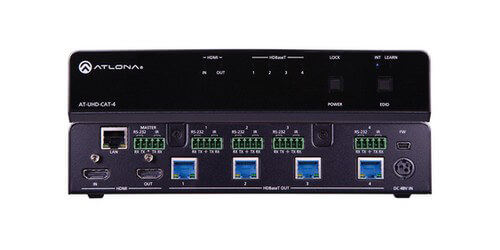

Atlona AT-UHD-CAT-4
1x4 4K HDBaseT Distribution Amplifier - HDCP 2.2

Part #: AT-UHD-CAT-4
This product has been discontinued

For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top AT-UHD-CAT-4 Specifications
  • Inputs: 1 HDMI
  • Outputs: 4 HDBaseT
  • HDBaseT distance: 230' for 1080P, 130' for 4K
  • HDBaseT sends power to the receivers
"Love the products we've ordered- they've been awesome!"
Contact a product specialist!
Proudly supporting our customers since 2008

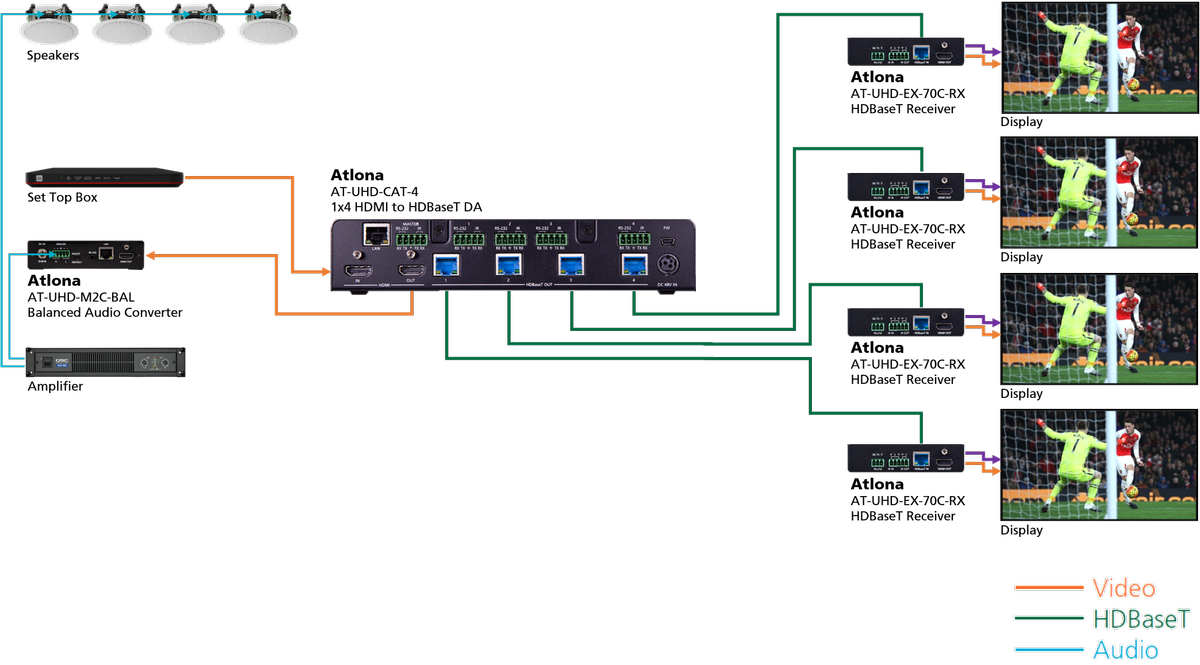

The Atlona AT-UHD-CAT-4 is a 1 HDMI input and 4 HDBaseT output 4K distribution amplifier, it will take your single source and send it out to up to 4 displays up to 230' away (130' for 4K).  It also sends power to the receivers so they do not require a power supply simplifying installation.  The distribution amplifier supports resolutions up to 4K60 4:2:0 with HDCP 2.2 compliance.  The unit can be controlled via the front control buttons, CEC, IR, or RS-232.

The Atlona AT-UHD-CAT-4 is compatible with the sold separately AT-UHD-EX-70C-RX receivers.  The unit is a perfect solution when you need to send your signals a long distance with the highest resolution.


  • Additional HDMI output to daisy chain multiple units together
  • Max resolution: 4K/UHD60 4:2:0
  • HDCP 2.2
  • Color Depth: 8-bit, 10-bit, 12-bit
  • Bandwidth: 10.2Gbps AMS ready
  • Control: Front control buttons, CEC, IR, or RS-232
  • Includes: International power supply, under table brackets, rack ears
  • Dimensions: 1.73" x 8.75" x 10.28"
  • Weight: 3.7lbs
  • Warranty: 10 years
