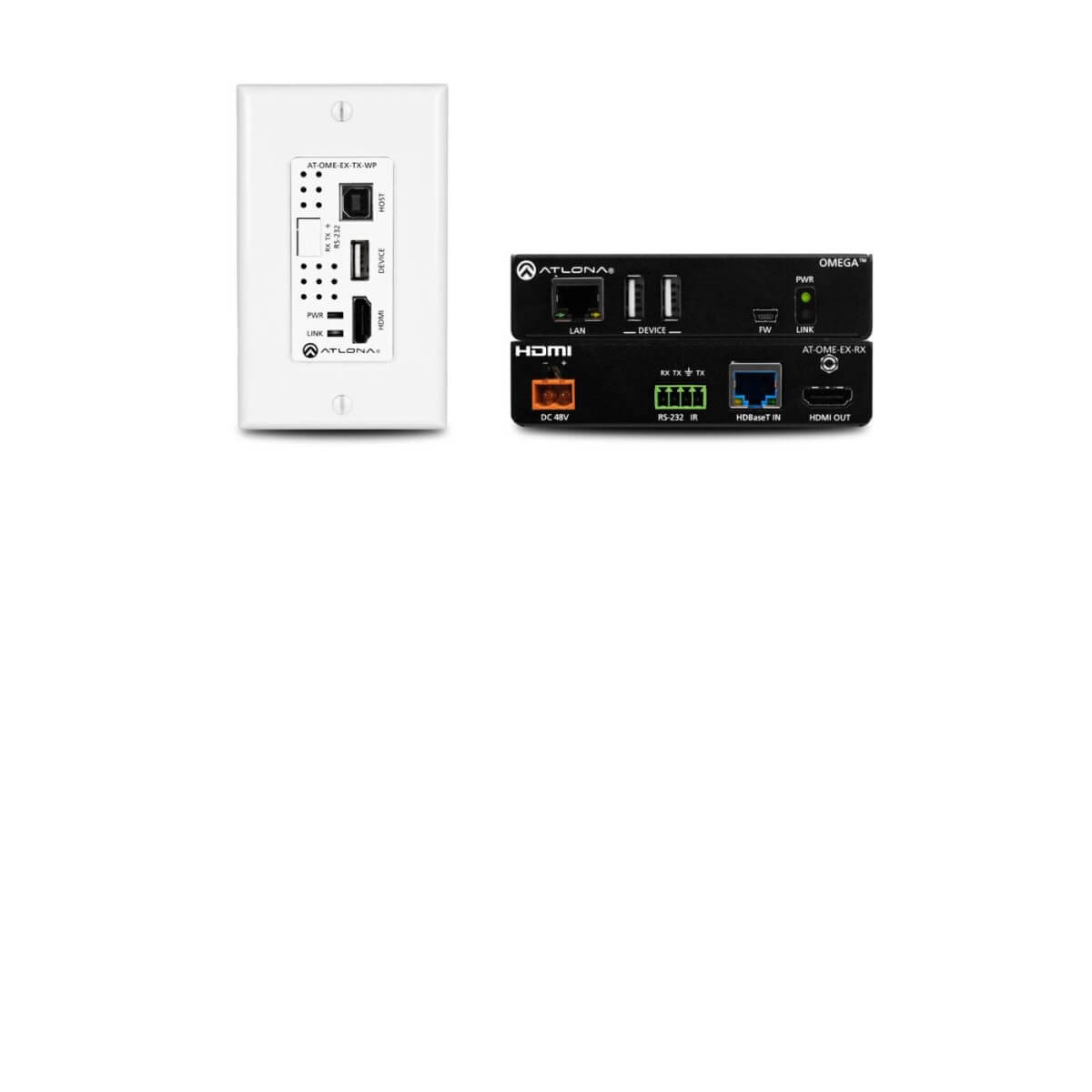

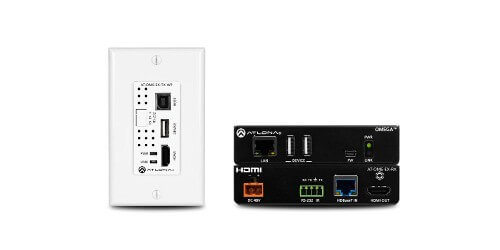

Atlona AT-OME-EX-WP-KIT
Wallplate HDBaseT TX/RX for HDMI with USB

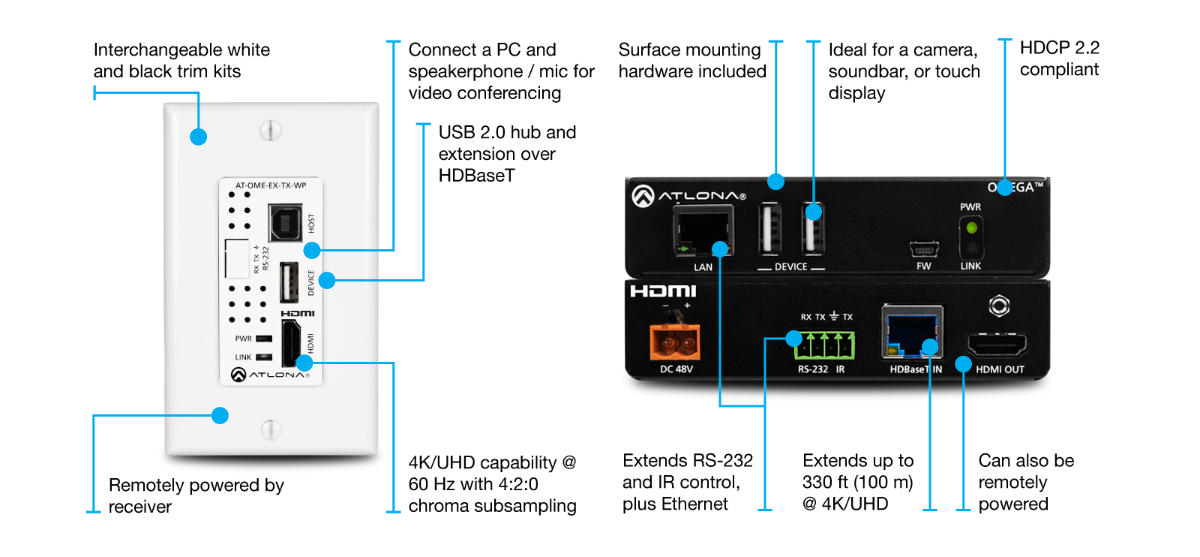

- HDBaseTTM extender kit for HDMI, power, control, and USB
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- US one-gang enclosure for wallplate openings - interchangeable black or white trim kits
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
-Timothy J.
Description
The Atlona AT-OME-EX-WP-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). The transmitter features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-EX-WP-KIT is HDCP 2.2 compliant and extends RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP transmitter includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. The OME-EX-RX receiver provides two USB interfaces for devices such as a camera, soundbar, or display. The transmitter and receiver are available separately, for use with other Omega Series integration products.
Specifications
- HDCP 2.2 compliant
- Transmitter powered by receiver over HDBaseT
- Also available: AT-OME-EX-WP-KIT-LT (70 meter extension)
