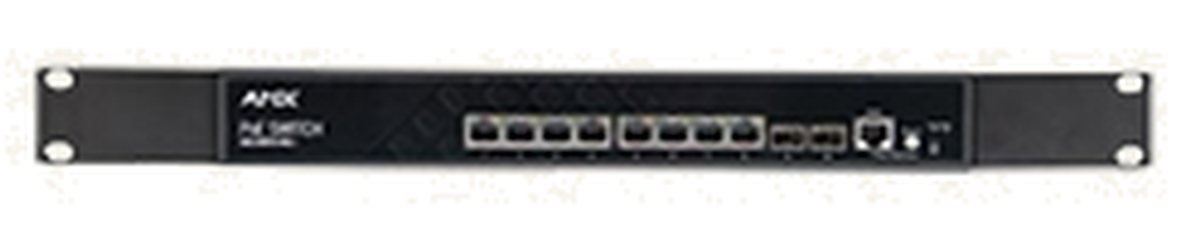

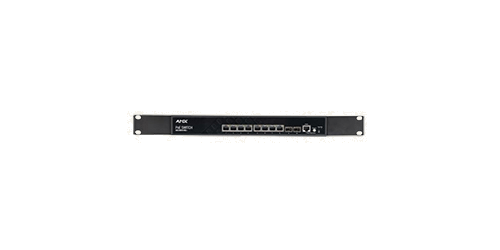

AMX NXA-ENET8-POE
8 Port POE Plus Managed Gigabit Switch

Description

AMX's NXA-ENET8-POE+ is an 8-port PoE Plus enterprise managed Gigabit Ethernet switch. The ENET8 is a full-PoE fanless switch delivering maximum power up to 30W per port, within the total PoE power budget of 75 W. The ENET8 provides powerful features for Layer 2 switching, supporting multiple management access through CLI/SNMP/Web/Telnet.

Key features include:

Layer-3 capability awareness of IP multicast through IGMP snooping, with continuous availability, multi-management, comprehensive QoS, enhanced security, Smart Network Deployment, and PoE support, the ENET8 is the best choice for managing Harman IP devices.

Specifications

• Temperature: IEC 68-2-14 0 C to 40 C (Standard Operating) / -40 C to 70 C (Non-Operating)
• Humidity: 10% to 90% (Non-condensing)
• Vibration: IEC 68-2-36, IEC 68-2-6
• Shock: IEC 68-2-29
• Drop: IEC 68-2-32
• ELECTRICAL
• Power Consumption: 160W maximum (full PoE load)
• Power Characteristics
• Voltage: 100-240V
• Frequency: 50-60Hz
• 2.1 A
• Current: 100-240 V, 50-60 Hz, 1 A
• Power Over Ethernet Input Voltage: 48 V DC
• Maximum output power 70 W: 15.4 W for any eight ports simultaneously or 30 W each over four ports
• Maximum output current per port: 350 mA DC, Port 1 can reach: 565 mA DC, Output Voltage: 44 - 57 V DC
• Maximum output current per port: 350 mA DC
• ELECTROMAGNETIC CAPABILITIES
• CE Mark
• FCC Class A
• CISPR Class A
• REGULATORY COMPLIANCE
• UL/CUL(UL60950-1, CSA60950-1)
• CB (IEC60950-1)
• CSA/NRTL (UL60950, CSA 22.2.No 60950)
• EN 60950-1:2006+A11:2009+A1: 2010+A12:2011+A2:2013 / IEC 60950-1:2005
• Am1:2009
• CSA22.2 No. 60950-1-07 2nd
• UL 60950-1 2nd
• CB (IEC/EN 60950-1)
