Altinex TNP510-AC4
Pop Up w/ 4 Power, 1 HDMI, 1 VGA, 1 Audio, and 1 Cat6

Part #: TNP510-AC4
Satisfaction Guaranteed!
MSRP: $730.00
Our Price: $689.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $7 Off!
Color Choice:
Top TNP510-AC4 Specifications
  • Color: Black anodized aluminum or silver anodized aluminum

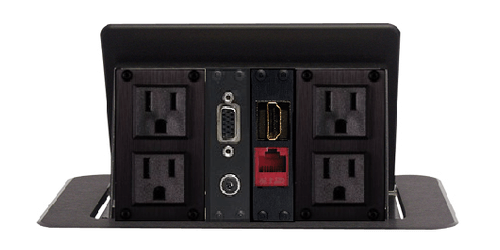

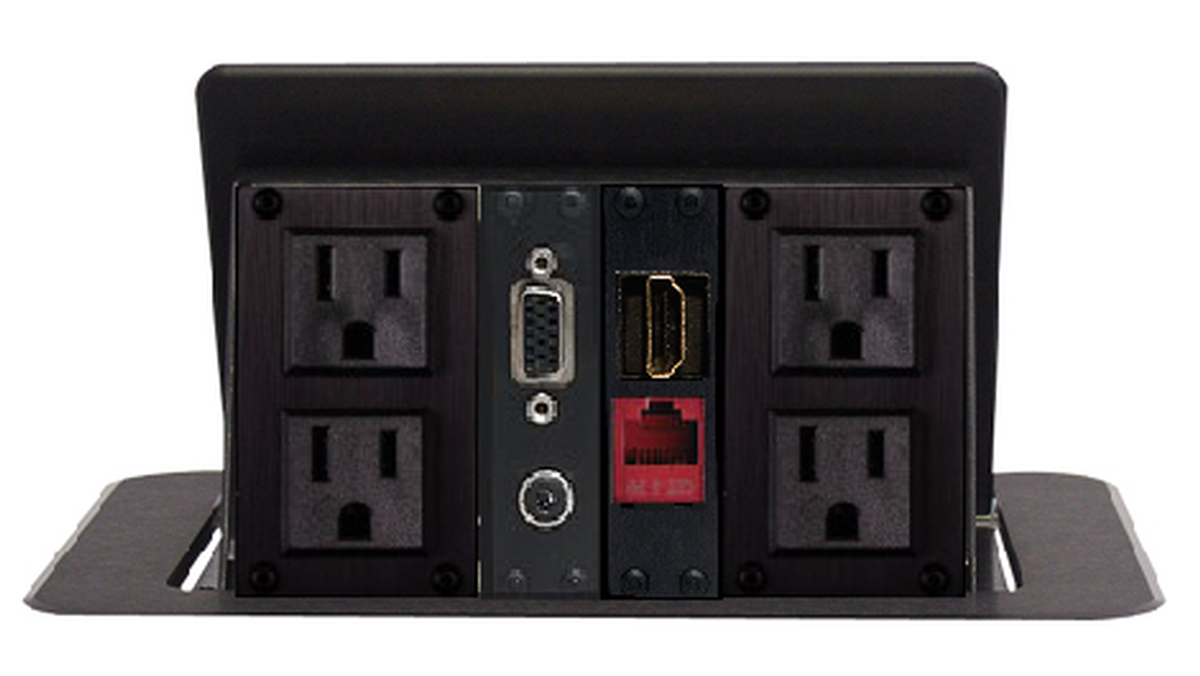

  • Connections: 4 Power, 1 HDMI, 1 VGA, 1 Audio, 1 Cat6
  • A/V cables are 6' in length with male ended matching terminations, the power cable is 9' long
  • Bezel dimensions: 7.86" x 6.53"
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008

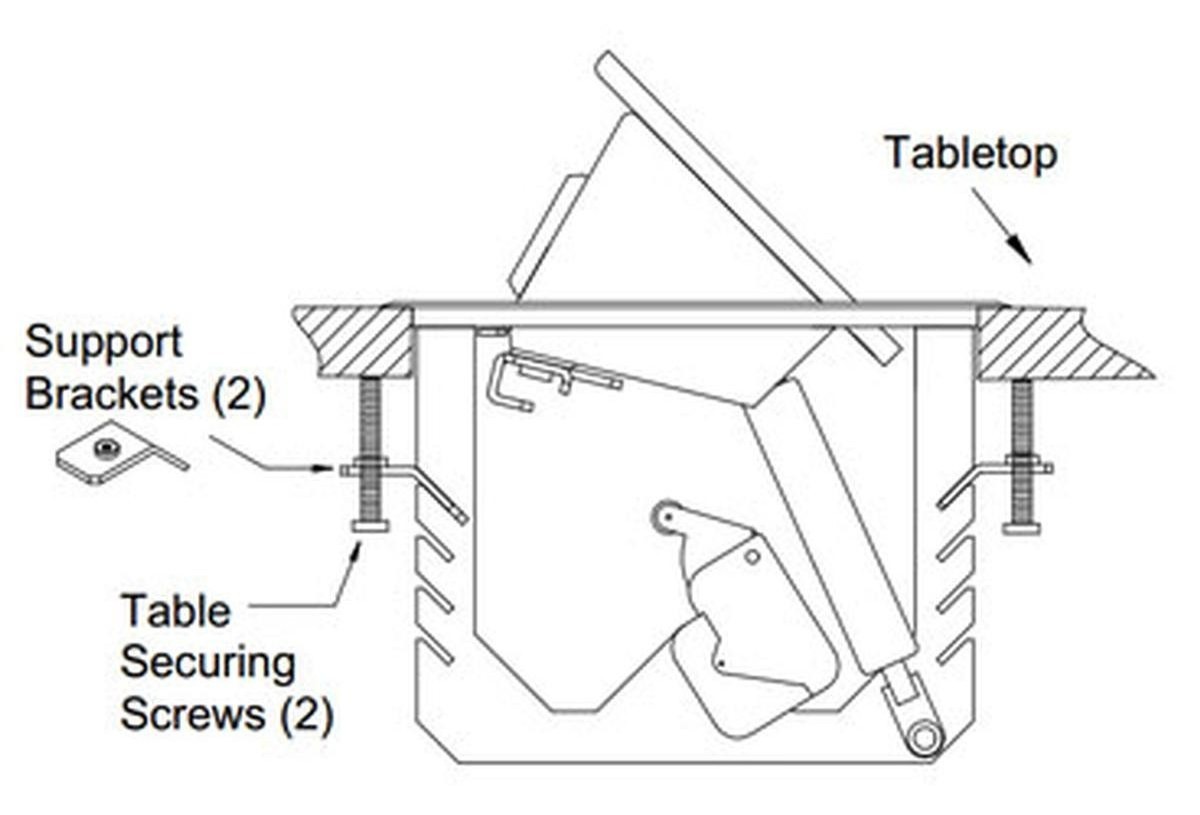

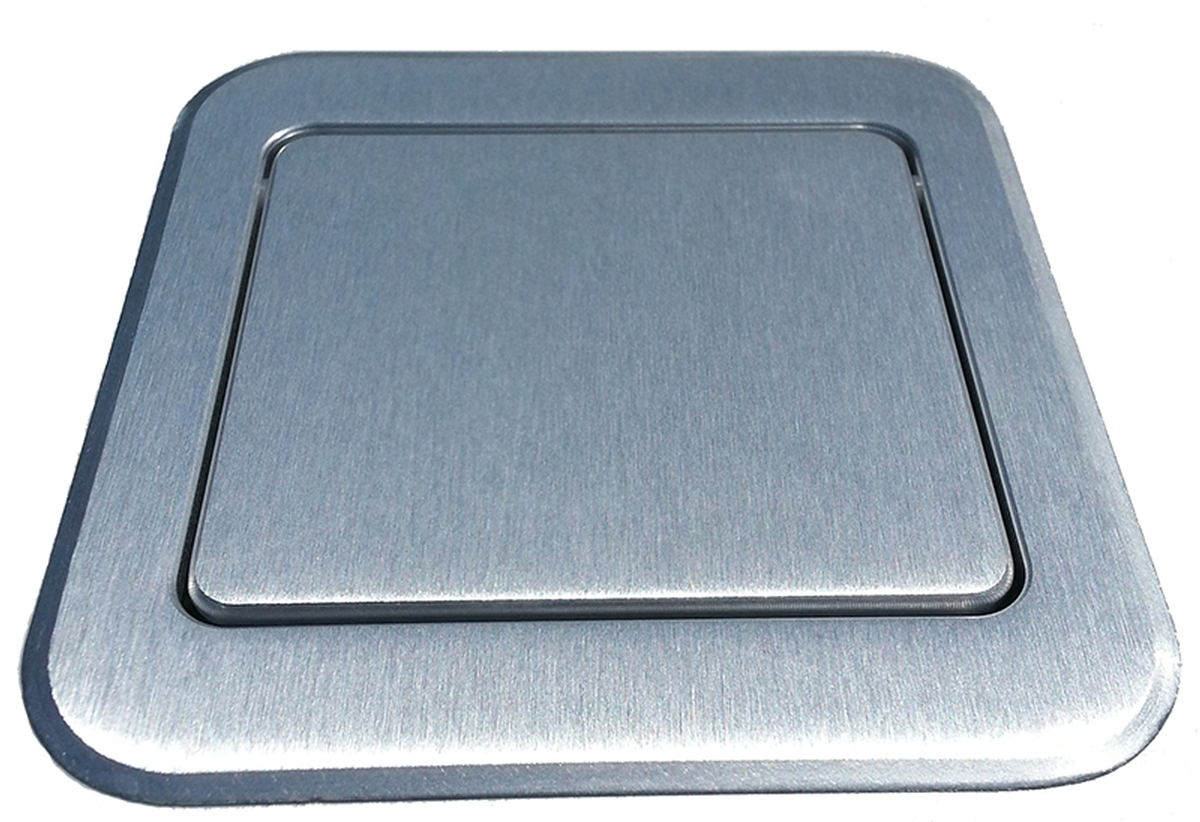

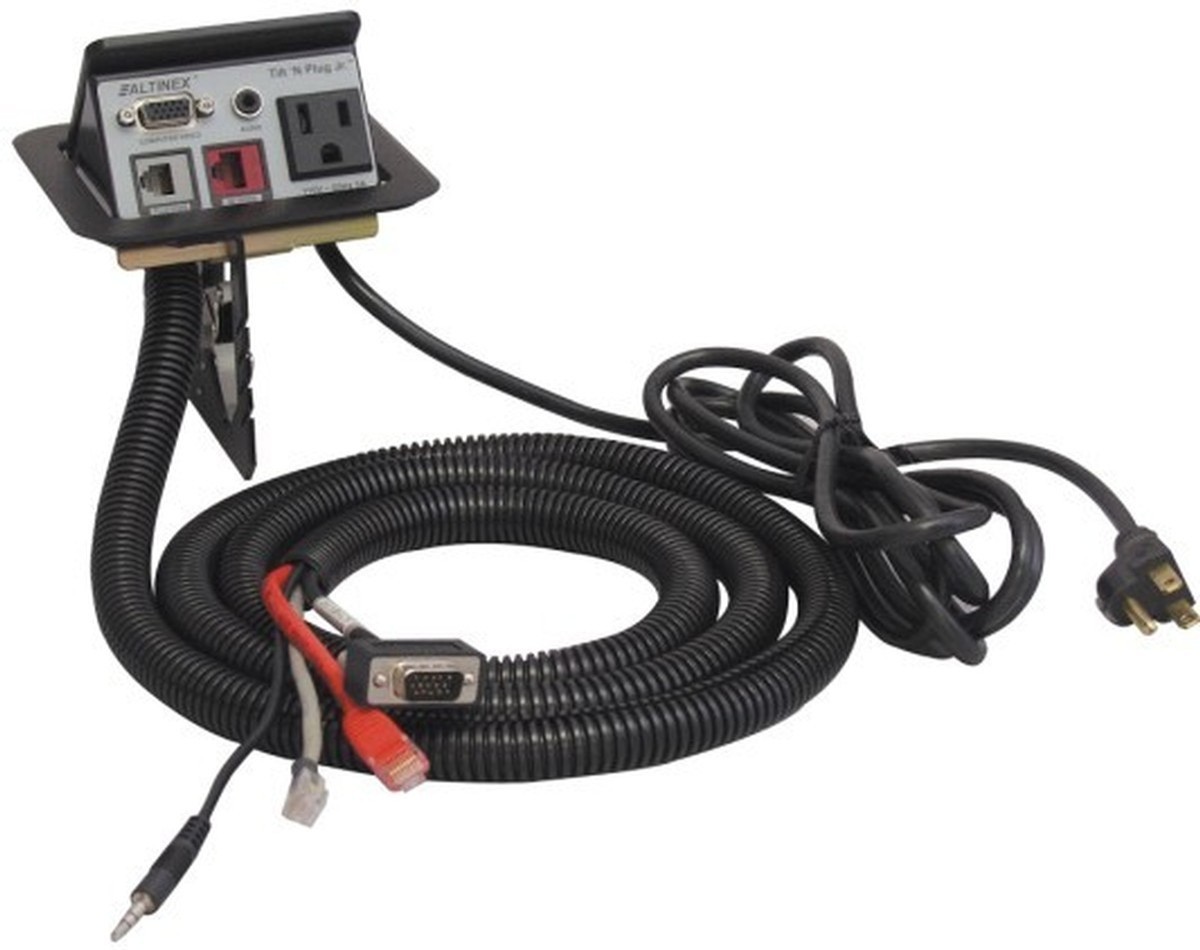

The Altinex TNP510-AC4 is a 4 power outlet full size Tilt N Plug from Altinex. When closed Tilt N Plugs create a modern appearance in any table top, to open press the top and the gas spring tilts the unit open exposing your connections. The unit ships with the most popular connections already installed with 6' cables including, (1) 15-pin HD VGA, (1) 3.5mm stereo audio, (1) HDMI, and (1) CAT-6 connector, while the (4) AC power outlets have 9' cables. Simply drop in the hole into your table top and secure to the underside of your table with the included mounting hardware, the cables drop below to be plugged into your floor box or coupled to.

Choose between black anodized aluminum or silver anodized aluminum color.


  • Cutout size: 7.46" x 6.13"
  • Depth under table: 6.53"
  • Table thickness: .75" to 2.5"
  • UL/C-UL Listed
  • Pop-up dampening for smooth operation
  • Includes: Mounting screws/brackets
  • Warranty: 10 years on entire box and connections including leaf spring
