Tilt 'N Plug Jr Tabletop HDMI and VGA Tilt Up Box
- Connections: 1 VGA, 1 Audio, 1 HDMI, 1 Cat6, and 1 Power
- Gender: Female at the box with 6' male ended AV and data cables under the table
- Power cable: 9'
- UL Listed

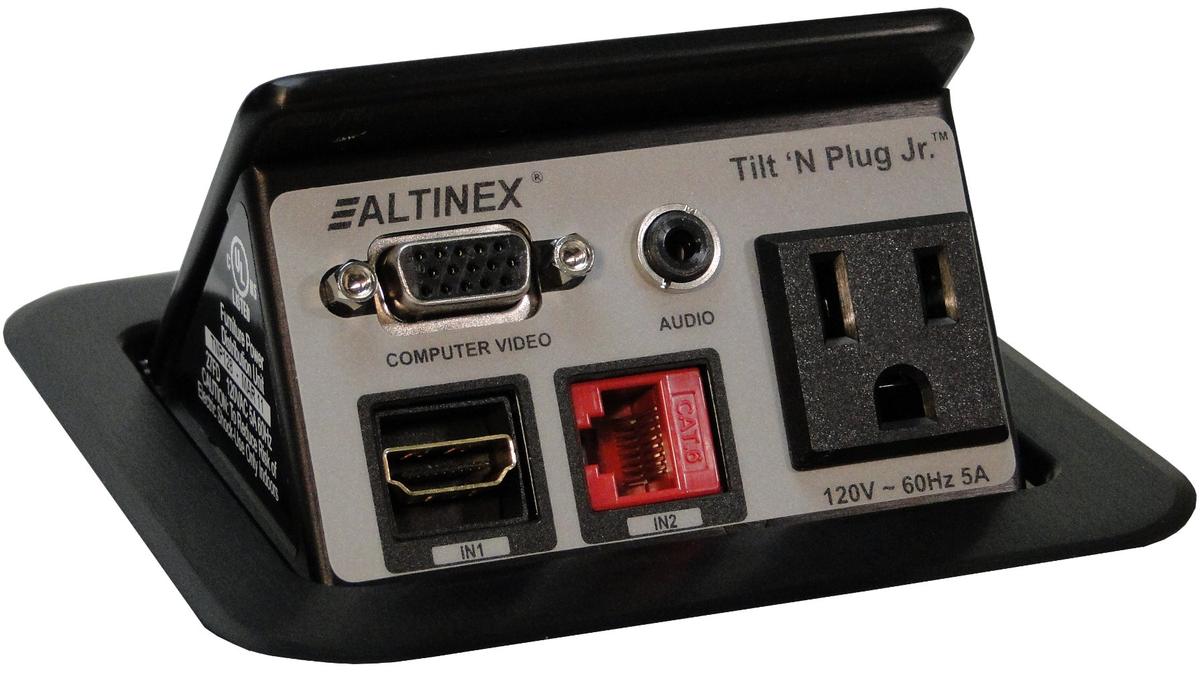

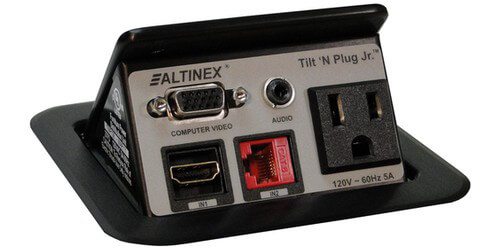

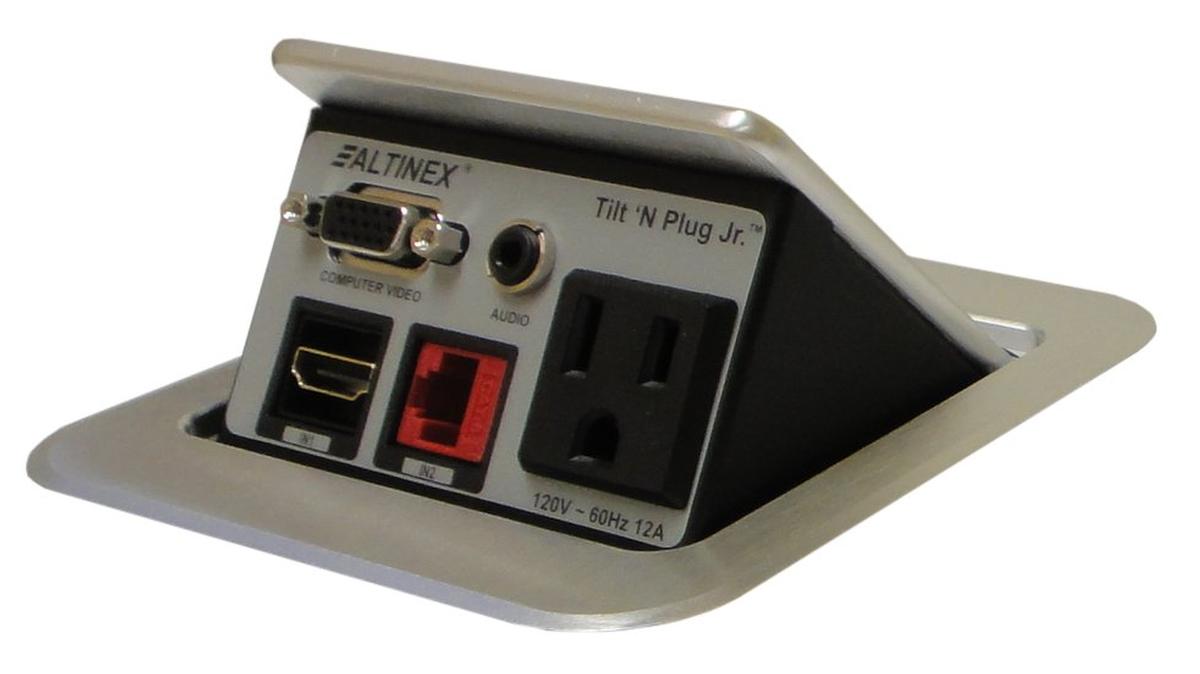

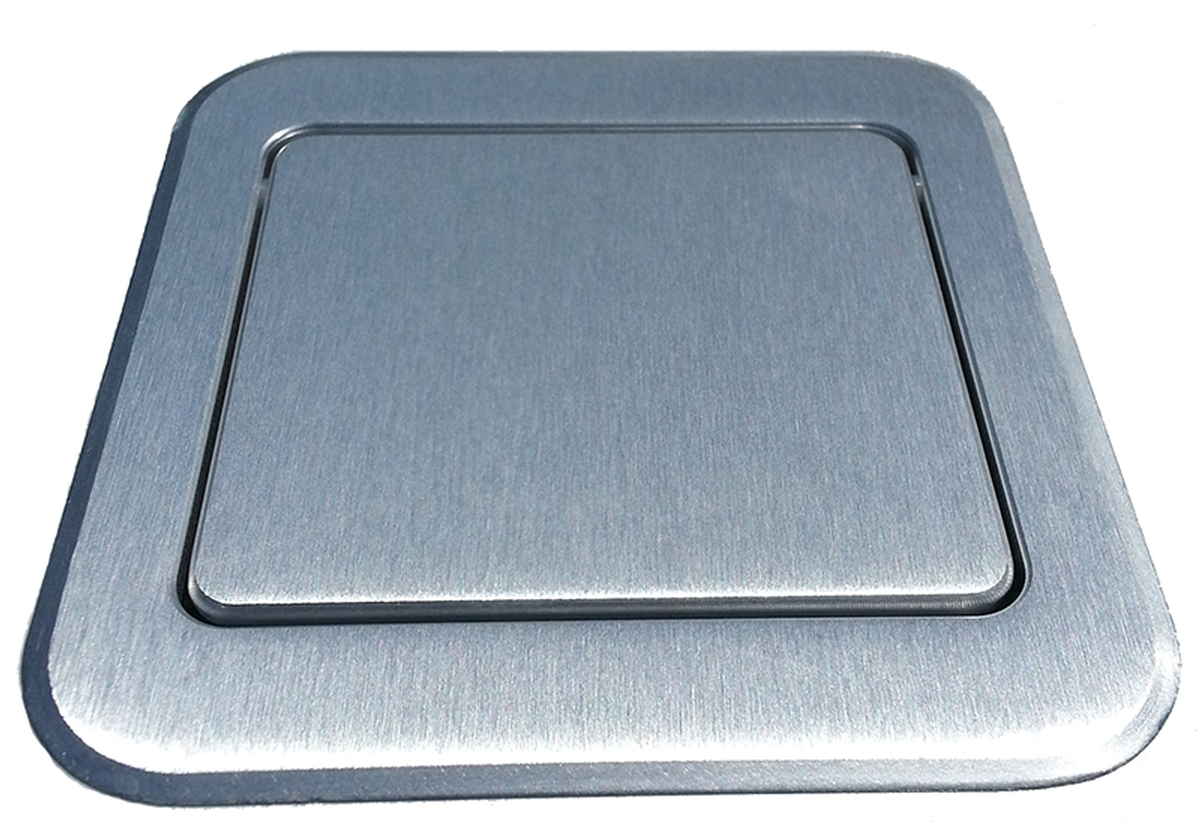

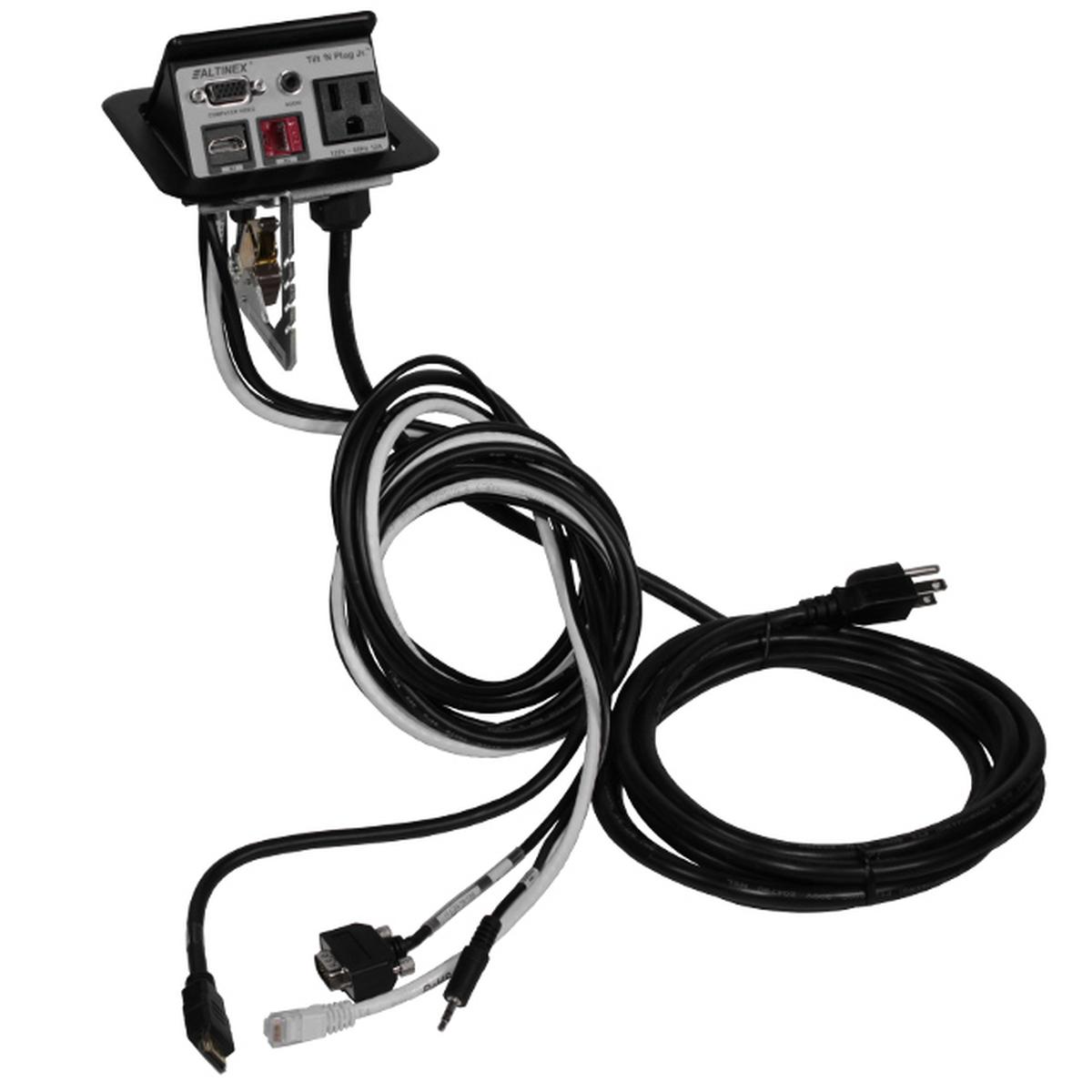

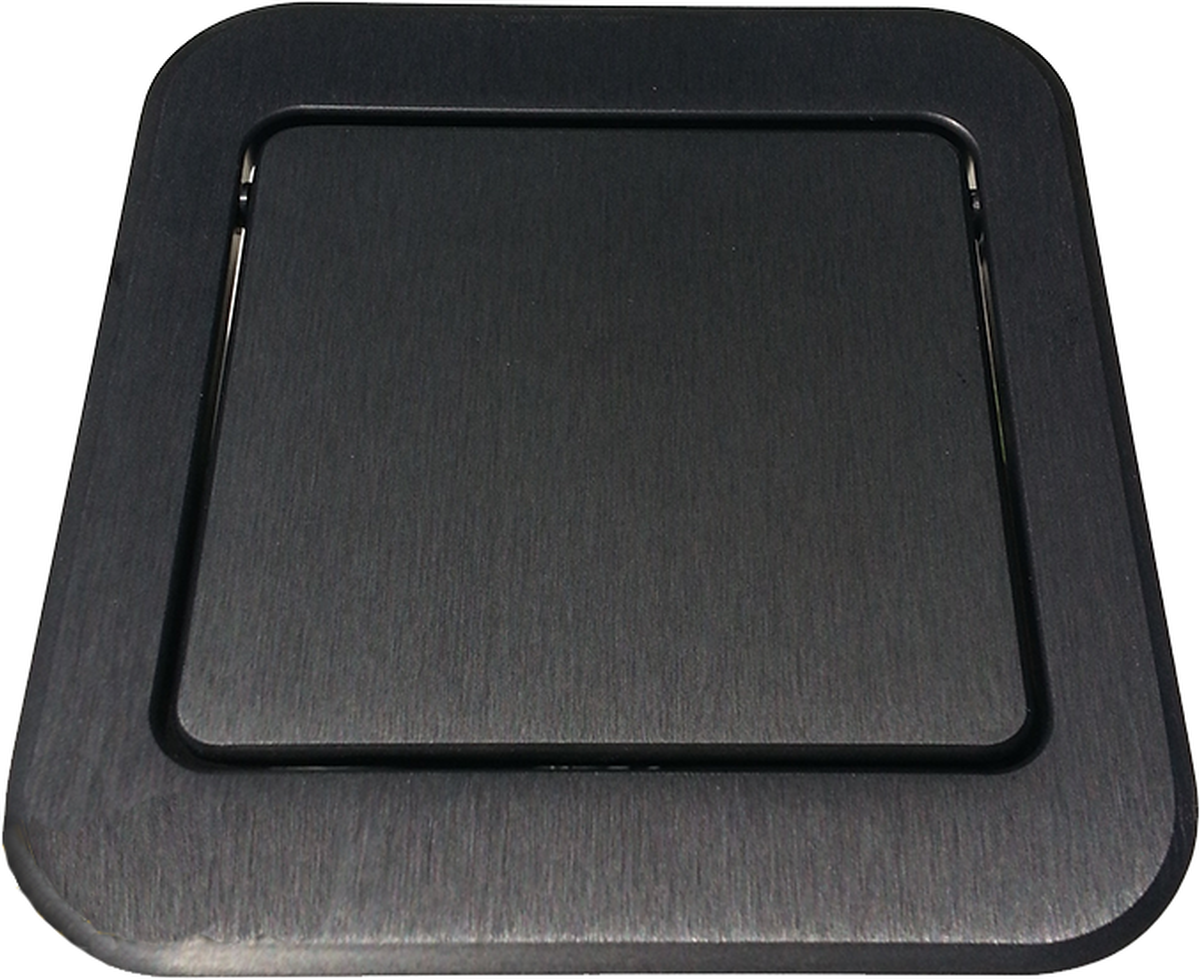

The Altinex TNP128S is the #1 selling tilt up tabletop box on the market, it offers both analog and digital connections. The connections included are 1 VGA, 1 audio, 1 HDMI, 1 Cat6, and 1 power. All connections at the box are female, under the table are 6' male terminated cables with the power being 9' long. Choose from a gorgeous black anodized aluminum or silver anodized aluminum finish to compliment the look of any room.
The top tilts up via a gas spring, simply press the top and it smoothly tilts up exposing your connections. When you are done just press the top till it locks flush with the table and it is easily out of the way.

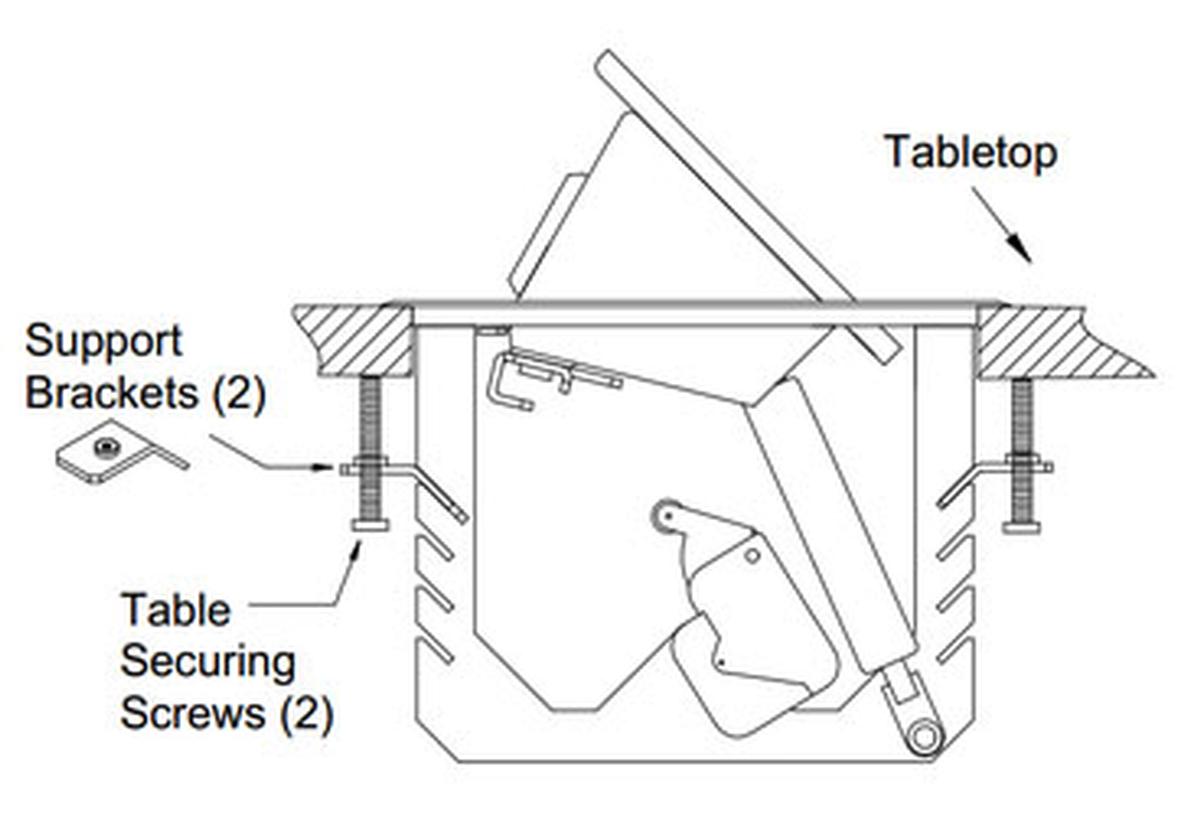

Installation is easy, cut your hole using the cutout template and drop the unit in the hole. Secure to the underside of the table with the included mounting hardware and you are done, you now have an elegant looking yet functional cable management and connectivity solution for you table.
- Mounting hardware included
- Bezel dimensions: 4.6" x 4.9"
- Cutout dimensions: 4.2" x 4.5"
- Table thickness: .75" to 2.25"
- Depth under table: 4.9"
- UL listed
- Warranty - Table box: 10 years, Gas spring: 1 year
