IN604

DVI-D Input Board for Presentation Switcher Enclosure PS600 Series

Satisfaction Guaranteed!
Part #: IN604
Your Price: $245.00
Quantity:
Quantity Pricing
1-2
$245.00
3-8
$237.65
9+
$230.30
0 out of 5 based on 0 ratings.

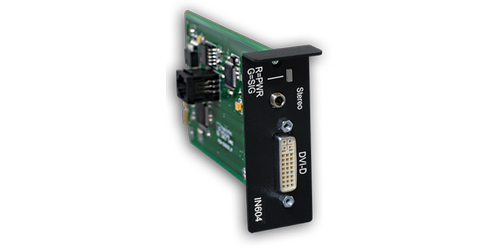

The IN604 from Presentation Switchers is a DVI-D Input Card Assembly for high speed digital DVI devices. It is designed to be used with the PS600 series Modular Presentation Switcher units, for example the PS650 (not included). This board is used to connect audio-visual source devices using a DVI version 1.0 connector.

This DVI Input Board can be purchased separately or part of a complete system with a PS600 Series Unit.

The IN604 features:

  • DVI version 1.0 compliance, through DVI-D on DVI-I connector
  • 3.5mm unbalanced stereo audio
  • 7.5 Gbps (2.5 Gbps per color), 235 MHz
  • HDTV Resolutions up to 1080p @ 60 Hz
  • PC Resolutions up to WUXGA (1920 X 1200)
  • Combines DVI-D with Stereo Audio on HDMI Connector
  • Field Upgradable, Modular Assembly
  • Built-in ESD Protection
  • LEDs for Power and Signal Detection

INSTALLATION

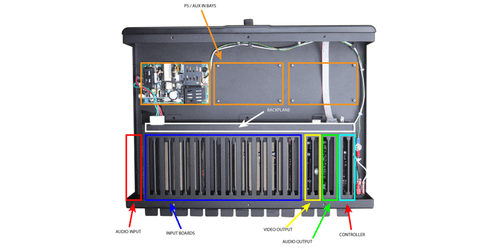

Installation is quick and painless. UNPLUG THE POWER CORD ATTACHED TO THE ENCLOSURE. Simply remove the single mounting screw that holds the IN600 Future Expansion Plate or other card where you plan to install the IN604. After removing the old plate, insert the new IN604 assembly. Replace the screw and reattach the power cord. The system automatically recognizes the new board installed so no further activity is required. However, in some cases, it may be necessary to adjust the audio trim to level the input amplitude to a nominal level. See the Installation Manual for more details regarding audio adjustments.



  • Video Input Specs:
  • 1 DVI-D, Connector Type: DVD-I, female, single link
  • DVI V1.0, CEA-861-D
  • 7.5 Gbps (2.5 Gbps per color), 235 MHz
  • HDTV Resolutions up to 1080p @ 50/60 Hz, 12-bit color
  • PC Resolutions up to WUXGA (1920 X 1200)
  • HDCP V1.4
  • EDID: Passthru or Table Lookup, selectable
  • Equalization: Automatic, up to 20m AWG26 at 2.25 Gbit/s, 30m AWG24 at 1.5 Gbit/s
  • Indicators: 1 LED (Red = Power, Green = Video Signal Present on Input, and White = Source selected)
  • Audio Input Specs:
  • 1 3.5mm, Mini Audio Jack (TRS), unbalanced stereo, female
  • Gain: 0 dB
  • Freq Resp: 20 Hz to 20 kHz, +/- 0.05 dB
  • THD+N: 0.01% @ 1 kHz at nominal level
  • S/N: > 90 dB at Vin = 0 V, A-Weighted
  • Crosstalk: < -45 dB @ 20 kHz, -70 dB @ 1 kHz or below
  • Separation: > 90 dB @ 20 Hz to 20 kHz
  • Impedance: > 10k Ohms unbalanced, AC coupled
  • Nom Level: -10 dBV (316 mVrms)
  • Max Level: +6 dBV (2 Vrms), unbalanced at 1% THD+N
  • Indicators: 1 LED (Red = Power, Green = Video Signal Present on Input)
  • Certifications: CE, RoHS
  • Built-In ESD Protection
  • Dimensions (HxWxD): 3" x 1.2" x 6"
  • Weight: 0.5lbs
  • Warranty: 3 Years, Part and Factory Labor
