Hall Research VSA-HA-DP

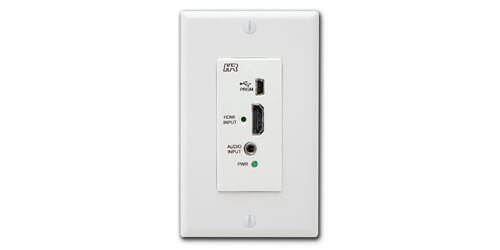

HDMI Wall Plate for VSA Series w/ Audio Extraction, Audio Input

Satisfaction Guaranteed!
Part #: VSA-HA-DP
Regular Price: $265.00
Instant Savings: -$13.25
Quantity: $251.75
Quantity Pricing
0 out of 5 based on 0 ratings.

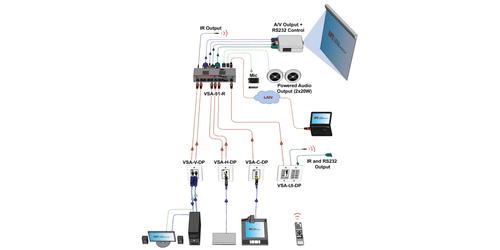

Featuring the VSA-HA-DP HDMI Wall Plate from Hall Research for VSA Series with Audio Extraction and Audio Input and an extension range up to 130 feet away from the VSA Receiver (not included). This unit is part of the VSA wall-plate input modules and is designed to connect to the VSA-51-R (sold separately) utilizing two Cat 5e/6 cabling and is powered by the receiver. This wallplate extends HDMI or DVI signals to the receiver and is capable of extracting the embedded audio from the HDMI video input for the audio amplifier in the receiver. It also accommodates a separate audio input through the provided 3.5mm stereo jack. It supports HDCP, Deep-Color, 3D Video, and CEC.

  • Inputs: HDMI, Audio, USB 2.0 (Full Speed)
  • Unit to Unit: Cat 5e/6
  • Power Supply: Powered from VSA-51-R (sold separately)
  • UTP Cable Functions: Port "A" - Video (TDMS), Port "B" - Power, Audio, DDC
  • Safety: CE
  • EMI/EMC: CE, FCC Class A
  • MTBF: 90,000 hours

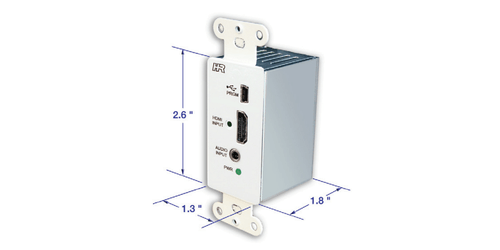

  • Dimensions (WxDxH, excluding bezel): 1.37 x 1.77 x 4.02"
  • Warranty: 3 years
