Home > Range Extenders -> HDBaseT Receiver and Transmitter Kits -> HDMI -> Zigen -> ZIG-HVX-70 HDBaseT HDMI 4K Extender Kit, HDMI 2.0, HDCP 2.2, Control, 230'

Zigen ZIG-HVX-70
HDBaseT HDMI 4K Extender Kit, HDMI 2.0, HDCP 2.2, Control, 230'

Part #: ZIG-HVX-70
Satisfaction Guaranteed!
Our Price: $299.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Product Highlights
  • Resolution: Up to 4K / 2K, 30Hz, 24bpp, 4K / 2K, 60Hz, 24bpp with 4:2:0 pixel format
  • HDCP 1.4 & 2.2 Compliant
  • Includes: Transmitter, receiver, 2 power supplies, 1 IR receiver, 2 captive screw connectors
  • Distance: 230'
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

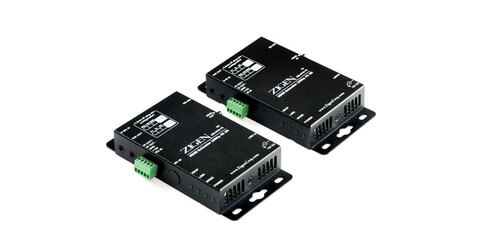

The Zigen ZIG-HVX-70 is a transmitter and receiver kit to send your HDMI with up to 4K resolution 230' using HDBaseT technology over a single Ethernet cable.  Not only does the kit send 4K but bi-directional IR and RS-232 control.  The kit is in compliance with the latest technology and conforms to HDMI 2.0 and even HDCP 2.2.  The signal transmission will pass through CEC and 3D as well.  Use the Zigen ZIG-HVX-70 to reliably send your HDMI signal with embedded audio from source to destination with 4K resolution.

Specifications

  • Resolution: Up to 4K / 2K, 30Hz, 24bpp, 4K / 2K, 60Hz, 24bpp with 4:2:0 pixel format
  • HDCP 1.4 & 2.2 Compliant

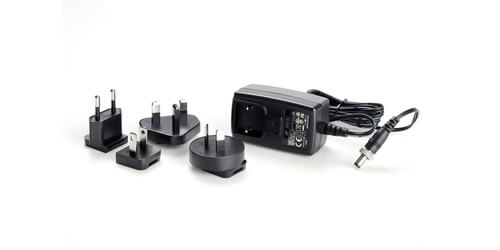

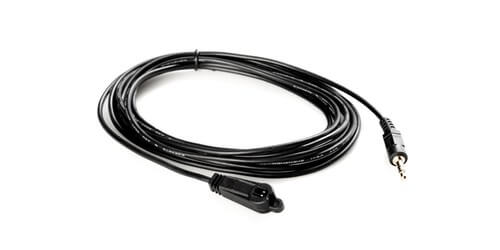

  • Includes: Transmitter, receiver, 2 power supplies, 1 IR receiver, 2 captive screw connectors
  • Distance: 230'
  • Supports HDMI: 1.2, 1.3, 1.4 and 2.0 w/ 48-bit deep color
  • Audio: Uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master
  • Control: Bi-directional IR and RS-232
  • LED indicator lights
  • Warranty: 3 years
