WyreStorm
TX-IW-70-POH-KIT

In-Wall 4K HDR HDBaseT Transmitter and Receiver Kit

Satisfaction Guaranteed!
Part #: TX-IW-70-POH-KIT
Your Price: $845.00
Quantity:
0 out of 5 based on 0 ratings.

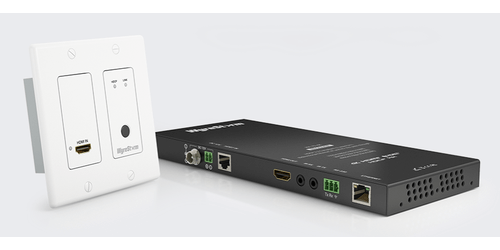

Wyrestorm’s TX-IW-70-POH-KIT is an in-wall extender kit featuring 2-gang in-wall Class-A HDBaseT transmitter and wall-mountable HDBaseT receiver. Its capabilities include 4K UHD video, multi-channel audio, control and Ethernet can be sent over a single cable. The 4K UHD Extends 4K UHD video with HDR up to 230 feet or extends 1080p to 238 feet.

The TX-IW-70-POH-KIT’s transmitter is fully compatible with the latest source devices and AVR zone outputs. As it’s an HDBaseT device, the transmitter is powered through the receiver included in the kit. This transmitter is versatile in it’s ideal for use in educational, governmental, corporate, and residential environments.

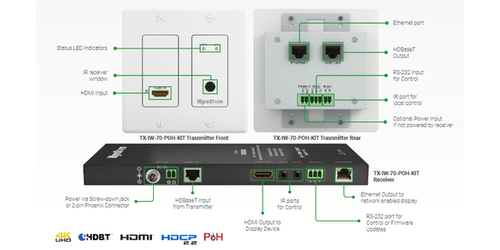

  • Audio and Video
  • Transmitter Inputs: 1x HDMI 19-pin type A
  • Transmitter Outputs: 1x HDBaseT 8-pin RJ-45 female

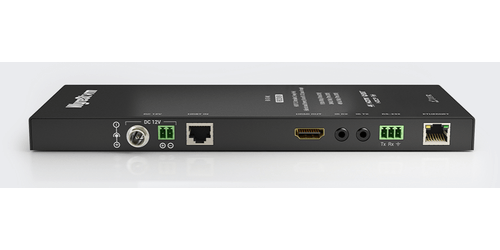

  • Receiver Inputs: 1x HDBaseT 8-pin RJ-45 female
  • Receiver Outputs: 1x HDMI 19-pin type A
  • Audio Formats: 2ch PCM | Up to 7.1 DTS Master HD and Dolby True HD
  • Video Resolutions (Max) Video Resolutions
  • 1920x1080p @60Hz 12bit
  • 1920x1080p @60Hz 16bit
  • 3840x2160p @30Hz 8bit 4:4:4
  • 4096x2160p @60Hz 8bit 4:2:0
  • HDMI
  • 15m/49ft
  • 7m/23ft
  • 7m/23ft
  • 7m/23ft
  • Cat6
  • 100m/328ft
  • 70m/230ft
  • 70m/230ft
  • 70m/230ft
  • Cat6a/7
  • 100m/328ft
  • 100m/328ft
  • 100m/328ft
  • 100m/328ft
  • Supported Standards: DCI | RGB
  • Maximum Pixel Clock: 297mHz
  • Communication and Control
  • HDMI: HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
  • HDBaseT: HDCP 2.2 | EDID | 1-way PoH (RX to TX) | Bidirectional IR and RS-232, and Ethernet
  • Ethernet: 1x Ethernet: 8-pin RJ-45 female | Bidirectional over HDBaseT
  • RS-232: 1x 3-pin Screw Down Phoenix Connector | Bidirectional over HDBaseT
  • IR: 1x IR Out 2-pin Screw Down Phoenix Connector / 1x IR TX 3.5mm (1/8in) TS Mono | 1x IR RX 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT
  • Power
  • Power Supply Transmitter: 12V DC 1A | RX: 12V DC 2A
  • PoH: 48V 15.4W
  • Max Power Consumption: TX: 2.4W | RX: 7.2W | TX and RX: 9.6W
  • Dimensions & Weight

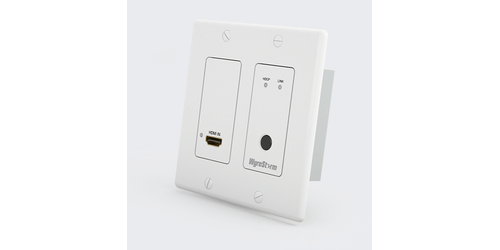

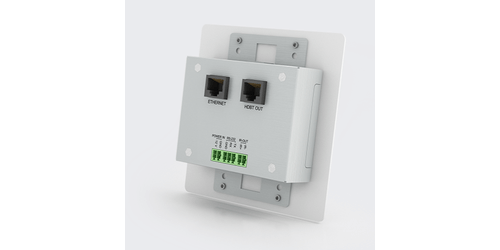

  • Transmitter Rack Units/Wall Box: 2-gang
  • Transmitter Height 108mm/4.26in
  • Transmitter Width: 106.7mm/4.21in
  • Transmitter Depth: 25mm/0.99in
  • Transmitter Weight: 0.19kg/0.42lbs

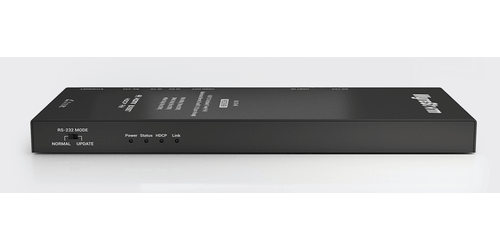

  • Receiver Rack Units/Wall Box: 1U
  • Receiver Height: 18mm/0.71in
  • Receiver Width: 232mm/9.14in
  • Receiver Depth: 93mm/3.67in
  • Receiver Weight: 0.5kg/1.1lbs
  • Regulatory Safety and Emission: CE | FCC | ROHS
  • Warranty: 5 years
