WyreStorm NHD-000-CTL
Network HD Systems Controller

Satisfaction Guaranteed!
Part #: NHD-000-CTL
For pricing & ordering information on this product:

-Please call us at 888-999-3759
-Click here to request a quote
-Contact us via Live Chat
0 out of 5 based on 0 ratings.

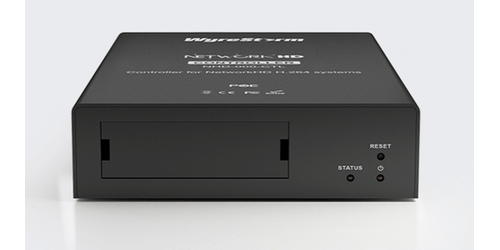

Wyrestorm's NHD-000-CTL is an innovative control interface for NetworkHD systems. The features of the NHD-00-CTL make it the simplest, quickest-to-configure AV over IP system. Designed for use with NetworkHD 100, 200, 400 & 600 Series systems to bridge the various encoders and decoders to a single, API-based connection point for use by a control processor or the NetworkHD Touch App. Two isolated NICs provide the option to interface with two separate Networks or VLANs offering a secure and hassle-free option for simple switch setups.

Ideal for the following environments:

  • Education
  • Hospitality
  • Corporate
  • Residential
  • Retail


  • Audio and Video

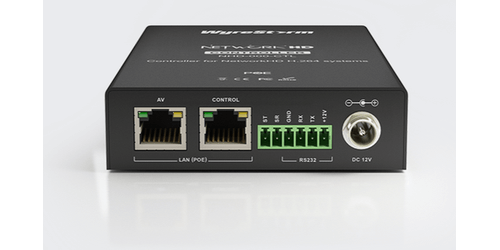

  • Inputs: 1x LAN AV - 8-pin RJ-45 female
  • Outputs: 1x LAN Control - 8-pin RJ-45 female
  • Communication and Control
  • Ethernet: 1x LAN AV - 8-pin RJ-45 female
  • 1x LAN Control - 8-pin RJ-45 female
  • 10/100 Mbps auto-negotiating
  • RS-232 : 1x RS-232 6-pin Phoenix Connector
  • Power
  • Power Supply Input: 100~240V AC 50/60Hz | Output: 12V DC 1A
  • Max Power Consumption: 1.6W
  • PoE: <15.4W | 802.3af
  • Dimensions & Weight
  • Rack Units/Wall Box: 1U
  • Height: 1.1in Width: 3.67in
  • Depth: 5.47in
  • Weight: 0.88lbs
  • Warranty: 5 years
