Wiremold TB672APBK-KIT1
Table Box w/ Power, HDMI, VGA, Audio, DisplayPort, CAT6
- Color: Your choice of black anodized aluminum or silver anodized aluminum
- Includes: 2 power on top, 1 power on the bottom, and 1 HDMI, 1 VGA, 1 Audio, 1 DisplayPort, and 1 CAT6
- Back side of connections: All are female except the CAT6 is punch down and the audio is terminal block
- Single 12' power cable
-Patrick S.
Description

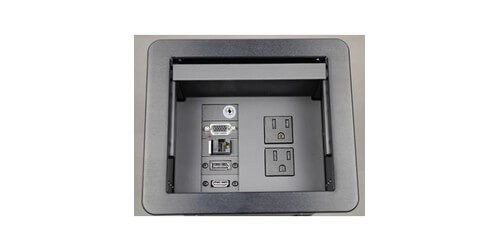

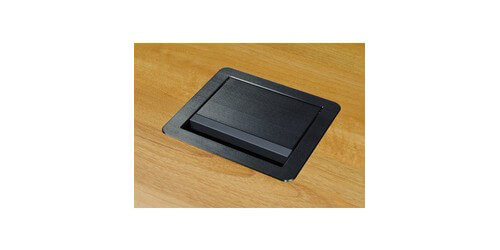

The Wiremold TB672APBK-KIT1 by Legrand is a table box with a fully retracting lid, it includes 2 power outlets and 1 HDMI, 1 VGA, 1 Audio, 1 DisplayPort, and 1 CAT6 connection. The table box comes in a high quality anodized aluminum finish with your choice of black or silver.

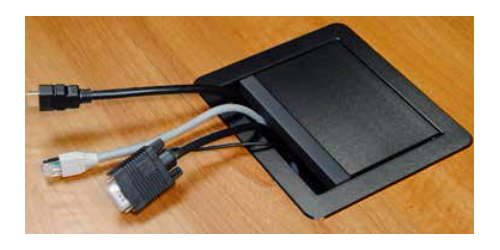

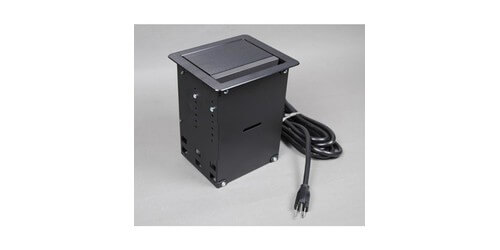

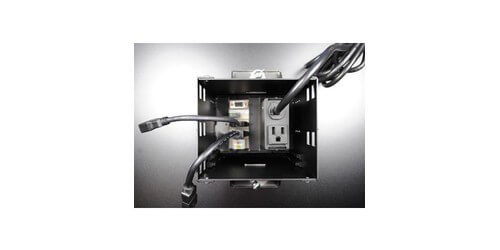

The lid retracts all the way down into the box, this is a great feature because it allows users from both sides of the table to access the connections without a lid in the way. The lid also has a small gap next to the soft touch handle that allows cables to be plugged in with the lid closed. Another great feature of the TB672APBK-KIT1 is there is a third outlet on the under side of the box, this convenience outlet is ideal when you need to plug in another item such as a lamp or any other components under the table. The connections in the box can be installed anywhere from your choice of 1" to 4" from the top of the box, this is to allow for cables with varied head size or if you need cable storage.
Installation is easy and takes only minutes, just cut the hole in your table and secure to the underside of your table with the included bracket and set screw. Since this unit is modular you can easily change your connections as your needs change, future-proof your audio video connection needs at your table with the Wiremold TB672APBK-KIT1.
Not seeing the connections you need? The Wiremold TB672 can be customized with your desired connections, if you need help configuring this model to meet your conference room needs please call us at 888-999-3759, click here to email us, or via Live Chat.
Specifications
- Fully retracting lid
- Bezel dimensions: 6 15/16" x 6"
- Depth under table: 8 1/4"
- Cutout size: 6 7/16" x 5 1/2"
- cETL listed for USA and Canada
- Warranty: 1 year
