Home > AV Testing Equipment -> HDMI Signal Generators -> tvONE -> 1T-TG-620 HDMI Signal Generator

tvONE 1T-TG-620

HDMI Signal Generator

Discontinued Product
This product has been discontinued.
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
0 out of 5 based on 0 ratings.

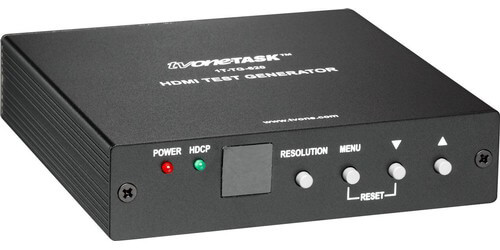

The tvONE 1T-TG-620 is an HDMI test generator used to test the correct operation of your HDMI sources.  The generator sends out 8 different types of test signals including color bar, gray scale, purity, black/white line, gradual, Grid, HDCP, and H, dot, and motion pattern.  The generator can accept an audio source to be embedded via SPDIF or you can let the generator embed the audio internally.  Not only does it test your video but also HDCP, use the device to test for HDCP functionality. Use the front panel buttons to control the device or the included IR remote control via the On Screen Display.

The tvONE 1T-TG-620 is an affordable solution to test, analyze, and make sure all your HDMI and DVI equipment is working correctly.  Use a DVI to HDMI adapter to test your DVI sources.

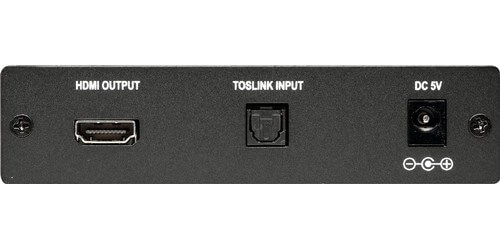

  • Audio input: 1 SPDIFF
  • Video output: 1 HDMI
  • Resolution: Up to 1080P and WUXGA
  • Compliancy: HDMI v1.2, HDCP 1.1, DVI 1.0
  • EDID support
  • Warranty: 3 years
  • Dimensions: 1.2"x4.9"x4.9"
  • Weight: .72lbs
  • Includes: Power cord, remote control
