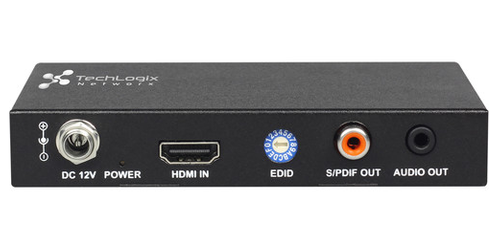

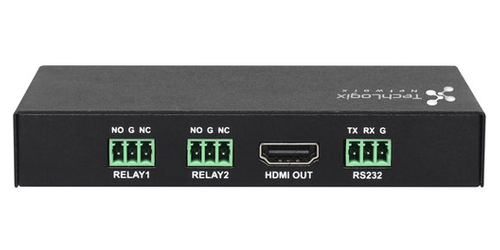

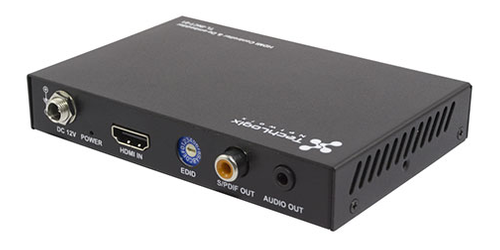

TechLogix TL-INCT-01
In-Line HDMI Controller and De-Embedder

Satisfaction Guaranteed!
Manufacturer SKU: 1008-0802
Regular Price: $425.00
Instant Savings: -$95.00
Quantity: $330.00
0 out of 5 based on 0 ratings.

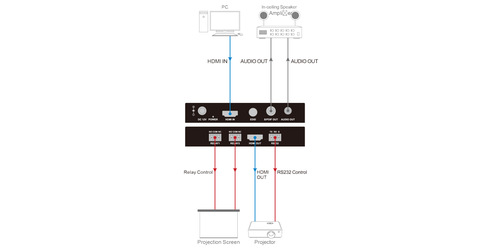

TechLogix's TL-INCT-01 is the ultimate replacement for remote controls. Set this box in-line between your source and the display, and the TL-INCT takes it from there. It senses the HDMI stream and outputs control signals to connected devices.

  • Digital and analog audio de-embedding
  • Display Controls
    • CEC controller
    • RS232 learning
    • Relay outputs
  • 15 EDID presets
  • 4K@60 compliant
  • HDCP 2.2 compliant
  • Cable equalization and signal regeneration
  • Built-in ESD and surge protection


  • Input: 1 x HDMI IN
  • Input Signal Type: HDMI 2.0 with HDCP 2.2
  • Input Resolution Support (VESA): Up to 1920x1200@60Hz
  • Input Resolution Support (SMPTE): Up to 4096x2160@24/25/30/50/60Hz
  • Input Video Level: 0.5-1.2 V p-p
  • Features Input DDC Signal: 297MHz
  • Output: 1 x HDMI OUT
  • Output Signal Type: HDMI 2.0 up to 4K@60Hz(4:2:0 10-bit) and HDCP 2.2
  • Output Resolution Support (VESA): Up to 1920x1200@60Hz
  • Output Resolution Support (SMPTE): Up to 4096x2160@24/25/30/50/60Hz
  • Video Impedance: 100 Ohms
  • Operating Temperature: 0 C to 45 C (32 F to 113 F)
  • Storage Temperature: -20 C to 70 C (-4 F to 158 F)
  • Humidity: 10% to 90%, non-condensing ESD Protection: Human-body Model: 8kV (Air-gap discharge) / 4kV (Contact discharge)
  • Surge Protection Voltage: 1 kV (Ten times respectively for the positive and negative voltage)
  • Electrical Fast Transient/Burst Data communication cord: 1 kV Power cord / 2 kV
  • Power Supply DC 12V 0.5A
  • Power Consumption (Maximum): 2 W Device Dimension (W x H x D) 120mm x 20mm x 80mm / 4.72'' x 0.79'' x 3.15''
  • Product Weight: 0.23kg
  • Certification: CE, FCC, RoHS
  • Warranty: TechLogix warrants that products will be free from defects in materials and workmanship for three years.
