TechLogix TL-CAV-01-HDV

All-in-One AV System with 1 HDMI 1 VGA Input

Satisfaction Guaranteed!
Manufacturer SKU: 1002-9808
Regular Price: $1,999.00
Instant Savings: -$199.00
Quantity: $1,800.00
0 out of 5 based on 0 ratings.

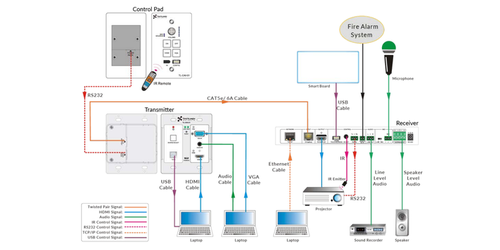

TechLogix TL-CAV-01-HDV is your all-in-one AV system, ready for you and your AV environment. The system includes 2 HDMI inputs, and features audio and video routing and control. The face plate provides source selection and volume control. The TL-CAV-01-HDV includes the following items to complete your AV system:

  • (1) included wallplate transmitter
  • (1) included wallplate controller
  • (1) included surface-mount receiver/processor
  • (1) HDMI & (1) VGA source input on the wallplate
  • Automatic switching with connection sensing
  • Manual control via IR and RS232
  • USB pass-through for interactive whiteboard integration
  • Single twisted pair connectivity
  • Mic/line input with 48V phantom power
  • HDMI output with audio de-embedding
  • Built-in 2x20W 4Ω amplifier
  • TCP/IP connectivity for system wide monitoring and diagnostics
  • Firmware upgradeable via USB thumb drive
  • IR learning for control of connected devices

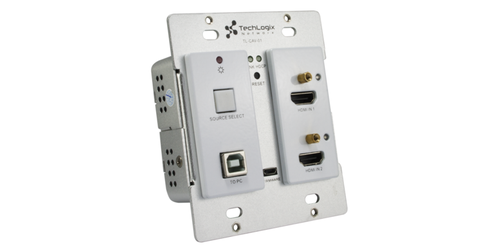

  • Wall Plate Transmitter I/O Connections
  • HDMI Input: 1 Type A receptacle
  • VGA Input: 1 HD-15 receptacle
  • Analog Audio Input: 1 3.5mm stereo audio jack
  • HDBT Output: 1 RJ45
  • USB Control: 1 Type-B receptacle
  • Source Select Button: 1 white button, blue back light
  • Reset Button: 1 covered button
  • Firmware Update: 1 covered USB Type B micro receptacle
  • Power + RS232: 1 RJ45 receptacle

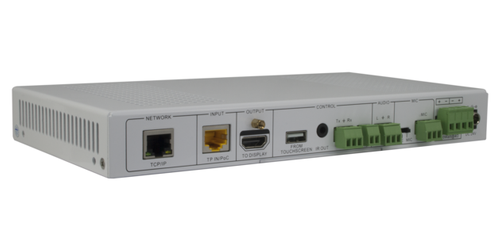

  • Surface Mount Receiver Processor I/O Connections
  • HDBT Input: 1 RJ45 receptacle
  • HDMI Output: 1 Type A receptacle
  • Audio Input:1 MIC, 3-pin captive screw connector
  • Audio Outputs: 1 Amplifier output, 4-pin captive screw connector, 1 Line out, amplifier loop audio, 3-pin captive screw connector
  • TCP/IP Control: 1 RJ45 receptacle
  • RS232 Control: 1 3-pin captive screw connector
  • IR OUT: 1 3.5mm stereo audio jack USB Control: 1 Type A receptacle
  • Remote: 1 2-pin captive screw connector

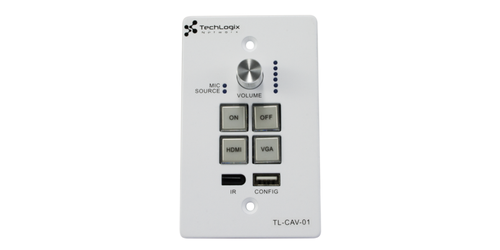

  • Switch:1 2-pin dip switch Wall Plate Control Connections
  • Volume/Control: 1 Knob
  • Button: 4 white buttons, blue back light
  • USB: 1 Type-A receptacle
  • IR: 1 Built-in IR receiver
  • RS232 + Power: 1 RJ45 receptacle
  • Supported Video, Audio and Control
  • Maximum Video Compatibility (HDMI): Deep Color 48/36/30/24 Bit at 1080p
  • Maximum Video Compatibility (VGA): 1920x1200
  • Maximum HDBT Transmission Distance: 30m (98ft)
  • EDID: Pass-through from display
  • VGA EDID: 1360x768
  • Supported VGA Input Resolutions: Up to 1920x1200
  • Supported VGA Output Resolutions: Up to 1920x1200
  • HDCP: HDCP1.4 compliant
  • HDMI Embedded Audio: Up to 8 channel, Dolby Digital TrueHD, and DTS-HD master audio
  • Amplifier/Line Out Frequency Response: 20 Hz~20 KHz Analog Audio Output Impedance: 50
  • IR Carrier Frequency Range: 33-55KHz at 5V
  • USB Transmission Rate: USB 2.0 standard compliant
  • TCP/IP control: Built-in GUI
  • Chassis and Environmental
  • Enclosure: Painted aluminum
  • Transmitter Dimensions: US style double gang with decora inserts
  • Receiver/Processor Dimensions (W x H x D): 250mm x 31mm x 130mm
  • Controller Dimensions: US-style single gang
  • Shipping Weight (Kit for three parts): 1.8 Kg
  • Operating Temperature (Environment): 0 ~ 40 C (32 ~ 104 F)
  • Operating Temperature (Chassis) 45 C (113 F)
  • Operating Humidity (Environment): 10% ~ 90% Non-condensing
  • Storage Temperature (Environment): -15 ~ 70 C (5 ~ 158 F)
  • Storage Humidity (Environment): 10% ~ 90% Non-condensing
  • Power, ESD, Regulatory
  • Maximum Power Consumption: 55W
  • Power Supply: DC 24V at 2.71A
  • ESD Protection: 15KV
  • Regulatory: CE, FCC
  • Other
  • Standard Warranty: 3 Year
