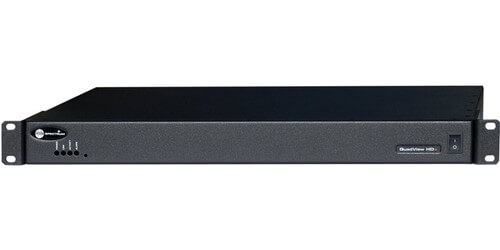

RGB Spectrum QuadView HDx
Quad Processing Multiviewer 8x2 - HDCP Compliant

Manufacturer SKU: QV HDx
Satisfaction Guaranteed!
This product has been discontinued.
Product Highlights
  • Real-time, dynamic window scaling
  • Programmable Presets
  • HDCP Compliant
  • Inputs: 4x (on DVI-I, digital only), 4x (on 15-pin HD), Background 1x (on DVI-I, digital only)
"Quick and easy to find what I was looking for."
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

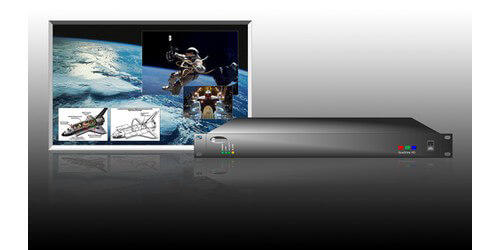

The QuadView HDx by RGB Spectrum is a high-resolution HD, DVI, RGB Quad processing Multiviewer. RGB Spectrum sets high standards for quality and excellence in the multiviewer world. Using powerful quad video processing combining real-time processing and outstanding screen image quality, with an array of unmatched features, this multiviewer is ideal for applications that require the display to house multiple images on a single monitor or projection screen.

Taking picture in picture to the next level this QuadViewer can accept up to 8 high resolution DVI, RGB and HD video signals, and can display any 4 simultaneously in a completely customizable user defined pattern. Whether you want to break the screen up in to 4 equal parts, have one main image and 3 smaller partitioned areas, 3 large sections, and one smaller section, how ever you want to choose this multiviewer can be set up to suit your viewing needs. Additionally these video inputs can be cycled through a single window on screen at user-selected intervals which would be an ideal feature for small security monitoring applications. This multiviewer supports an extensive range of input and output resolutions up to 1080p at 24-bit color depth and has the ability to for users to create custom files for non-standard resolutions.

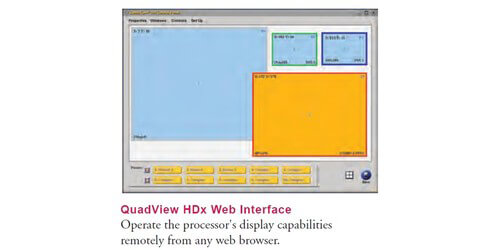

With that the QV UHDx features state of the art deinterlacing and scaling, which enables images to be sized and positioned anywhere on the screen, even allowing for the images to be panned or zoomed if the need to highlight specific areas on the screen occurs. Make your displays truly unique as this system will support a wide range of creative layouts, including overlapping windows. Another great optional feature of the QV UHDx QuadView is RGB Spectrums patented SinglePointTM KvM, this makes it so operators can control all displayed source computers with a single keyboard and mouse and a displayed on screen cursor. Also offered by this high end processor is an HDCP option that allows protected high-definition content to be displayed. With ease of use and setup, controlling the QV UHDx is handled by using either a standard web browser to access RGB Spectrums Intuitive Web Control Panel (WCP), a command line interface through RS-232, or Ethernet port.

RGB Spectrum provides a long tradition of quality and reliability, the QuadView MultiViewers provide outstanding to solutions for multi-window video and graphic display requirements, in even the most demanding of environments.





Specifications

  • Real-time, dynamic window scaling
  • Programmable Presets
  • HDCP Compliant

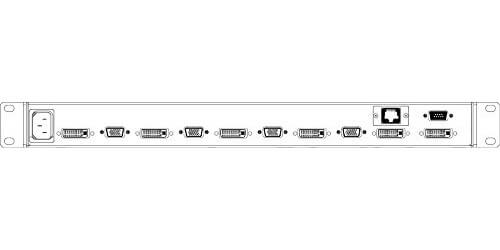

  • Inputs: 4x (on DVI-I, digital only), 4x (on 15-pin HD), Background 1x (on DVI-I, digital only)
  • Outputs: RGB 1x (on DVI-I), DVI single-link 1x (on DVI-I)
  • Resolution: 640x480 to 1920x1200, 2048x1152, 720p, 1080i, 1080p
  • DVI input cable equalization
  • Pan and zoom, titles and borders
  • Color Depth: 24-bit NTSC/PAL Input option
  • Integrated KVM option
  • On screen cursor control
  • Frame Rate: Up to 200 Hz
  • Clock Rate: Up to 165 MHz
  • Control: Ethernet 10/100Base-T, Telnet RS-232, Web interface
  • Power: 100-240 VAC auto ranging 50/60 Hz, &ln
  • 45 W
  • Cable Equalization: Automatic or manual, up to 164' DVI
  • Dimensions: 17" x 13.5" x 1.75" (WxDxH) Weight: 13.5lbs
  • Compact 1RU chassis
