RGB Spectrum DVI TRPS-M1
XtendView FiberDVI Transmitter & Receiver Kit, HDCP - 1300'

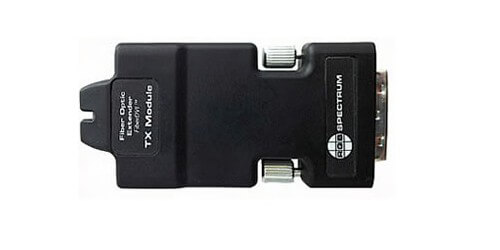

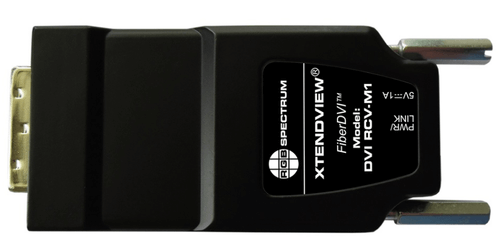

The DVI TRPS-M1 from RGB Spectrum's XtendView FiberDVI extender family is a compact single fiber DVI cabling solution for distances up to 1300'. The FiberDVI extender consists of transmit and receive plug-in modules, with industry standard SC type jacks for easy connection of the fiber. This "all-in-the-headshell" DVI extender solution uses miniaturized electronics that fit entirely within the DVI connector housing, eliminating the need for external boxes and cables and greatly simplifying installation. The DVI XMT-M1 transmitter will convert the electrical signals to optical signals and then the DVI RCV-M1 receiver decodes the optical signal back into electrical signals with resolutions up to 1920x1200 and 2048x1152.
The primary features of the FiberDVI adapters is a return data channel that supports real-time EDID pass-through and HDCP. EDID, and HDCP authentication data are transmitted in one direction while the DVI video is transmitted in the other direction, requiring only a single fiber optic cable for transmission of all signals. These adapters will also support embedded audio in HDMI signals. These devices may be powered externally or through pin power, which eliminates the need for external power supplies. Another great reason for the use of this device is the fact that fiber optics is ideal for transmitting DVI signals over moderate to longer distances because it is lightweight, secure, and immune to EMF and RFI interference.
The XtendView Fiber DVI adapters work with all of RGB Spectrum's products to add the benefits of fiber transmission to any signal routing, display processing, or video wall solution.

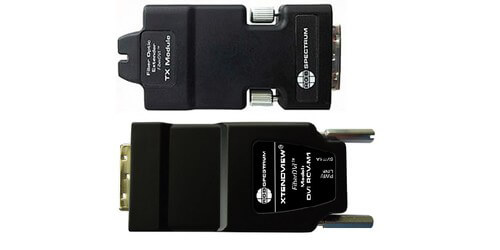

- DVI TRPS-M1 inlcudes: 1 transmitter and 1 receiver, 2 power supplies
- Extension Range: up to 1300' with OM3 or better fiber optic cable
- Format: Single-link
- Resolutions: Up to 1920x1200 and 2048x1152
- HDCP Compliant
- Supports HDMI with embedded audio
- Connectors: DVD-D, SC, Power
- Power: 5V DC @ 0.5 amp
- Fiber Type: Multimode
- Power Options: Pin-power or external supply (included)
- Warranty: 1 Year
