Presentation Switchers IN607
HDMI and VGA Combo Input Card Board Assembly - 1080p / 4K
- HDMI Video Input Specs:
- Input: 1 HDMI, Type A, female, single link
- HDTV Resolutions up to 1080p @ 60 Hz, 720p/1080i @ 120 Hz, or 4K @ 24Hz
- PC Resolutions up to WUXGA (1920 X 1200)
-Patrick S.
Description

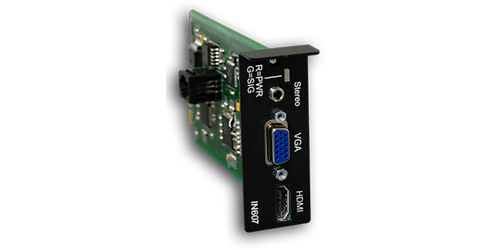

The IN607 from Presentation Switchers is a HDMI / VGA Combo Input Card Board Assembly that has been designed for use with all PS600 series Modular Presentation Switcher Enclosures. This board is used to connect audio-visual source devices using HDMI or VGA connectors. The IN607 can provide HDMI resolutions up to full HD 1080p as well as 4K@24Hz, with the VGA interface being able to provide computer resolutions up to 1920 x 1200. By default the output from this card will auto switch to the most recent active signal plugged in, however users can switch between the two signals via front panel buttons on the enclosure. For example if you plug in an HDMI input from a laptop, the device will generate that output signal, if at a later time a VGA connector is hooked up, the card will auto-switch to that signal making the signal available for the enclosure to route to the appropriately selected display.
INSTALLATION
Installation of the IN607 is quick and painless. The IN607 is a hot swappable card. To install the card, simply remove the single mounting screw that holds the IN600 Future Expansion Plate or other card where you plan to install the IN607. After removing the old plate, insert the new IN607 assembly. With proper alignment less than 1 foot pound of pressure is required to insert the card. Replace the screw to ensure the card is securely mounted in the chassis. Once installed, the system automatically recognizes the new board. No further activity is required. However, in some cases, it may be necessary to adjust the audio input trim to a nominal input level. See the Installation Manual for more details regarding audio input adjustments.
Specifications
- Audio Support: Digital Audio: Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio
- HDMI 1.4a, EIA/CEA-861D
- 297 MHz Max TMDS Clock Rate
- HDCP V1.4
- EDID: Passthru or Table Lookup, selectable
- Indicators: 1 LED (Red = Power, Green = Video Signal Present on Input, or White = Source selected)
- VGA Video Input Specs:
- Input: 1 HD-15, RGBHV, female
- PC Resolutions up to 1920 X 1080p or UXGA (1600 X 1200) @ 60Hz
- Voltage: 0.63 V to 0.9 Vp-p on R, G, and B
- Impedance: 75 Ohm
- EDID: Passthru or Table Lookup, selectable
- Audio Input Specs (Used with VGA Source Only):
- 1 3.5mm, Mini Audio Jack (TRS), unbalanced stereo, female
- Gain: 0 dB
- Freq Resp: 20 Hz to 20 kHz, +/- 0.05 dB
- THD+N: 0.01% @ 1 kHz at nominal level
- S/N: > 90 dB at Vin = 0 V, A-Weighted
- Crosstalk: < -45 dB @ 20 kHz, -70 dB @ 1 kHz or below
- Separation: > 90 dB @ 20 Hz to 20 kHz
- Impedance: > 10k Ohms unbalanced, AC coupled
- Nom Level: -10 dBV (316 mVrms)
- Max Level: +6 dBV (2 Vrms), unbalanced at 1% THD+N
- Field Upgradable, Modular Assembly
- Combination one HDMI & one VGA Inputs
- Automatically Switches to most recent Active Source
- Converts Analog Video to Digital
- Combines Audio with Video on Digital Outputs
- Built-in ESD Protection
- Certifications: CE, RoHS
- Built-In ESD Protection
- Dimensions (HxWxD): 3" x 1.2" x 6"
- Weight: 0.5lbs
- Warranty: 3 Years, Part and Factory Labor
