Presentation Switchers IN507
HDMI and VGA Input Board for PS510
Part #: IN507
This product has been discontinued
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top IN507 Specifications
- Inputs: 1 HDMI, 1 VGA, 1 audio
- HDMI V1.3 Compliant with Deep Color
- Scales up to 1080P
- HDCP compliant on HDMI out
"Very convenient and great customer support."
-Lynn Y.
-Lynn Y.
Contact a product specialist!
Proudly supporting our customers since 2008
Description

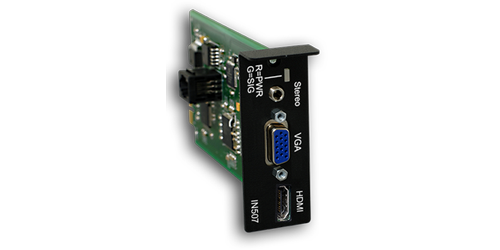

The Presentation Switchers IN507 is an input card for the PS510 modular 4 input auto switcher. The card features 1 HDMI, 1 VGA, and 1 stereo audio connection. The connections automatically switch to the last plugged in input and switch on the HDMI out with embedded audio. The VGA is automatically scaled and converted on the HDMI output. The card is easy to install and is even hot swappable making for quick changes in the field.
Specifications
- Digital Audio: Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio
- Converts analog audio in to digital audio embedded on HDMI out
- EDID pass through
- LED indicator light
- Dimensions: 3.0" x 1.2" x 6.0"
- Weight: .50lbs
- Warranty: 3 years
Downloads
Reviews
There are currently no reviews for this product.
