Home > Group Collaboration -> Wired -> Pointmaker -> Pointmaker -> CR-100 Courtroom Annotation System, HDMI, HDCP, and Scaler to 1920x1200

Pointmaker CR-100
Courtroom Annotation System, HDMI, HDCP, and Scaler to 1920x1200

Satisfaction Guaranteed!
Part #: CR-100
Regular Price: $3,895.00
Instant Savings: -$200.00
Quantity: $3,695.00
0 out of 5 based on 0 ratings.

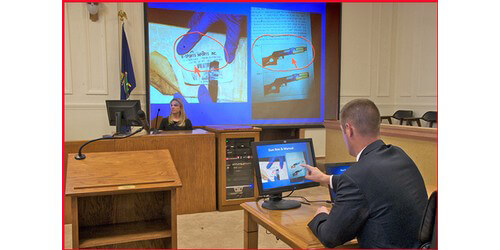

The CR-100 from Pointmaker was designed as a quick to use, easy to install true plug-n-play Courtroom Annotation System for touch devices with a built-in scaler to 1920 x 1080p. This device was made to provide annotation to any video looped through the CR-100 when connected as an input (and output from) on a matrix switcher. It allows for judges, lawyers, witnesses etc.. to use a touch screen device to annotate or highlight over details in documents, photos, slides or AV images present on the display. The unit is based on a "1-in-1-out" concept (HDMI In/Out) making for a very simple straight forward installation. You can also quickly connect the CR-100 in smaller courtroom installations that use only a laptop or document camera. The CR-100 features a faster and smoother switching between AV sources connected to the Pointmaker, using refined technology and a simplified design for increased reliability and compatibility.

Control of the CR-100 has an array of options, not only does it work with hundreds of non-HID (Human Interface Device) devices, it also will recognize HID-compliant touch screens, allowing for a greatly expanded list of compatible models. It will support color printing through a Postscript printer, and you can save multiple annotated images to a USB stick, TFTP, or by setting up a Windows Share on your computer to make items ready for future viewing. This device is also HDCP compliant, has HDMI audio pass-through, and supports HDMI video up to 1920 x 1200 resolutions. The CR-100 comes with 12v power supply, USB keyboard, USB stick, rack ears (fits standard 19" space), and is backed by a 1 year warranty from Pointmaker.

Pointmaker offers free training for this device, downloadable from the Apple App Store. Click Here to go to the App Store and download the free PVI Trainer iPad app.

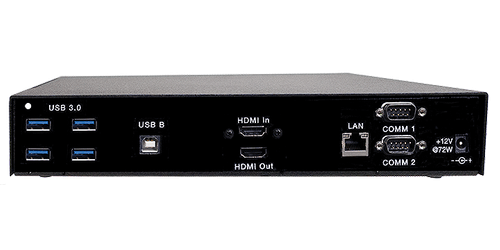

  • Video Input: 1 video input connector, 1 HDMI
  • Video Output: 1 video output connector, 1 HDMI
  • Resolutions: Up to 1920 x 1080
  • Scales HDMI video up to 1920 x 1200 resolution
  • HDCP Compliant
  • UBS Ports: 4 USB 3.0 ports, plus one USB B port
  • Network: LAN port for audio and video streaming, plus third-party remote control
  • Power Source: 12V 72W 6A
  • Included Accessories: 12v power supply, USB keyboard, USB stick, rack ears (fits standard 19" space)
  • Dimensions: 11.875" x 1.75" x 7.375" (WxHxD)
  • Weight: 2.5lbs
  • Warranty: 1 Year
