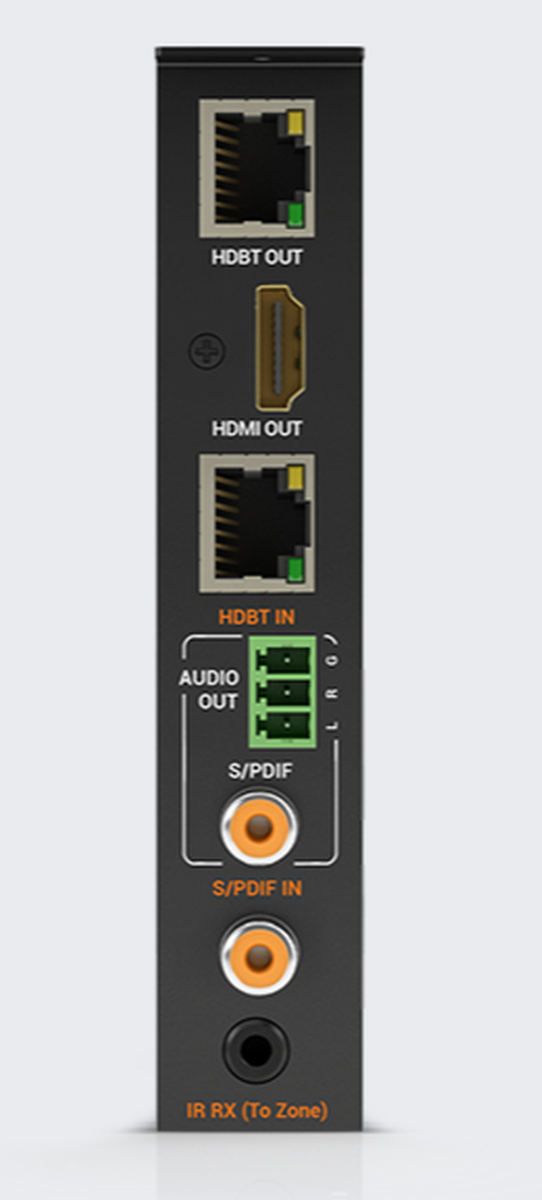

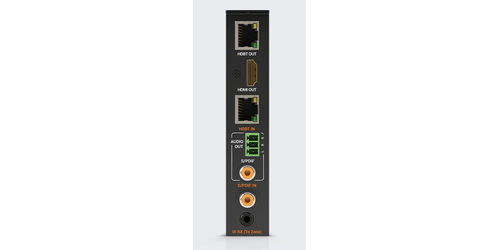

WyreStorm TX-H2X-HDBT
HDBaseT Input and HDBaseT Output Card

Part #: TX-H2X-HDBT
Satisfaction Guaranteed!
Our Price: $1,105.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $50 Off!
Top TX-H2X-HDBT Specifications
  • Audio and Video
  • Inputs: 1x HDMI In19-pin type A / 1x S/PDIF In Coaxial Digital / 1x HDBaseT 8-pin RJ-45 female
  • Outputs: 1x HDBaseT 8-pin RJ-45 female / 1x S/PDIF Out Coaxial Digital / 1x Audio Out 3pin Phoenix Connector
  • Outputs Video Encoding: HDBaseT Class A
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008


Wyrestorm's TX-H2X-HDBT input and output card allows users to de-centralize sources connected to the H2X matrix platform. The TX-H2X-HDBT sends 4K UHD transmissions from 230 feet, allowing source devices to remain in place while integrating them into the main distribution system.

The TX-H2X-HDBT input and output card is ideal in educational, governmental, corporate, and residential environments. The following attributes are key features of the TX-H2X-HDBT input/output card:

  • HDBT Input - Enables direct connection from a remote source to the matrix via an HDBaseT transmitter at the source location. Then, the matrix routes the remote source signal
  • HDBaseT Output - Transmits Class A HDBaseT signal, including video, audio, control, and power 4K signal up to 230 feet and 1080p signal up to 328 feet
  • HDMI Output - Mirrors to HDBaseT, allowing for additional local display device connection, AVR, or to extend with a hybrid active optical HDMI cable
  • Stereo Audio Output - Offers stereo audio with a 3-pin phoenix connector for analog audio
  • S/PDIF Output - Supports 5.1 audio content de-embedded from sources or ARC from connected zones
  • S/PDIF Audio Input - Injects digital audio to fully enjoy the H2X platform’s powerful audio matrix and DSP
  • IR RX - Allows control signals to be sent to the sink device



  • Encoding Data Rate: 9.2Gbps
  • End to End Latency: 10 s (micro seconds)
  • Audio Formats: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos Video Resolutions (Max) Video Resolutions: 4096x2160p @60Hz 8bit 4:4:4
  • Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock: HDMI: 600mHz | HDBaseT: 297MHz
  • Communication and Control
  • HDMI: HDCP 2.2 | DVI-D supported with adapter (not included)
  • HDBaseT: HDMI | HDCP 2.2 | 1-way PoH to Receiver | IR RX to Receiver
  • IR: 1x IR RX 3.5mm (1/8in) TRS Stereo | To Receiver over HDBaseT
  • RS-232: Matrix Control | Bidirectional over HDBaseT | Firmware Updates
  • Ethernet: From Matrix - No Connection on card | Bidirectional over HDBaseT
  • ARC (Audio Return Channel): Returns audio from displays built-in applications via ARC HDMI Input over HDBaseT (Requires ARC or SCL Receiver)
  • Power
  • Power Supply: Internal to Matrix
  • Max Power Consumption: Matrix Dependent
  • PoH: 48V 15.4W
  • Regulatory Safety and Emission: Matrix Dependent
  • Warranty: 5 years
