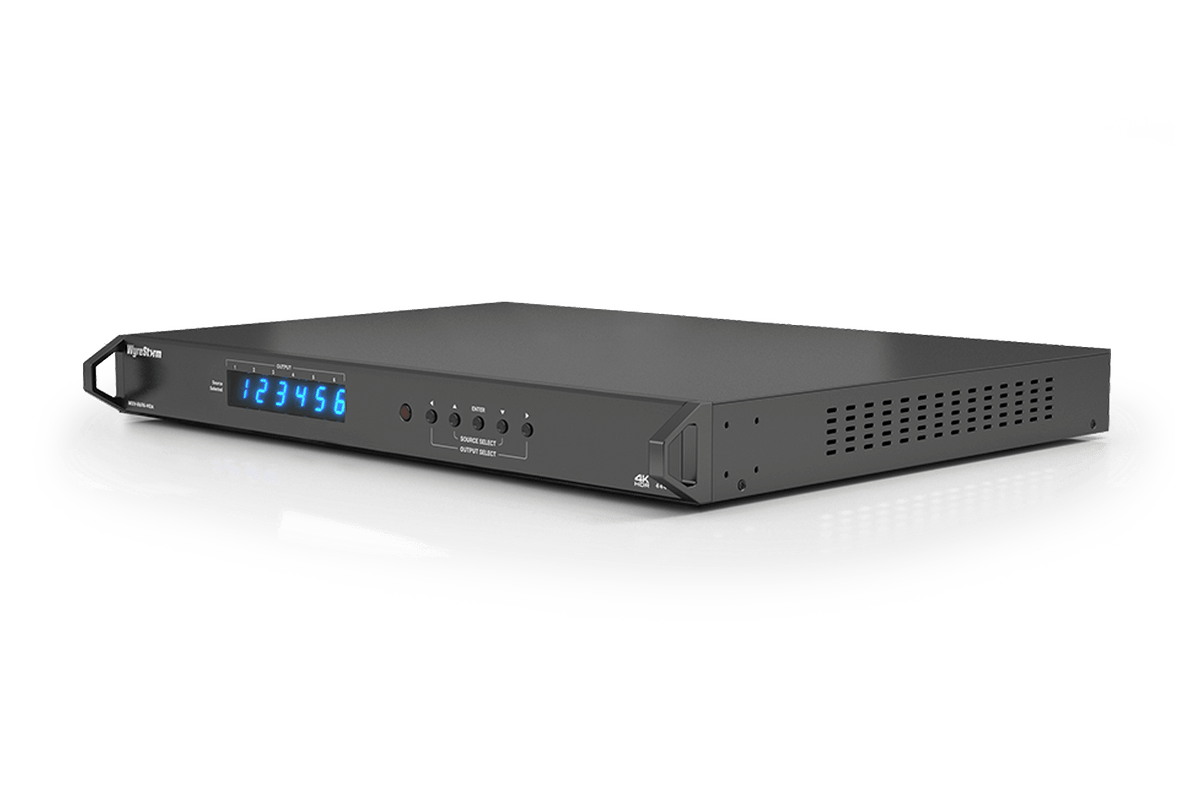

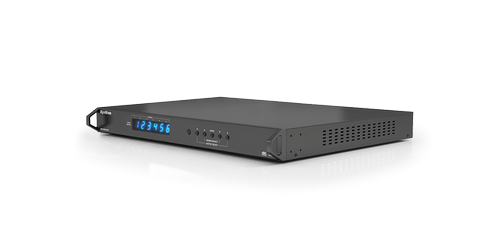

WyreStorm MXV-0606-H2A
6x6 4K HDR HDBaseT Matrix Switcher with Zone Audio De-Embed

Part #: MXV-0606-H2A
This product has been discontinued

Top MXV-0606-H2A Specifications

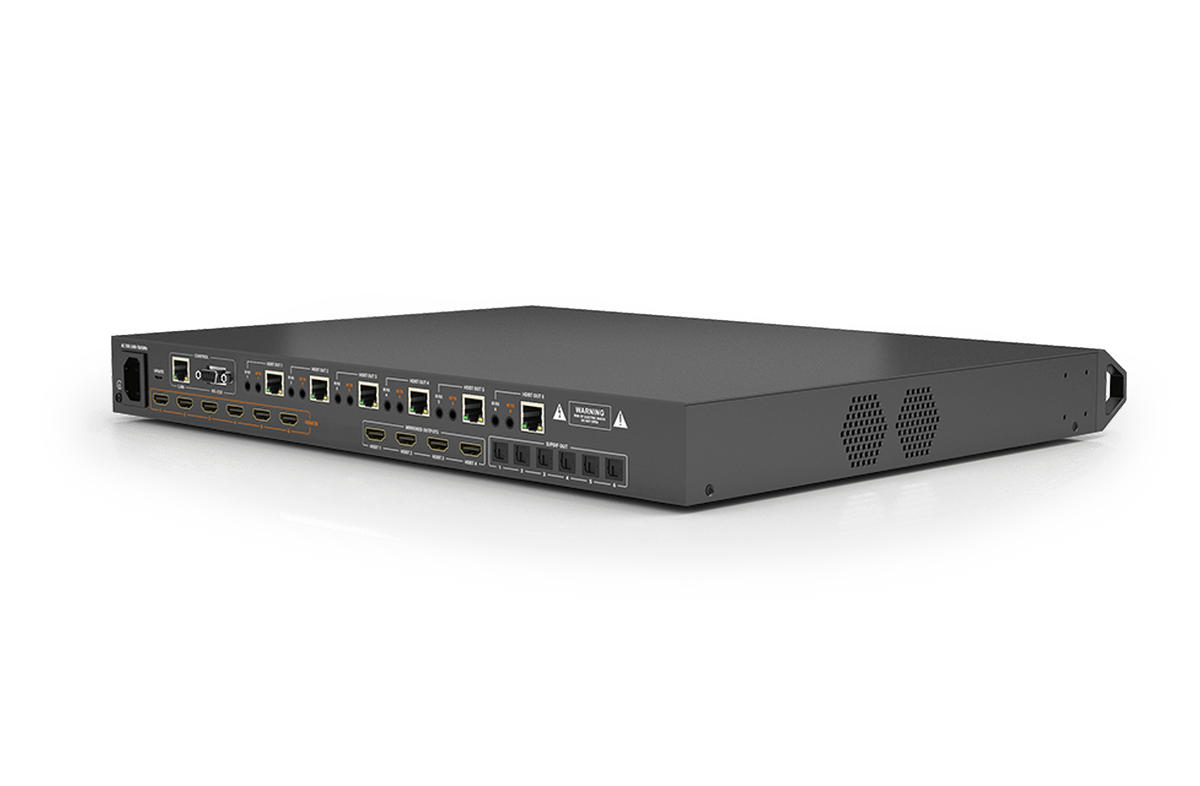

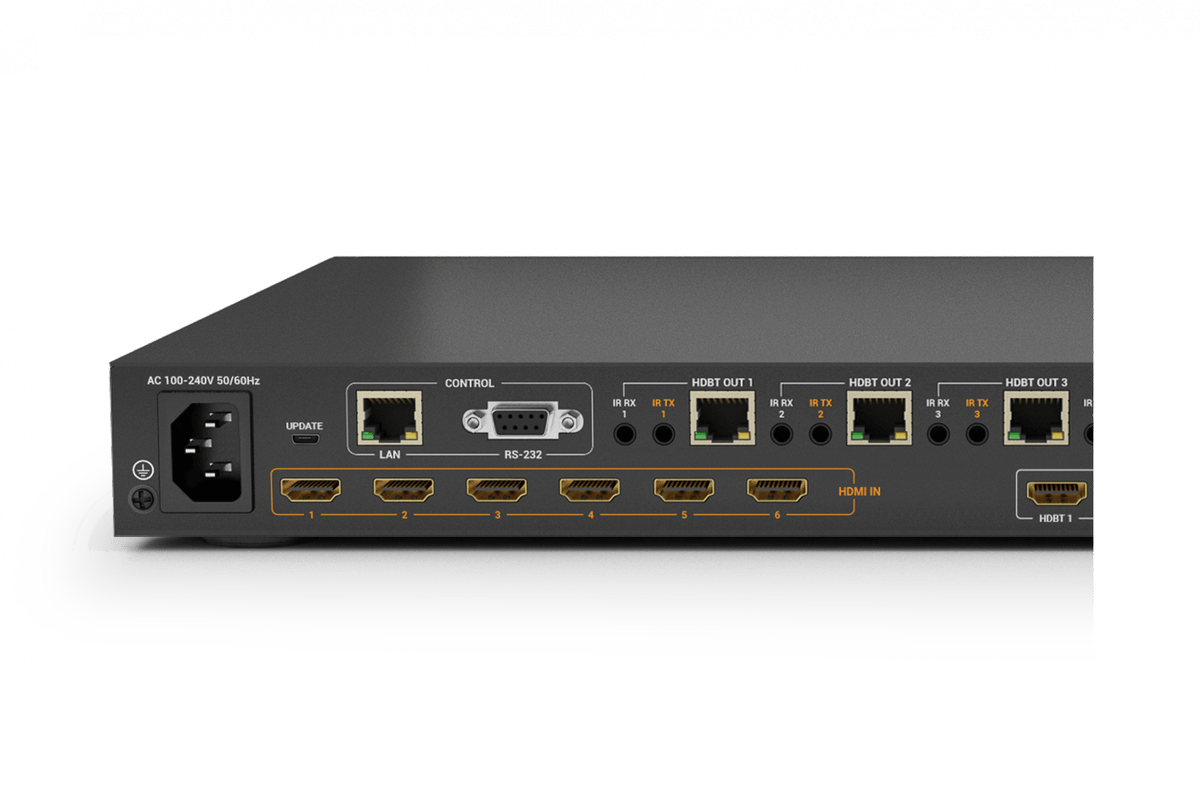

  • Inputs: 6x HDMI In: 19-pin type A Outputs: 6x HDBT Out: 8-pin RJ-45 Female, 6x S/PDIF Out: TOSLINK (Digital Optical), 4x HDMI Out: 19-pin type A
  • Output Video Encoding: HDBaseT Class B
  • Encoding Data Rate: 9.2Gbps
  • End to End Latency :10 s (micro seconds)
"Quick and easy to find what I was looking for."
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008


The Wyrestorm MXV-0606-H2A 4K HDR 4:4:4 60Hz HDBaseT 6x6 Matrix Switcher offers transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0606-H2A brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure signal integrity.

With 6 HDBaseT zone outputs and 4 mirrored HDMI outputs–which can be paired with WyreStorm’s hybrid HDMI cables or any extender–and CEC triggering for all 10 connected screens, the MXV-0606-H2A enhances the offering for the modern home or commercial installation.

Primary Features:

  • 4K HDR HDBaseT 6x6 Matrix Switch, supporting:
  • Content up to 4K/60 4:4:4 & RGB 8-bit
  • The latest HDR standards, including 60Hz HDR-10 & HLG and Dolby Vision™ at 30Hz
  • HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
  • HD Multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
  • Proprietary compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT to 35m/115ft

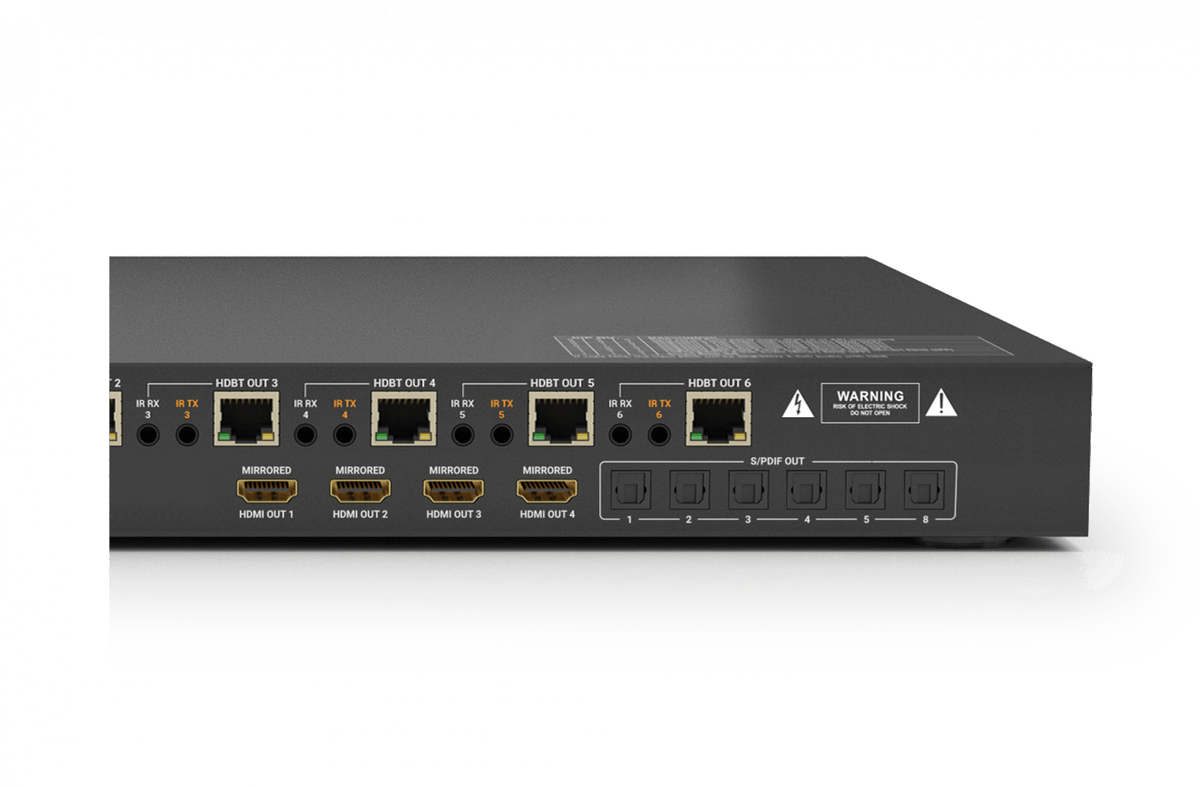

  • 4 HDMI outputs mirroring HDBaseT Outputs 1-4 for connecting additional slave screens, projectors or AVRs, bringing the total number of connected displays to 10
  • HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
  • Compatible with DVI-I and DP++ v1.3 signals from compatible devices
  • 6 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical


  • Audio Formats: Analog: 2ch Analog
  • S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch
  • HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
  • Video Resolutions: Up to 4096x2160p @60Hz 8bit 4:4:4
  • Video Range at max resolution: HDMI 10', Cat6 115', Cat6a/7 131'
  • HDMI: HDMI 2.0 | HDCP 2.2 | EDID Input supports DVI/D and DisplayPort Dual-Mode (DP++) v1.3 with adapter (not included)
  • HDBaseT: HDMI 2.0 | HDCP 2.2 | EDID | 1-way PoH | Bidirectional IR
  • CEC: CEC power triggering | Requires CEC compatibility | HDMI outputs only
  • Warranty: 5 Years
