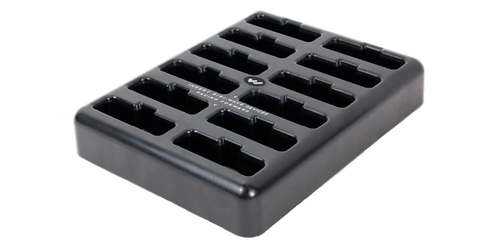

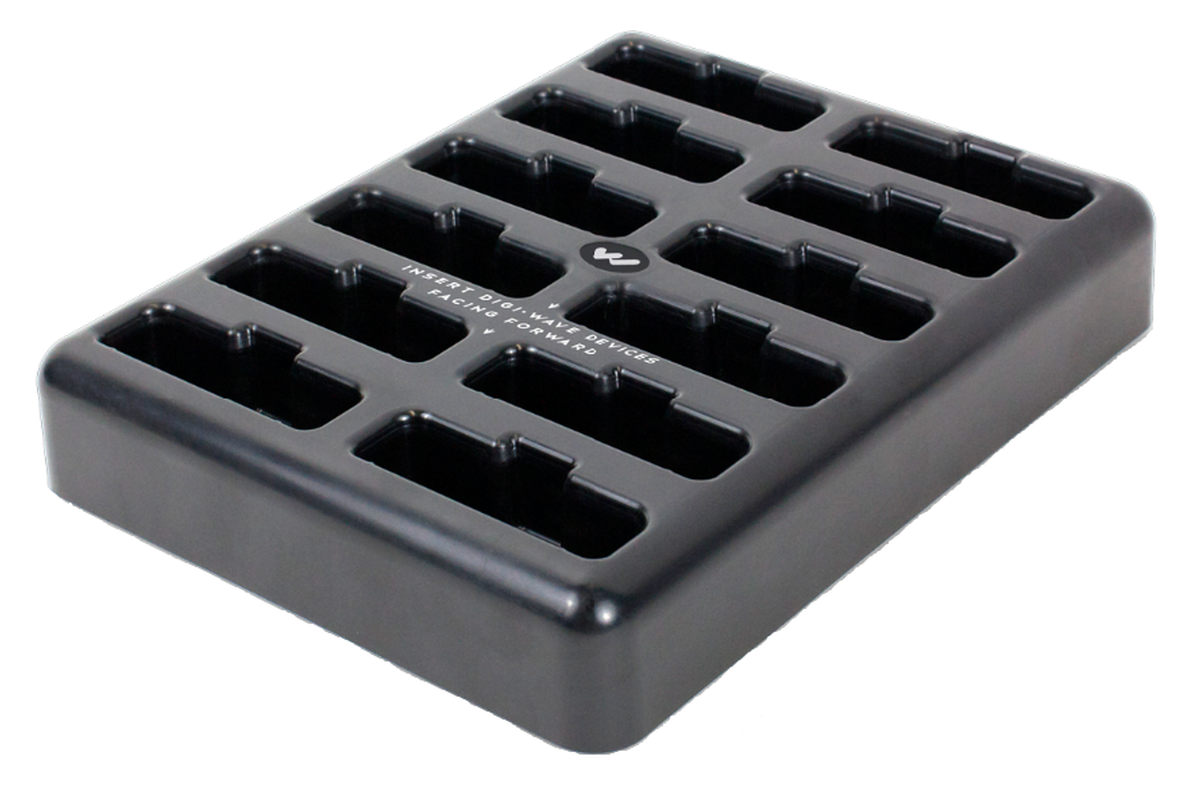

Williams Sound CHG 1012
12 Unit Charger for DLT 100

Description

The Williams Sound CHG 1012 is an innovative 12-slot, drop-in style charger. This fast-charging unit supports Williams Sound Digi-Wave DLT transceiver or DLR receivers and completes charging within 5 hours. This unit can be helpful in settings such as event production, conferences, and tours.

Specifications

• The charger shall be powered by an external universal power supply (90-240 VAC input
• 5 VDC, 6A output) via a DC barrel connector.
• Eight separate chargers, each powered by its own TFP 047 power supply, can be connected to one 15 amp circuit.
• The charger shall have CE approval and be RoHS, WEEE, Industry Canada, FCC and CB scheme compliant.
• This charger shall be the Williams Sound model CHG 1012.
• The charger housed in a carry case shall be Williams Sound model CHG 1012 PRO.
• Specifications
• Dimensions: 9"L x 7"W x 1.6"H Weight: 3.3 lbs
• Enclosure: Black ABS plastic with metal base
• Power Supply Input: TFP 047, 90-240 VAC input, 1.5 amps maximum
• Power Supply: Universal DC adapter, 5 VDC-6A outlet, center positive
• Charging time: 5 hours
• Unit Capacity: 12 units
• Compatible Units: Transceivers: DLT 300, DLT 100 2.0, DLT 100
• Receivers: DLR 360, DLR 60 2.0,, DLR 60
• Warranty: 2 years (cables, power supply warranty = 90 days)
• Approvals: CE, FCC, WEEE, RoHS, CB

Downloads

• Williams Sound CHG 1012 Specifications (PDF)
• Williams Sound CHG 1012 User Manual (PDF)
