 Home > Room Control -> Control Processors -> TechLogix -> TL-CAV-01-HD All-in-One AV System with 2 HDMI Inputs

TechLogix TL-CAV-01-HD
All-in-One AV System with 2 HDMI Inputs

Manufacturer SKU: 1002-9801
Satisfaction Guaranteed!
MSRP: $1,563.72
Our Price: $1,485.54
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top TL-CAV-01-HD Specifications
  • 60 day Lead Time ARO & non-cancelable & non-returnable

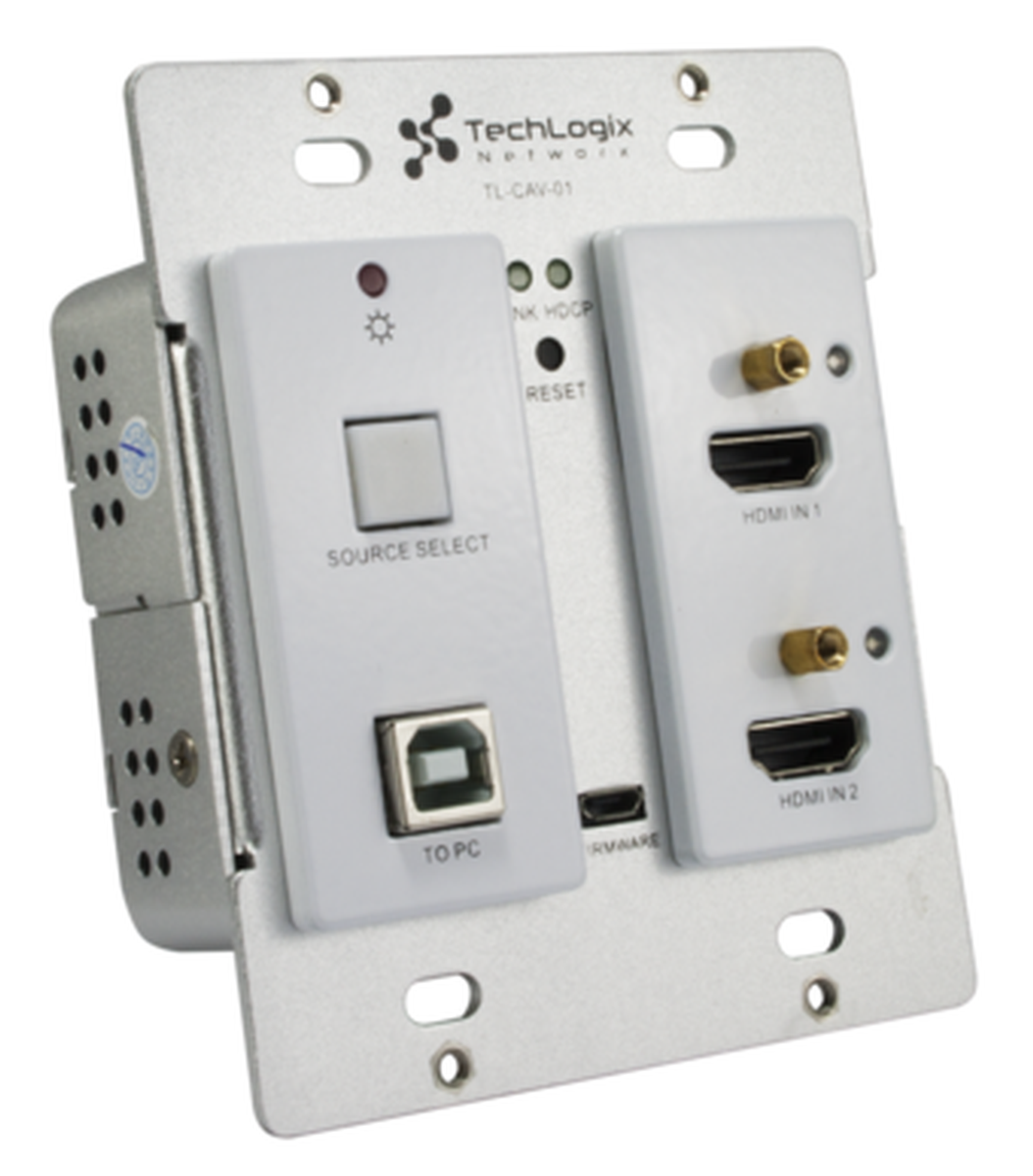

  • Wall Plate Transmitter I/O Connections
  • HDMI Inputs: 2 Type A receptacle
  • HDBT Output: 1 RJ45 receptacle
"Quick and easy to find what I was looking for."
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008

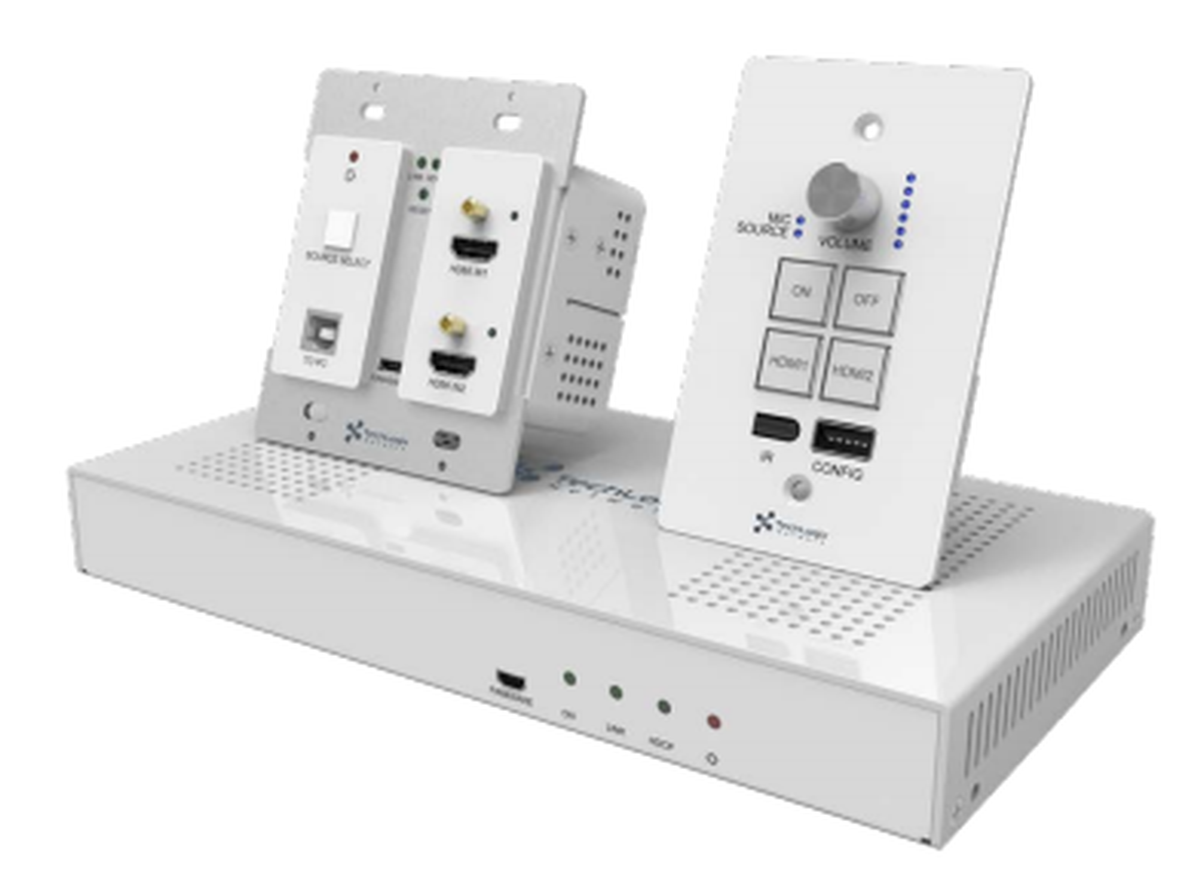

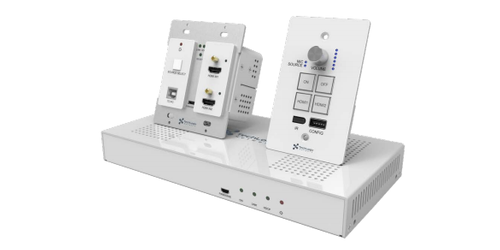

TechLogix TL-CAV-01-HD is your all-in-one AV system, ready for you and your AV environment. The system includes 2 HDMI inputs, and features audio and video routing and control. The face plate provides source selection and volume control. The TL-CAV-01-HD includes the following items to complete your AV system:

  • Installation guide
  • Power adapter
  • Mounting ears and screws
  • Rubber feet
  • Pluggable 4-pin terminal block
  • 2 Pluggable 3-pin terminal blocks
  • Pluggable 2-pin terminal block
  • IR emitter
  • USB cable
  • White face plate


  • USB Control: 1 Type B receptacle
  • Source Select Button: 1 white button, blue back light

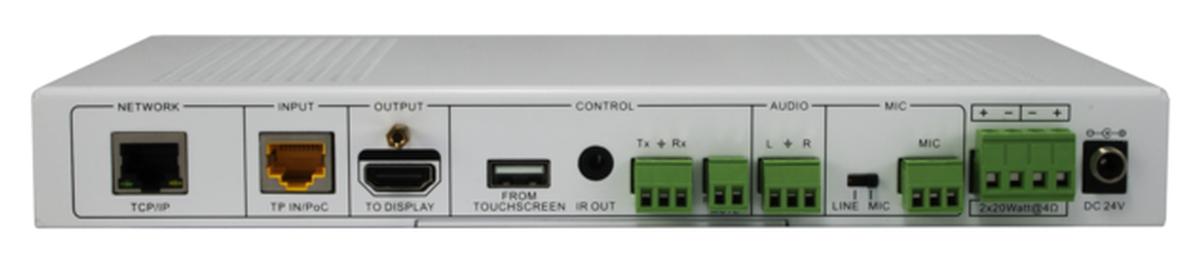

  • Surface Mount Receiver Processor I/O Connections
  • HDBT Input: 1 RJ45 receptacle
  • HDMI Output: 1 Type A receptacle
  • Audio Input:1 MIC, 3-pin captive screw connector Audio Outputs: 1 Amplifier output, 4-pin captive screw connector, 1 Line out, amplifier loop audio, 3-pin captive screw connector
  • TCP/IP Control: 1 RJ45 receptacle
  • RS232 Control: 1 3-pin captive screw connector
  • IR OUT: 1 3.5mm stereo audio jack
  • USB Control: 1 Type A receptacle
  • Remote: 1 2-pin captive screw connector
  • Switch:1 2-pin dip switch

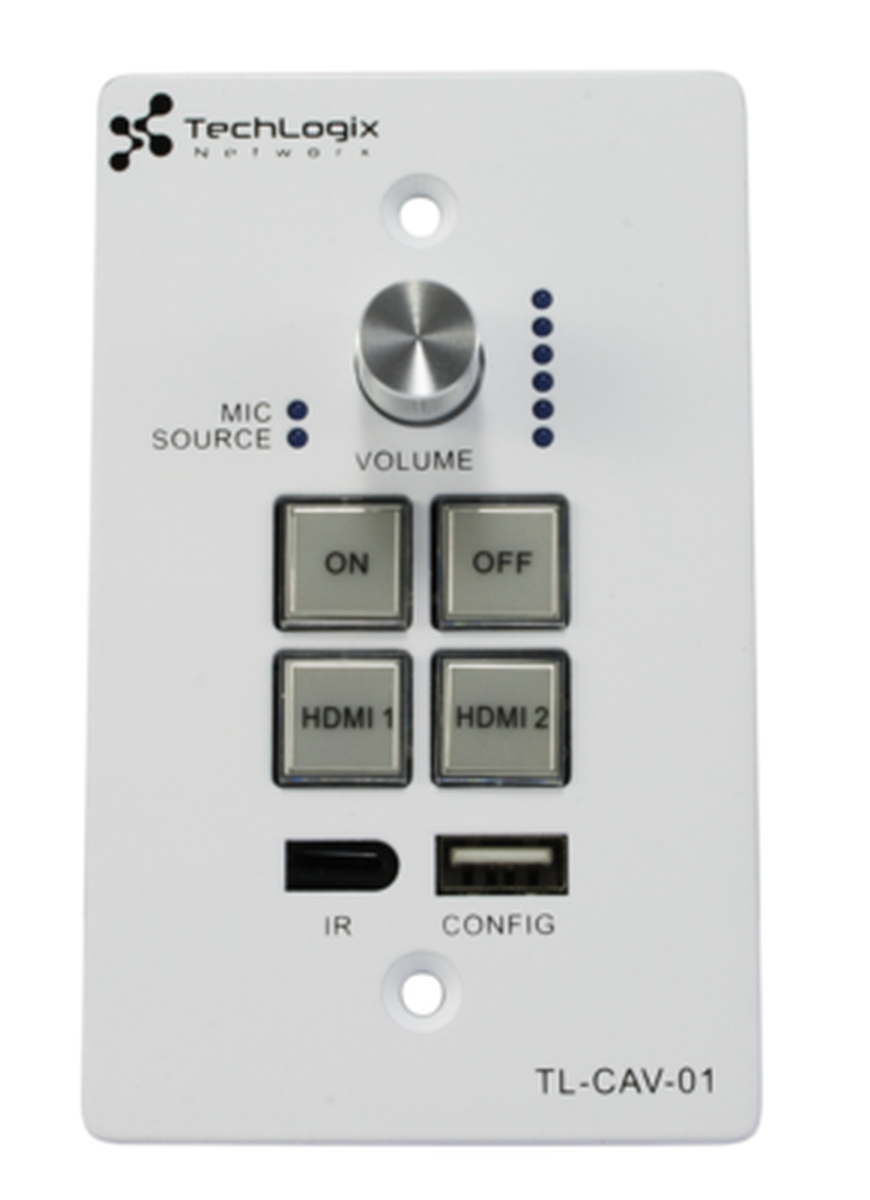

  • Wall Plate Control Connections
  • Volume/Control: 1 Knob
  • Button: 4 white buttons, blue back light
  • USB: 1 Type-A receptacle
  • IR: 1 Built-in IR receiver
  • RS232 + Power: 1 RJ45 receptacle
  • Supported Video, Audio and Control
  • Maximum Video Compatibility: Deep Color 48/36/30/24 Bit at 1080p
  • Maximum HDBT Transmission Distance: 30m (98ft)
  • EDID: Pass-through from display
  • HDCP: HDCP1.4 compliant
  • HDMI Embedded Audio: Up to 8 channel, Dolby Digital TrueHD, and DTS-HD master audio
  • Amplifier/Line Out Frequency Response: 20 Hz~20 KHz
  • USB Transmission Rate: USB 2.0 standard compliant
  • TCP/IP control: Built-in GUI
  • Transmitter Dimensions: US style double gang with decora inserts
  • Receiver/Processor Dimensions (W x H x D): 250mm x 31mm x 130mm
  • Controller Dimensions: US-style single gang
  • Maximum Power Consumption: 55W
  • Standard Warranty: 3 Year
