Shure MX202B/C
Microflex Overhead Cardiod Microphone w/ In-Line Preamp - Black

Part #: MX202B/C
Satisfaction Guaranteed!
MSRP: $269.00
Our Price: $207.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top MX202B/C Specifications
  • Transducer: Condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 50Hz - 17kHz
  • Output Impedance: 180 ohms actual (EIA rated at 150 ohms)
"Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008

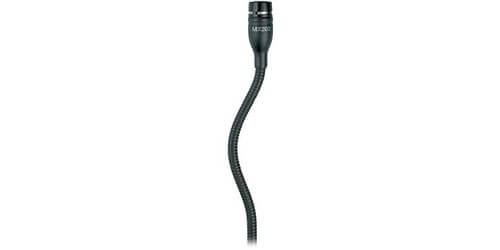

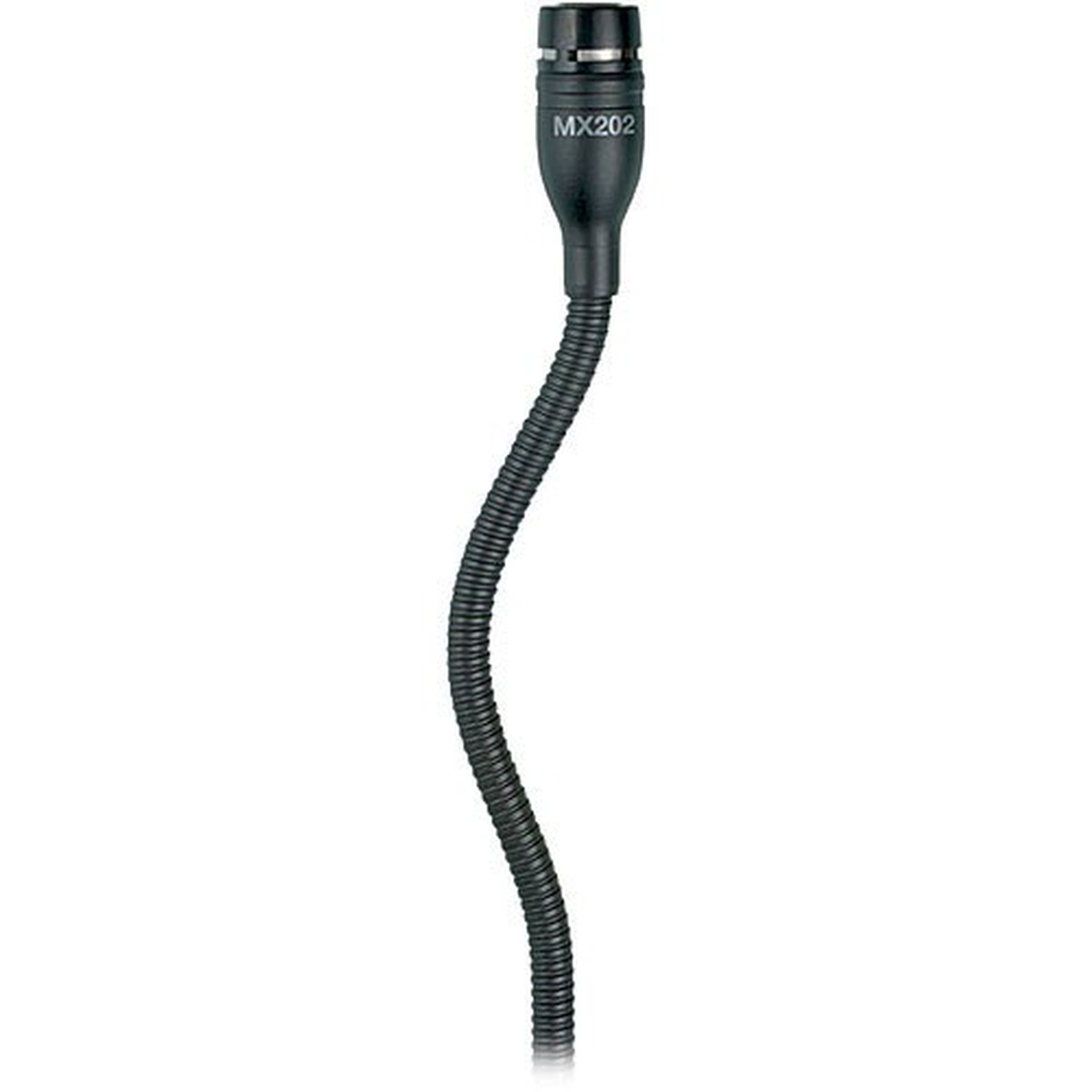

The Shure MX202B/C Microflex Overhead Cardiod Black Microphone with in-line preamp was designed as a small, unobtrusive overhead microphone that can produce amazing quality sounds. This microphone features an in-line or plate mount preamps, MX202 Microflex Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid (included) or supercardioid (not included) condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable. Making this a perfect device for installation in houses of worship, theater stages, or lecture halls.

Primary Features of the MX202B/C Microphone:

  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal polar pattern choice for each application
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Supplied stand-mount adapter for portable applications (in-line preamplifier versions only)
  • Off-white or black finish that blends unobtrusively with most surroundings
  • Preamp options available offer easy installation in ceilings or microphone stands
  • When combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum


  • Sensitivity: -35.0dBV/Pa (17.8 mV)
  • Max Input Sound Level (SPL): 124.2dB
  • Dynamic Range (Typical): 96.2 dB, (@ 1 kW Load)
  • Signal-to-Noise Ratio: 66.0dB, (Referenced @ 94 dB SPL)
  • Equivalent Output Noise: (A-weighted): 28.0dB SPL
  • Common Mode Rejection: 45.0dB minimum
  • Clipping Indicator: Preamplifier Output Clipping Level (1% THD), -6.0 dBV (0.5 V), -12 dBV at 0 gain Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector
  • Power Requirements: Phantom, 11 to 52VDC phantom, 2.0mA
  • Included Accessories: 30' Cable, In-Line Preamplifier, Stand Mount Hardware
  • Warranty: 2 Years
