 Home > Projectors -> Large Venue Projectors -> WXGA -> NEC -> NP-PX602WL-W-36 DLP 6000 Lumen WXGA Professional Laser Projector with Lens

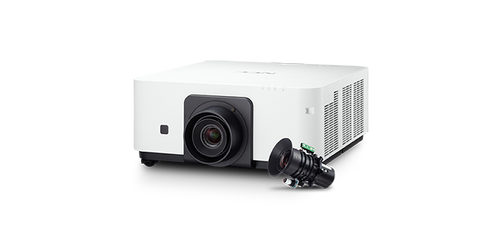

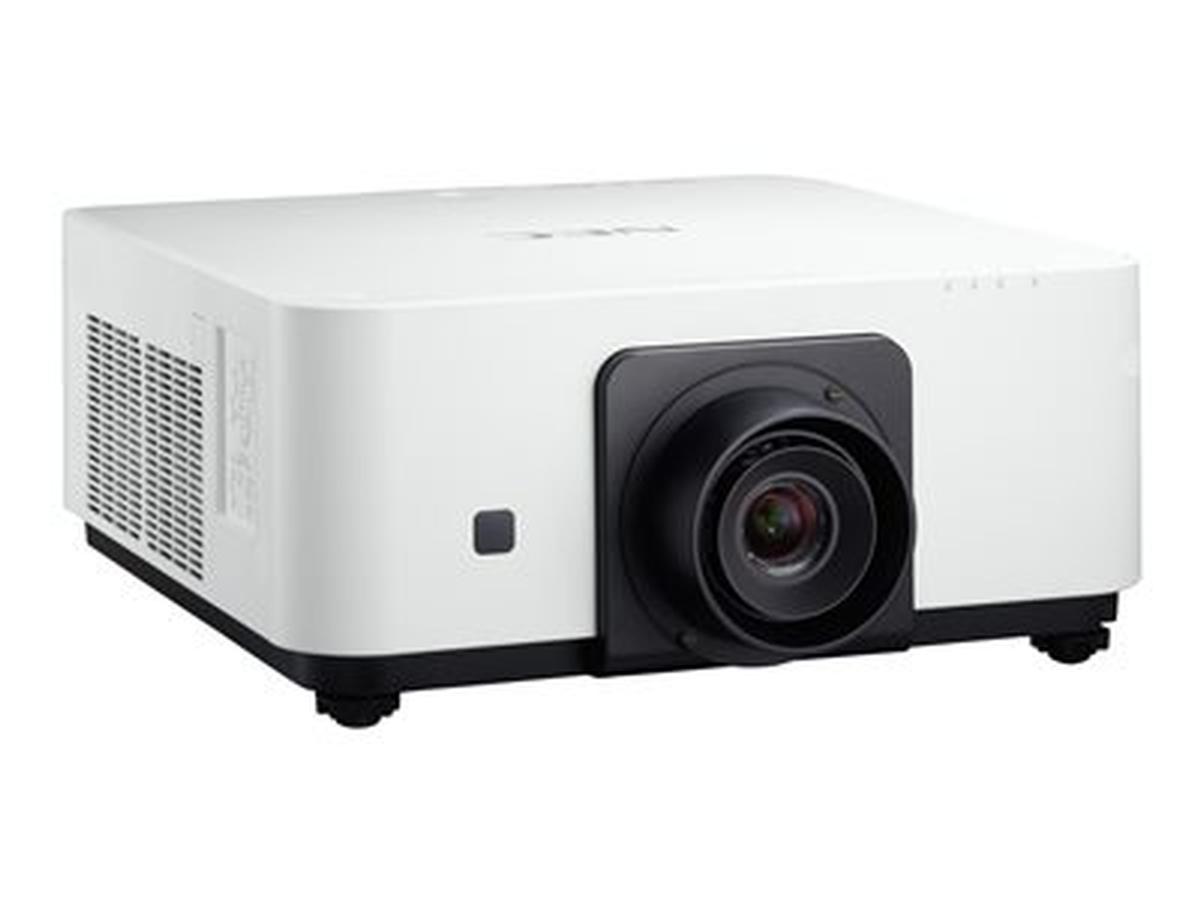

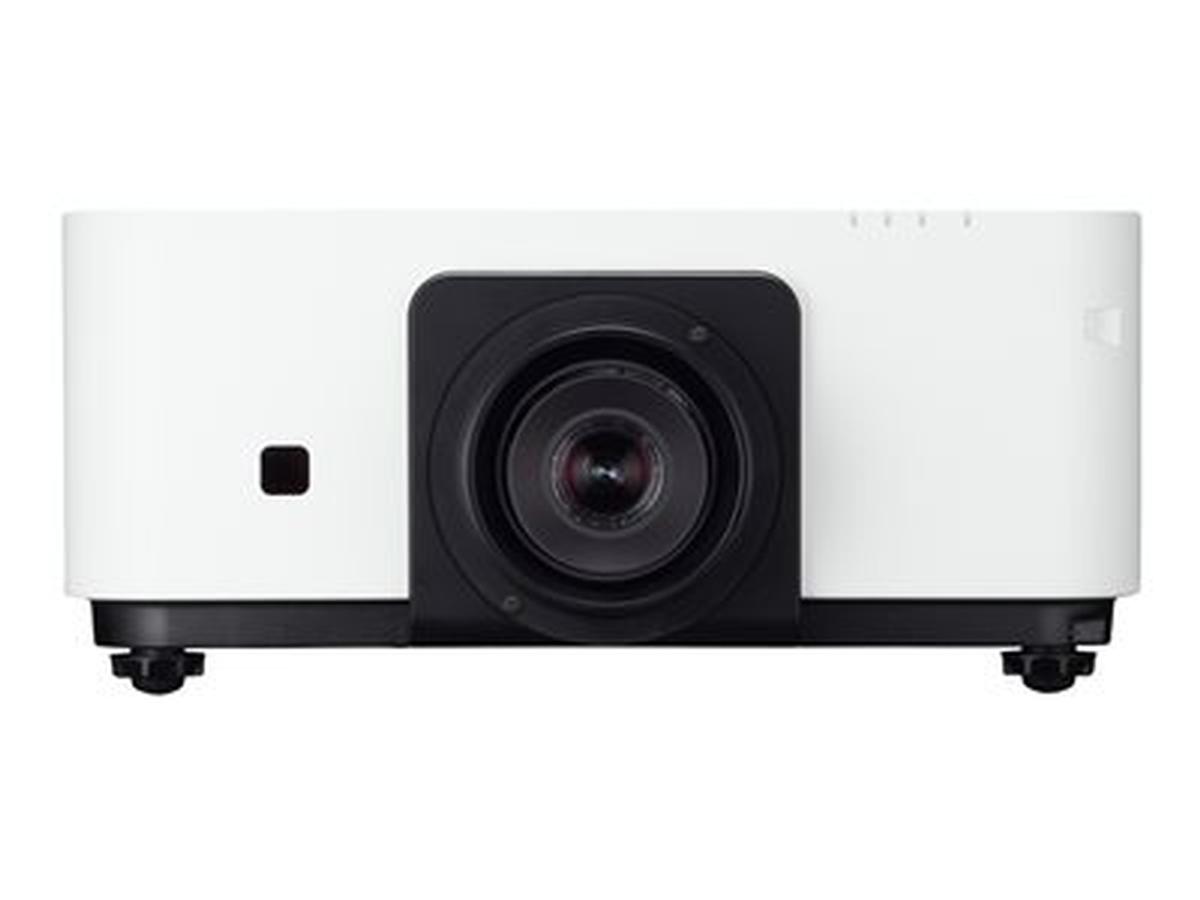

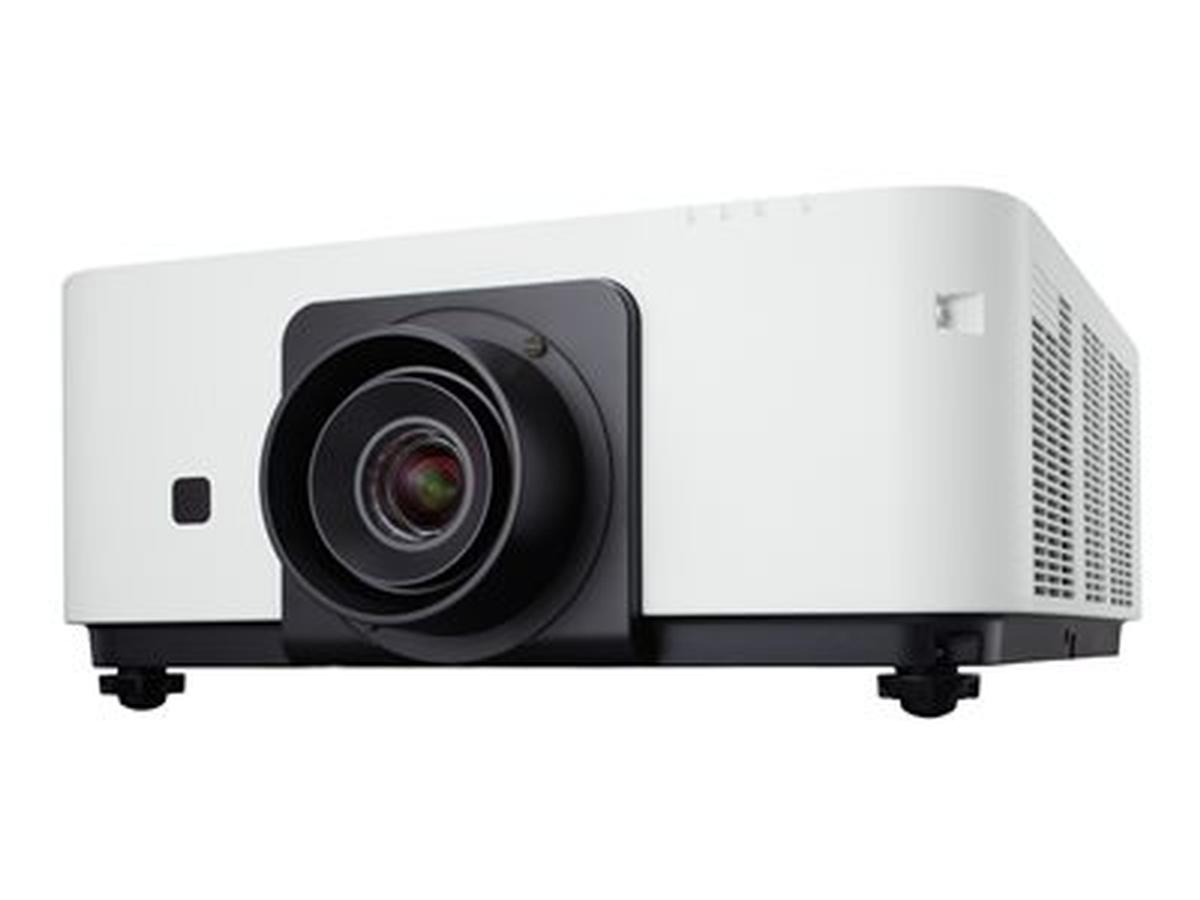

DLP 6000 Lumen WXGA Professional Laser Projector with Lens

Part #: NP-PX602WL-W-36
This product has been discontinued

For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top NP-PX602WL-W-36 Specifications
  • Device Type: DLP projector - HD 720p

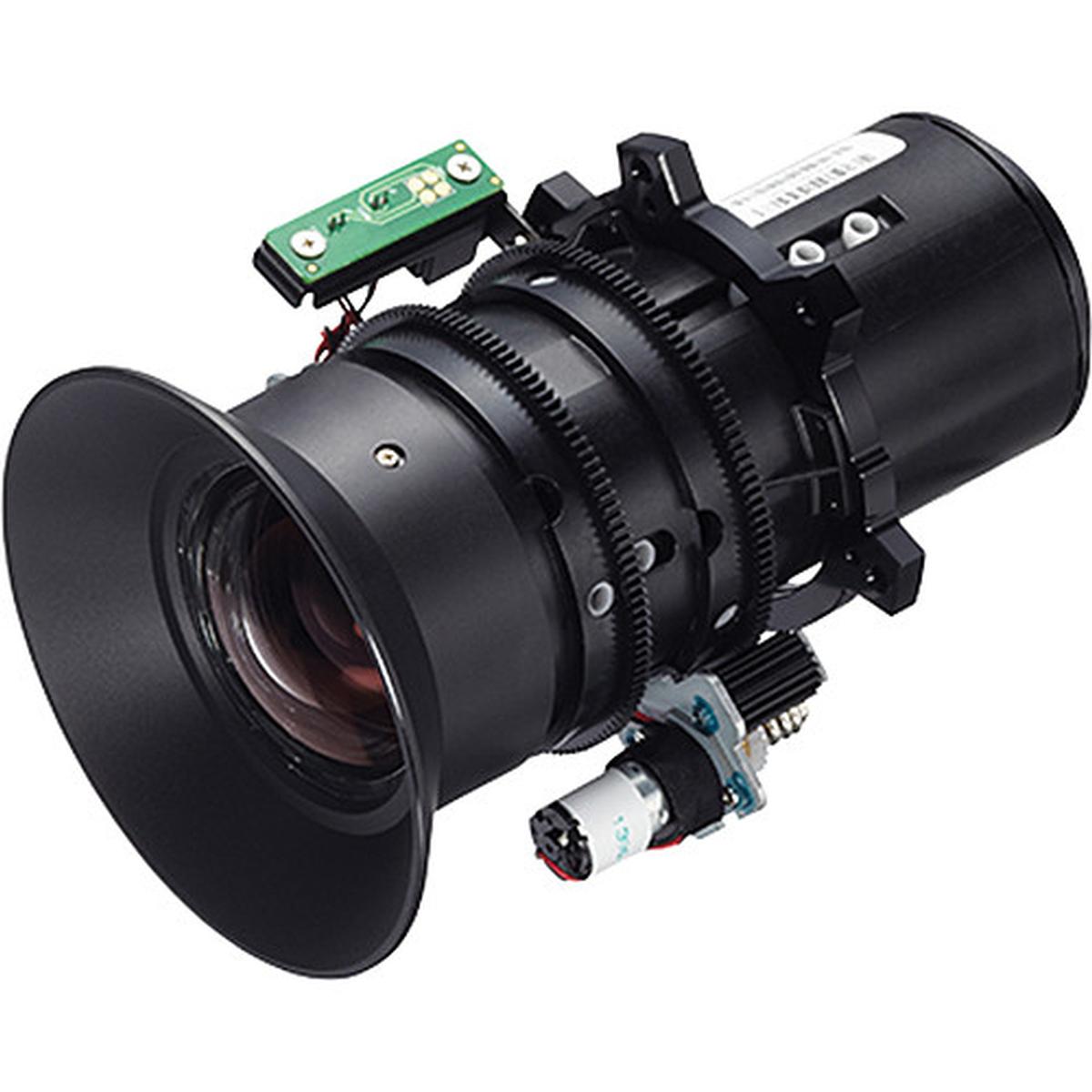

  • Included Lens: NP36ZL lens
  • Display System: 1-Chip 0.65" / 1.65 cm DMD DLP
  • Brightness: 6000 lumens
"Excellent experience - thank you for all your help"
Contact a product specialist!
Proudly supporting our customers since 2008


Bring high-performance and high-resolutions to your large venues or conference room settings with the NP-PX602WL-W-36 6000 Lumen, WXGA Pro DLP Laser Projector with lens from NEC. A leader in high-quality projection systems, NEC's line of professional installation laser projectors will shine a new light on the way you think about projection technology. This bundle includes the NEC PX602WL, a power house laser projector that uses a laser/phosphor light source, has a native WXGA resolution with potential up to 4K (4096 x 2160), a 10,000:1 contrast ratio, and comes with the NP-36ZL zoom lens. With more consistent brightness, improved color fidelity, and tilt-free or portrait modes, this projector will hands down deliver in new verticals such as retail, simulation projection, theme park, and museum installations. Furthermore this laser module offers up to 20,000 hours of virtually maintenance-free operation, which aids in reducing your total cost of ownership, when compared to standard lamp based projection systems. Projection distance for this model is between 2.8 and 120.8' away, with a screen size of 50 to a whopping 300". In addition this projector features a 1.28 to 1.60:1 throw ratio with the included NEC NP36ZL lens.

High-tech and a wide array of features is the name of the game with the PX602WL Laser Phosphor projector. Not only does it provide for high-brightness, lower power consumption, and a virtually maintenance free operation, that will reduce the end users TCO. This projector features TileMatrix which enables 4K2K resolutions through utilizing digital loop through capabilities, and has the ability to seamlessly blend multiple images with integrated edge blending capabilities. Built-in HDBaseT technology has also been added to this device, meaning more simplified installations with a single cable for video, audio, and control signals.

Additional technology that the PX602WL boasts is extended use capabilities up to and including 24/7 operation in digital signage type applications, AutoSense which intuitively syncs the projector with most computer signals and has one touch image optimization. The unit is both Landscape/Portrait Capable that allows for distortion-free display of content in various orientations, that with Vertical/Horizontal lens shift enables users an extremely flexible placement of their project system. Adding even more flexibility to the installation design, the device uses Cornerstone Correction that allows the horizontal, vertical, and diagonal alignments to all be independently adjusted to create an aligned image whenever the projector is set up at an angle to the screen. If operating in very large environments or venues, these projectors are stackable which can in-turn boost the image brightness up to 20,000 lumens making for ideal use on larger screens in environments with heavy ambient light. Finally amongst all these amazing built-in features, the PX602WL utilizes two amazing technology enhancements, Advanced AccuBlend and Geometric Correction. Advanced AccuBlend will ensure detailed images when non-native resolution sources are connected to the projector. While Geometric Correction allows you to project images on spheres, cylinders, corner angles and more.

The NP-PX602WL-W-36 from NEC, a DLP laser projector like no other. This projection system comes with with VGA, DisplayPort, BNC component video, and HDMI inputs, making it well equipped for a wide range of external video sources. An HDMI output is also available, which can be used to daisy chain up to 4 projectors. Comes with a remote control and is backed by a 1 year warranty from NEC.


  • Contrast Ratio 10000:1
  • Image Size: 50" - 300"
  • Projection Distance: 3.3' - 65'
  • Throw Ratio: 1.28 - 1.6:1
  • Resolution: WXGA - WXGA (1280 x 800) (native) / 1920 x 1200 (resized)
  • Lens Shift: Vertical: +-30 degrees / Horizontal: +-15 degrees
  • Native Aspect Ratio: 16:10
  • Lamp Type: Laser/phosphor
  • Lamp Life Cycle: Up to 20000 hour(s)

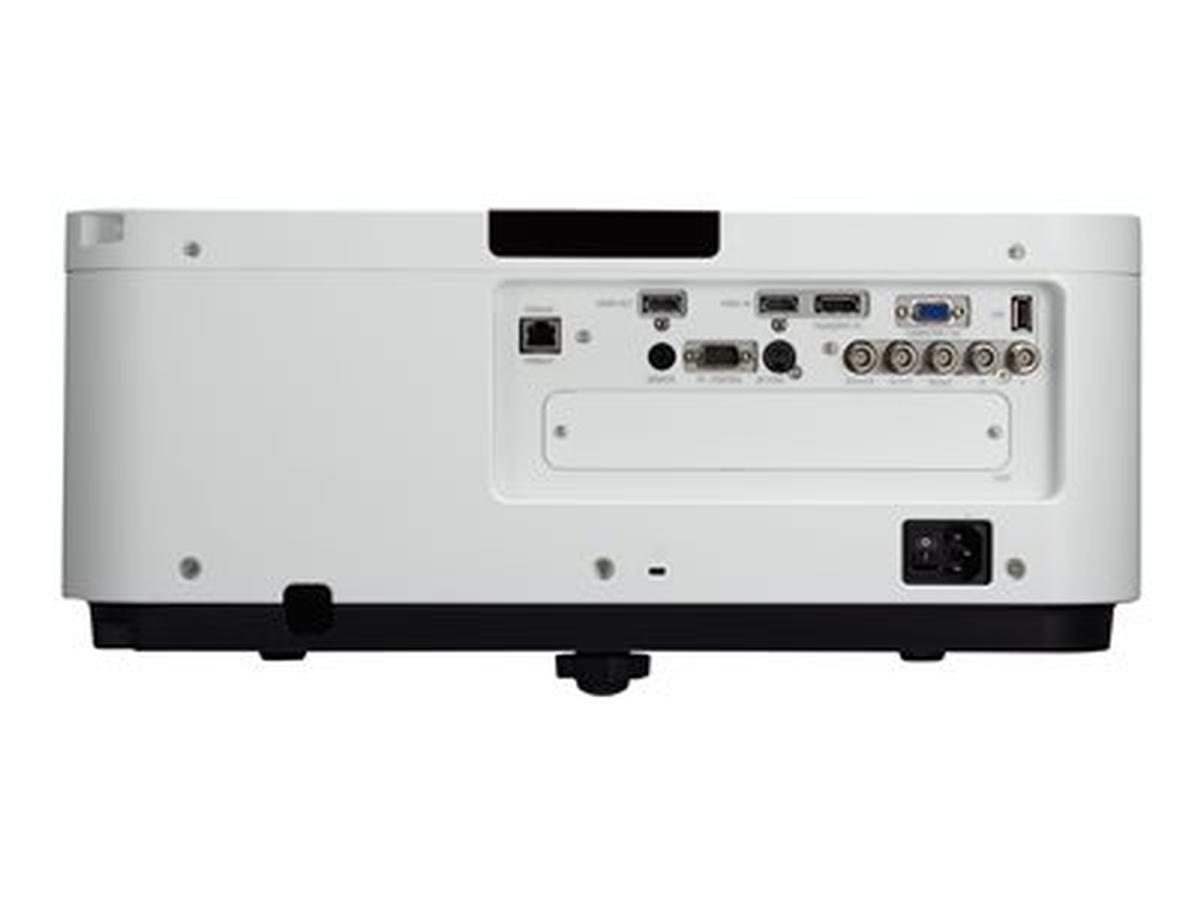

  • Inputs: HDMI, VGA, DisplayPort, 5-BNC
  • Outputs: HDMI
  • Ports: Ethernet LAN, USB Control, VESA 3D Sync Control, RS-232C Control, IR Control
  • Ceiling Mountable, Rear Screen Projection, Tilt Option Compatible
  • Keystone Correction: Vertical: +-40 degrees / Horizontal: +-40 degrees
  • 3D Capable: Yes (3D glasses sold separately)
  • Networking: Ethernet
  • Enclosure Color: White
  • Security Features: Security lock slot (cable lock sold separately)
  • Included Accessories: Lens cover, wireless remote control
  • Warranty: 1 Year
