Minrray UV1301S
Series HD Box Camera, Fixed Lens, HD-SDI, HDMI, Audio In
- Sensor: 1/2.8 inch high quality HD CMOS sensorr
- Effective Pixels: 16: 9, 2.07 megapixel
- Video Format: 1080P60/50/30/25/59.94/29.97 / 1080I60/50/59.94 / 720P60/50/30/25 /59.94/29.97
- Auto Iris: DC driving mode
-Brandon K.
Description
Minrray's UV1301S is a box camera with 1080p60 downward capability. It features an advanced image processing algorithm, which enables high-resolution, accurate depth, and vivid colors. This camera boasts multiple interfaces, including LAN and 3G-SDI, which can transmit 1080p signals up to 100m. This camera supports H.264/265 encoding, ensuring that your image doesn't suffer when in low-bandwidth environments. This box camera also uses a high-quality CMOS sensor that ensures the camera performs quietly, with a high signal-to-noise ratio.
The camera features auto-focus technology, making clear, stable images easy to capture. The UV1301S is ideal in tele-education and tele-medicine environments, lecture capture, webcasting and videoconferencing, as well as interrogation environments. Other key features of the Minrray UV1301S include the following:
- Low Noise CMOS effectively ensure high SNR of camera video.
- Advanced 2D/3D noise reduction technology reduces noise while ensuring image sharpness
- Supports the following protocols
- ONVIF, RTSP, RTMP
- RTMP push mode
- PELCO-D, PELCO-P
- Visca protocol control through IP port
Specifications
- Digital Zoom: 5X
- Minimum Illumination: 0.5Lux (F1.8, AGC ON)
- DNR: 2D + 3D DNR
- White Balance: Auto/Manual/One Push/3000K/4000K/5000K/6500K
- Focus: Auto/manual
- Aperture: Auto/manual
- Electronic Shutter: Auto/manual
- BLC: ON/OFF
- WDR: OFF/ Dynamic level adjustment
- Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
- SNR: >55dB

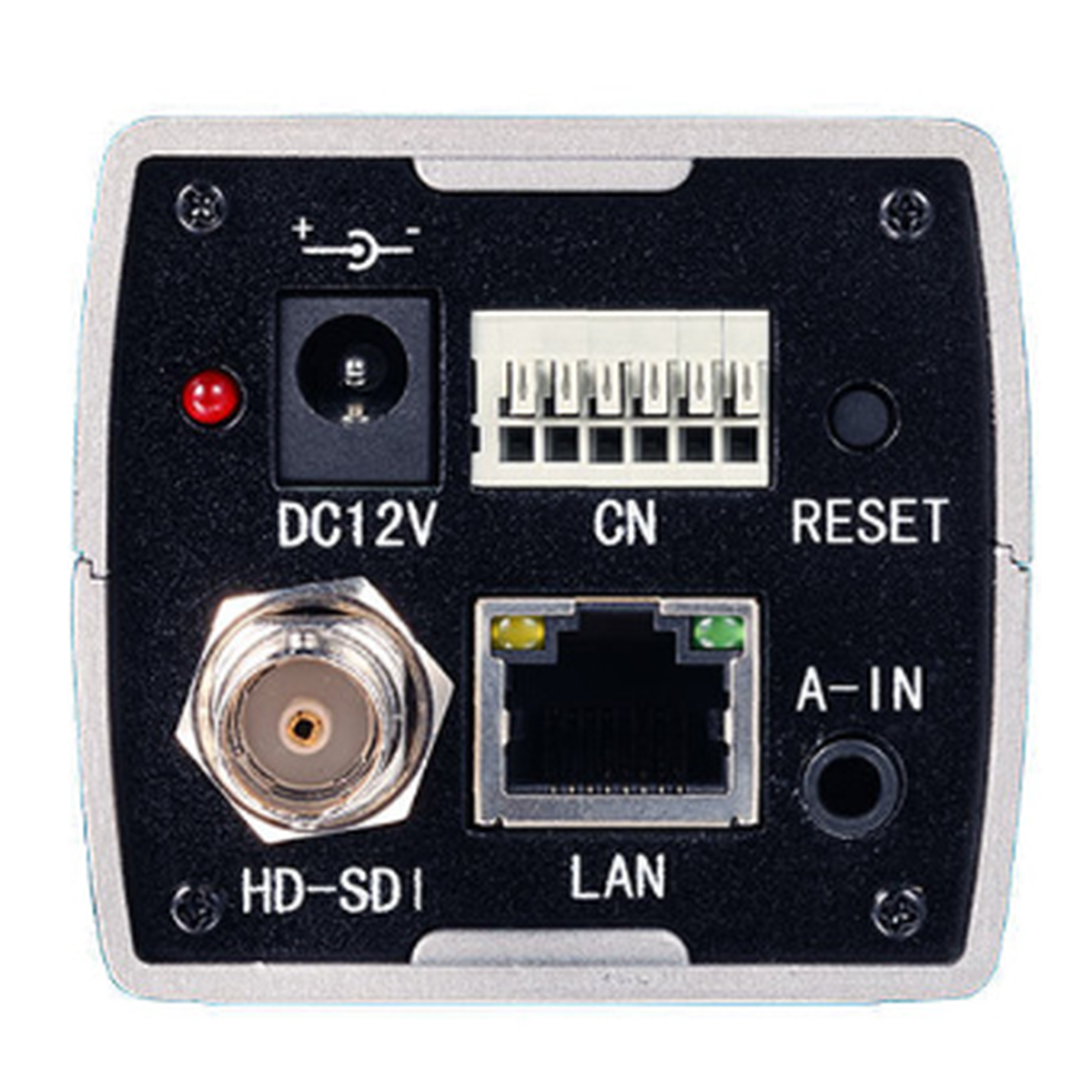

- Video Interfaces: 3G-SDI
- Image Code Stream: Dual stream output
- Video Compression Format: H.264, H.265
- Control Interface: RS-485
- Control Protocol: VISCA/Pelco-D/Pelco-P
- Baud Rate: 115200/9600/4800/2400bps
- 5 Control Key: UP/DOWN/LEFT/RIGHT/CONFIRM keys for OSD setting
- HD IP Interface: 100M IP port (10/100BASE-TX), support VISCA protocol control through IP port
- Network Protocol: RTSP,RTMP,ONVIF,GB/T28181
- Power Interface: HEC3800 power socket (DC12V)
- Power Adaptor: AC110V-AC220V to DC12V/1A , POE power supply (optional)
- Input Voltage: DC12V 10%
- Input Current: 400mA (Max)
- Consumption: 4.8W (Max)
- Store Temperature: -10 ~+60
- Store Humidity: 20%~95%
- Working Temperature: -10 ~+50
- Working Humidity: 20%~80%

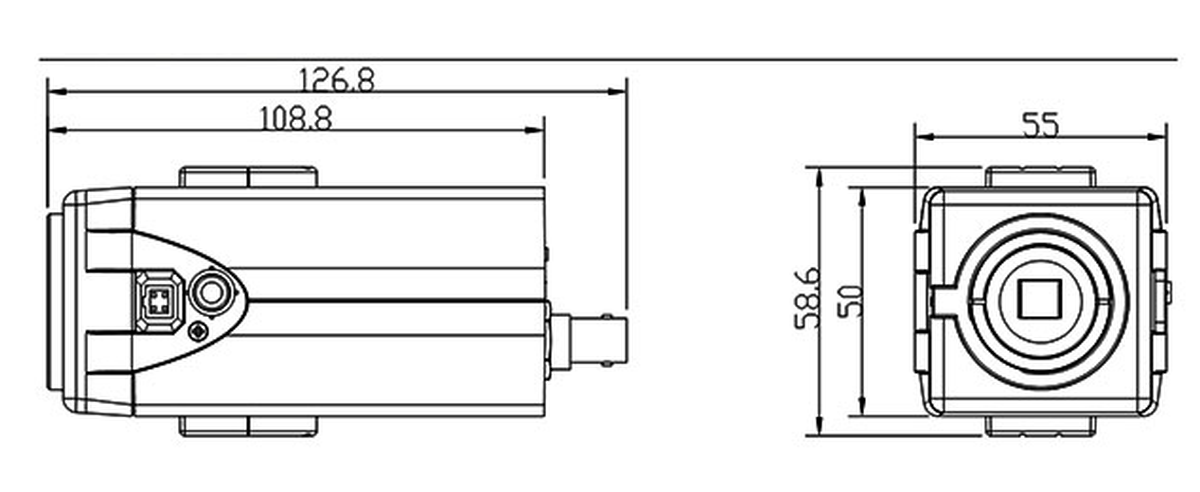

- Dimension: 126.8mmX55mmX58.6mm
- Weight: 0.5kg
- Application: Indoor
- Remote Operation (IP): Remote Upgrade, Reboot, and Reset
- Accessory: 12V/1A Power supply, User Manual, Warranty card, brackets(optional)
- Warranty: 2 years
- Warranty Terms: The warranty starts from the delivery date from factory / During the warranty, any defective product will get repaired or replaced for free / The warranty is unavailable for those products which are broken by the violence or the carelessness or repaired or altered without authorization / An RMA form is required
