Lumens PS752
20x Zoom, HDMI, Full HD 1080p Desktop Document Camera

Part #: PS752
Satisfaction Guaranteed!
MSRP: $1,999.00
Our Price: $1,499.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top PS752 Specifications
  • Zoom: 20x
  • Digital Zoom: 12x
  • Output Resolution: up to XGA, SXGA, WXGA, 1080p
  • Frame Rate: 30 fps
"Great product. Came as promised. Top quality."
Contact a product specialist!
Proudly supporting our customers since 2008

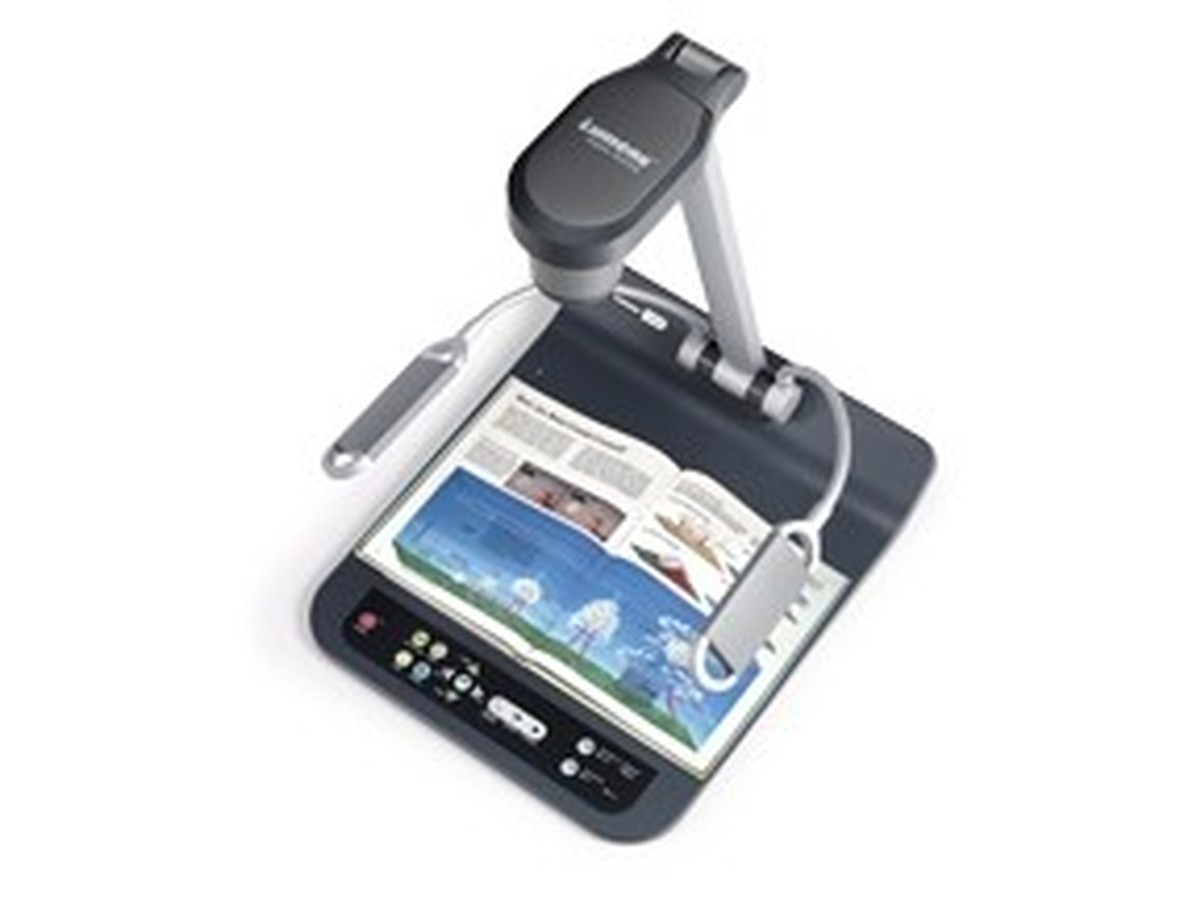

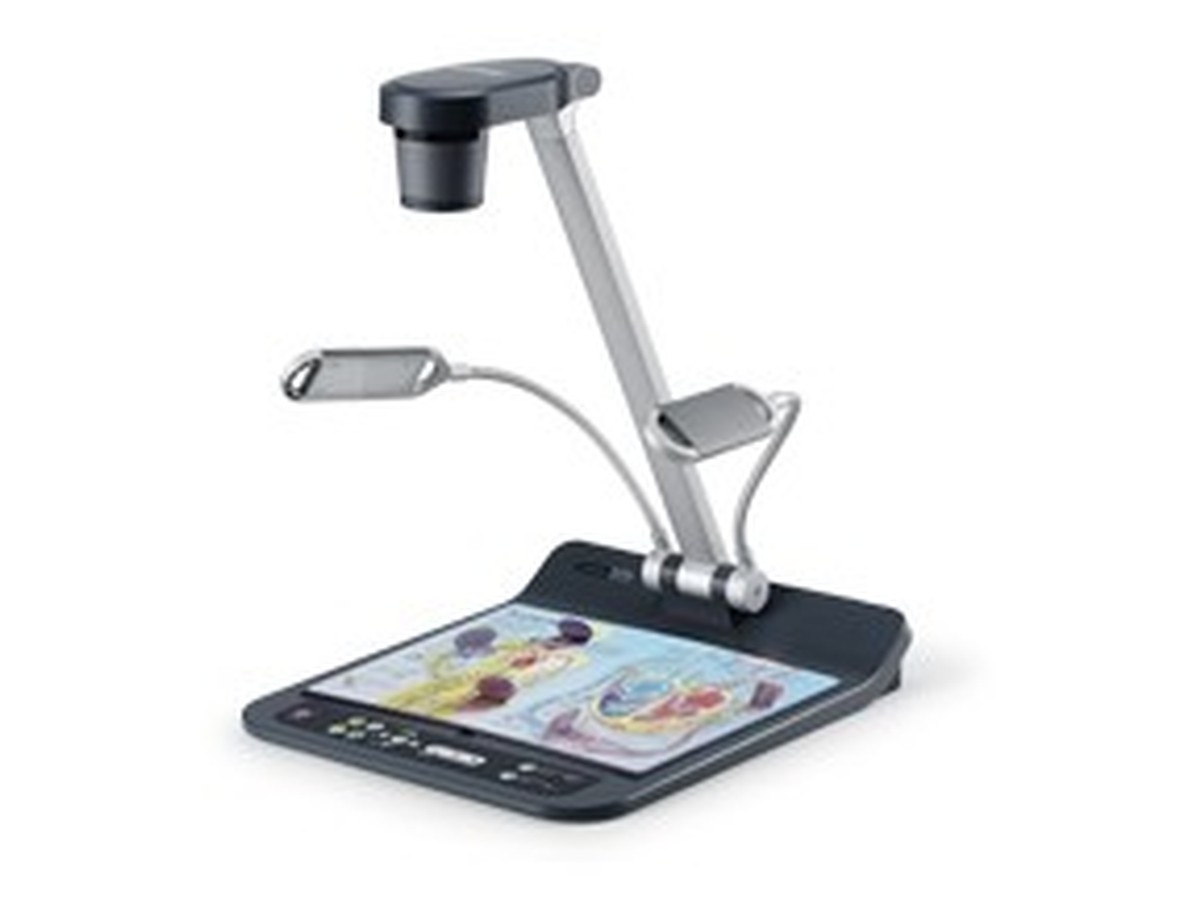

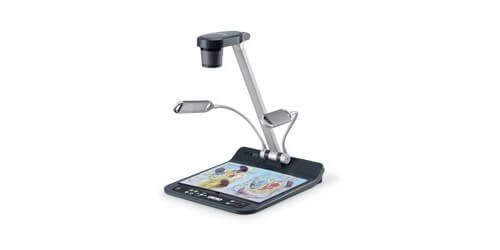

Now featuring the Lumens PS752 High-Definition Desktop Document Camera with 20x zoom capabilities and super power professional image sensing technology. This camera was designed to deliver vivid colors at Full HD 1080p output resolutions with 30 fps. It supports HDMI input/output and is compatible with a wide range of high-definition audio/video equipment. There is an internal memory storage that can hold up to 240 images, but is also expandable with the use of a USB flash drive to hold up to 4TB of memory. Both audio/video can be recorded using a "one-touch" recording function for presentations without the need for a PC. For multi-image display abilities there is also a built-in backlight design. A dual adjustable side lamp has been worked into this unit to prevent reflections, and a single button auto-tune function provides perfect image quality every time, without the need of constant adjustments. Furthermore this Lumens Document Camera has a unique projector mode function that allows for connecting a LCD or DLP projector to reduce the interference that can be caused by different types of projector technology. Thus allowing for the best image quality available to be delivered consistently every time.

Primary Features of the Lumens PS752 Include:

  • Excellent Image Quality
  • Annotation Without PC
  • Anti-Reflection
  • Instant Image Adjustment
  • Video/Audio Recording
  • Supports HDMI Pass-through
  • Smooth Dynamic Image
  • Built-in LED Backlight


  • Shooting Area Max: 17.3" x 13" > A3 size
  • Built-in Backlight Size: 8.3" x 11.7"
  • High Color Reproduction
  • Signal to Noise Ratio: 51 dB
  • Sharpness: MTF 967 lines
  • Lamps: Dual LED side lamps supported by a gooseneck

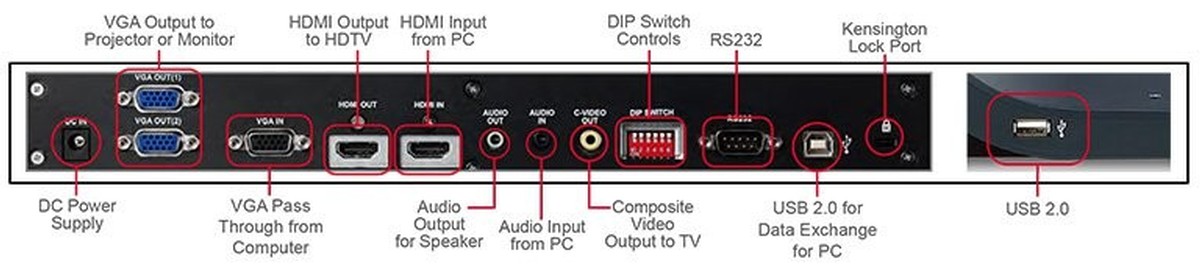

  • Inputs: VGA, HDMI
  • Outputs: VGA x 2, HDMI, C-Video
  • USB Image Transmission: USB 2.0 (480 Mbps) high-speed transmission
  • Audio/Video Recording: One-touch records image and sound synchronously
  • Built-in Memory: 240 JPEG
  • USB flash drive: for USB flash drives (up to 4TB) or wired/wireless mouse for annotation
  • Built-in Microphone: Yes
  • Image Capture: Single or continuous capturing
  • Auto Tune: Yes, one button for image optimization
  • Image Rotation: 0, 180 degrees, flip, mirror
  • Anti-Theft: Kensington anti-theft lock device
  • Lumens Software: Support PC Windows 10, 8, 7, XP, Vista, Mac OS X,Chrome OS, iOS and Android App / WIA and TWAIN interface
  • Weight: 12.3 lbs
  • Dimensions: Folded : 22.3" x 15.2"x 6" / Open : 18.3" x 15.2" x 23.1"
  • Included Accessories: Warranty: 5 Years
