 Home > Distribution Amplifiers -> Audio -> 1X5 -> Kramer AV -> VM-1110xl 1:5(B) Stereo or 1:10(B) Mono Audio Distribution Amplifier, XLR

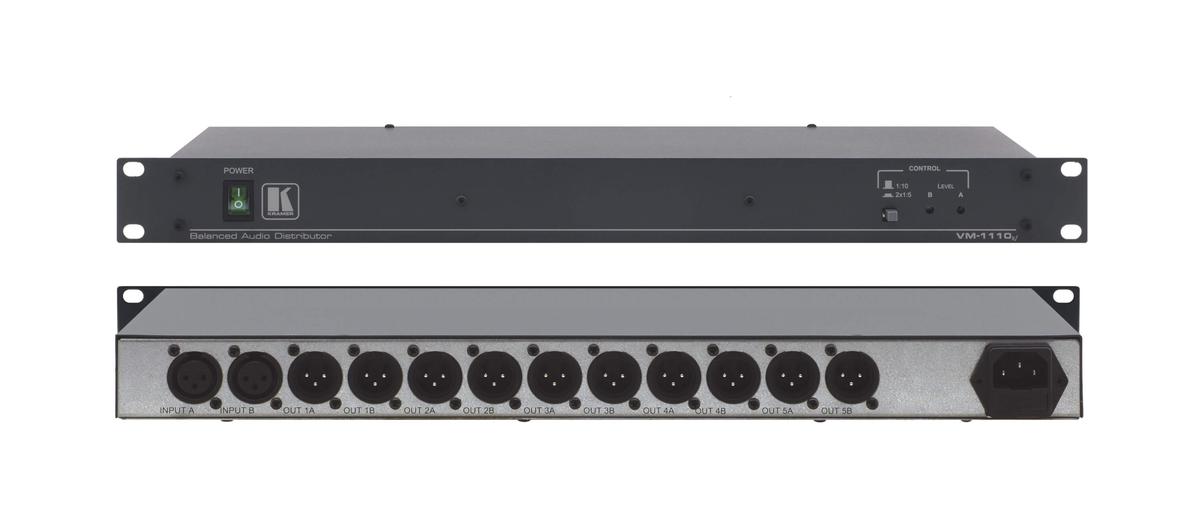

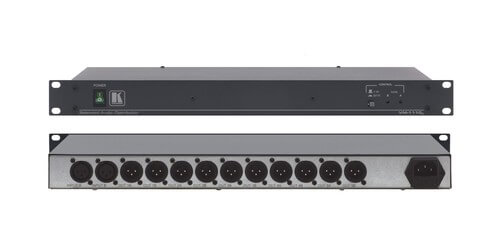

Kramer AV VM-1110xl
1:5(B) Stereo or 1:10(B) Mono Audio Distribution Amplifier, XLR

Manufacturer SKU: 11-0415510
Satisfaction Guaranteed!
MSRP: $850.00
Our Price: $680.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top VM-1110xl Specifications
  • Inputs: 2 balanced stereo audio on XLR (F) connectors
  • Outputs: 10 balanced stereo audio XLR (M) connectors
  • Max. Output Level: 23.8Vpp
  • Bandwidth: >100kHz
"Great working with my sales rep to figure out what options I had. Thank you again!"
-Timothy J.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

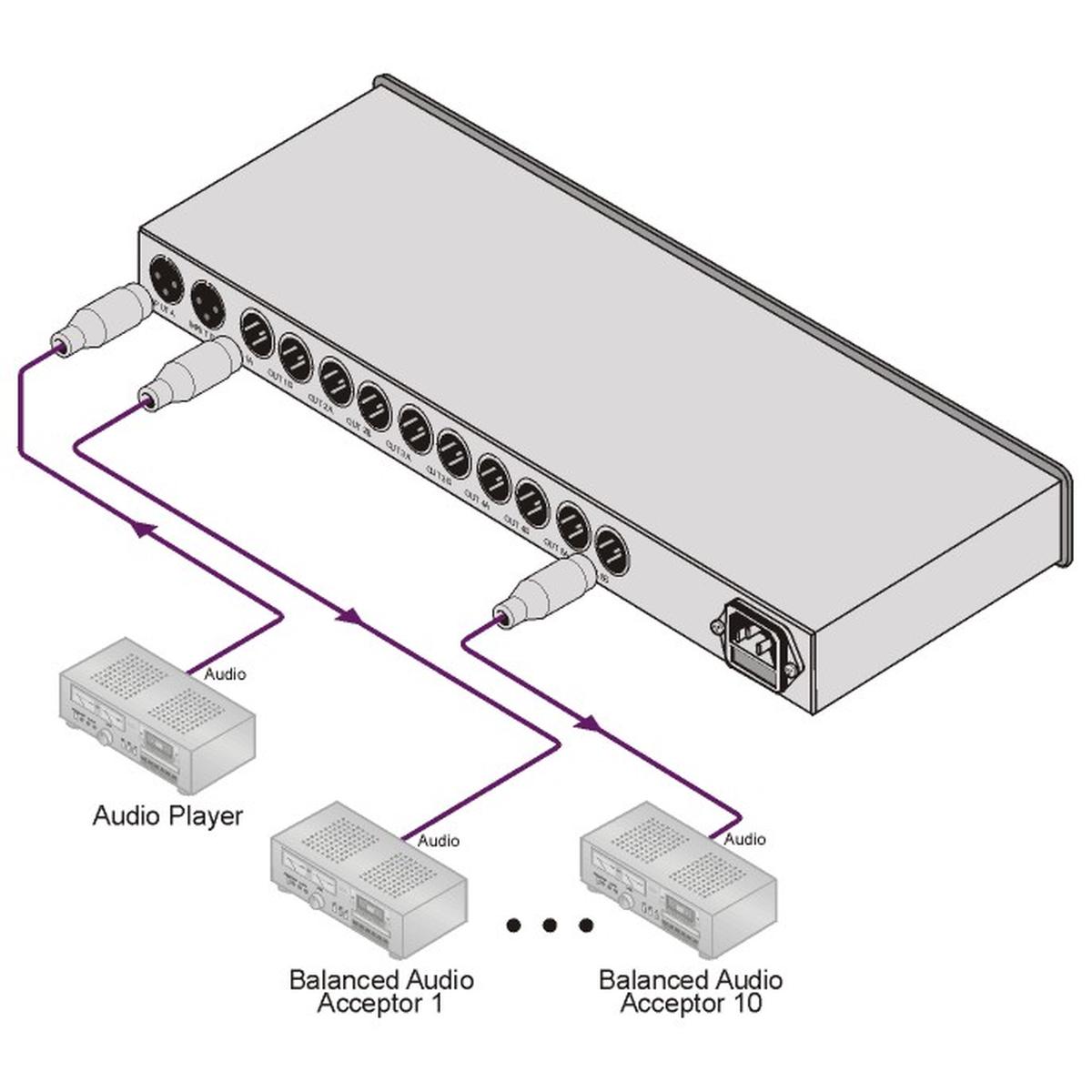

Kramer's VM-1110xl is a high-quality 1x5 stereo or 1x10 mono audio on XLR connectors distribution amplifier. The primary feature of this distribution amplifier is in its dual mode, where it can be configured as a 1:10 (mono) or 1:5 (stereo) DA, making it a great addition to audio duplication and production studios by delivering undiminished quality duplicates. Would also be great for use in recording/broadcast studios for on-line signal distribution. This device has a bandwidth greater than 100kHz, a max output level or 23.8Vp, an S/N ratio of -83.9dB and has Level (gain) controls. Comes with a supplied power cord, is backed by a 7 year warranty from Kramer,  and can fit into the optional 1U rack space using the Kramer RK-1 19" rack adapter.

Specifications

  • S/N Ratio: 89.3dB
  • Controls: Level (x2): 0.7dB to +5.1dB, mode selector switches
  • Coupling: AC (input) / DC (output)
  • Power Consumption: 230V AC, (115V AC USA) 6VA
  • Included Accessories: Power Cord
  • Warranty: 7 Years
