 Home > Range Extenders -> HDBaseT Transmitters -> DVI -> Kramer AV -> TP-580TD Long-Reach DVI HDBaseT Transmitter, 4K60, HDCP 2.2, RS-232, IR

Kramer AV TP-580TD
Long-Reach DVI HDBaseT Transmitter, 4K60, HDCP 2.2, RS-232, IR

Manufacturer SKU: 50-8048701090
Satisfaction Guaranteed!
MSRP: $415.00
Our Price: $332.00
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top TP-580TD Specifications
  • Warranty: 7 years
  • Inputs: 1 DVI-I on a DVI I female connector
  • Outputs: 1 HDBaseT on an RJ-45 female connector
  • Ports: 1 IR on a 3.5mm mini-jack for IR link extension
"Excellent experience - thank you for all your help"
Contact a product specialist!
Proudly supporting our customers since 2008

Description

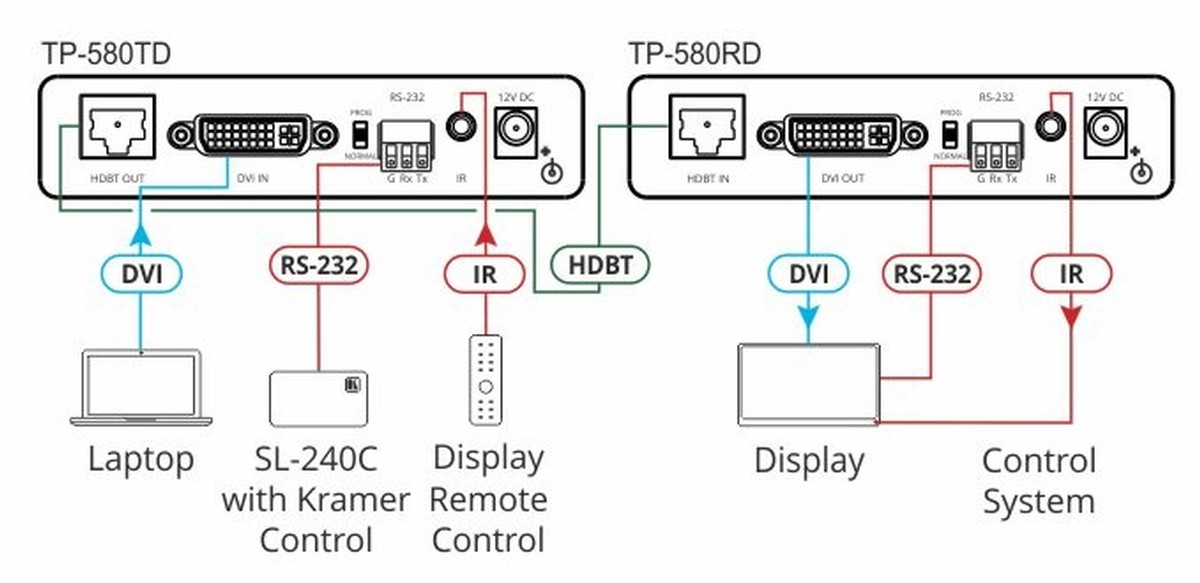

The Kramer TP-580TD is a powerful DVI over HDBaseT Transmitter solution, that can send high-quality 4K60 signals with IR and RS-232 over twisted pair, via a single-link DVI-I connection.  The TP-580TD is ideal for medical operating rooms and other critical AV extension applications.  This range extender is a highly reliable long-distance extension of professional AV signals - making it ideal for rental and staging events as well as government building applications.

Specifications

  • 1 RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade
  • Maximum Video Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Maximum Video Supported Resolution: 4K@60Hz (4:2:0) 24bpp
  • Standards Compliance: HDMI 2.0 and HDCP 2.2
  • Accessories Included: Power supply unit
  • Power Source: 12V DC, 2A
  • Power Consumption: 12V DC, 275 mA
  • Product Dimensions (W x H x D): 4.72" x 2.81" x 0.96"
  • Product Weight: 0.6 lbs
  • Shipping Dimensions (W x H x D): 6.18" x 4.72" x 3.43"
  • Shipping Weight: 1.5 lbs

Q & A

This product has no questions - ask one!

Ask a Question

Reviews

There are currently no reviews for this product.

Write a Review
