 Home > Room Control -> Wall Plates -> Push Button -> Kramer AV -> RC-54DL(B) 12 Button KNET Auxiliary Control Panel - Black

Kramer AV RC-54DL(B)
12 Button KNET Auxiliary Control Panel - Black

Manufacturer SKU: 30-70977390
This product has been discontinued

For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top RC-54DL(B) Specifications
  • Back Lit Label Capable Buttons: 6 RGB color, tactile feedback, buttons are grouped in 2 groups, 4 buttons in "Sources" group, 2 buttons in "Display" group

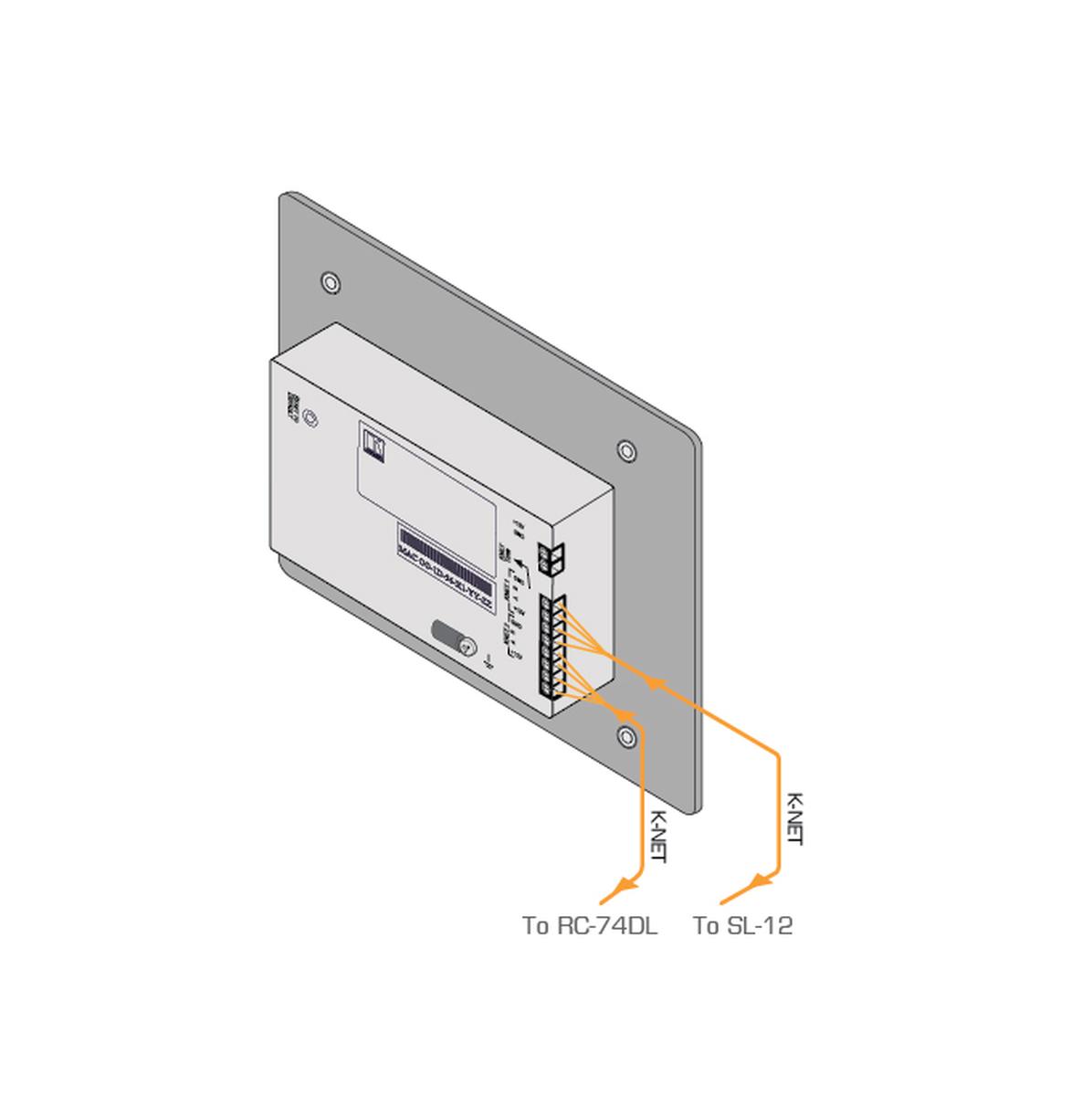

  • Connectors: 2 K-NET for master room control and auxiliary keys pads for remote control
  • Program Control: Kramer KConfig software
  • Mini USB Port: upload configuration files
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008

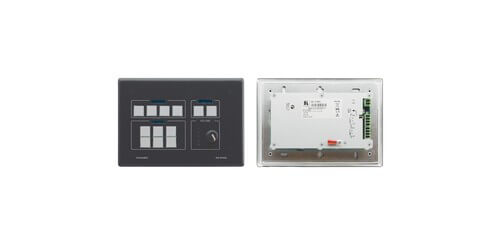

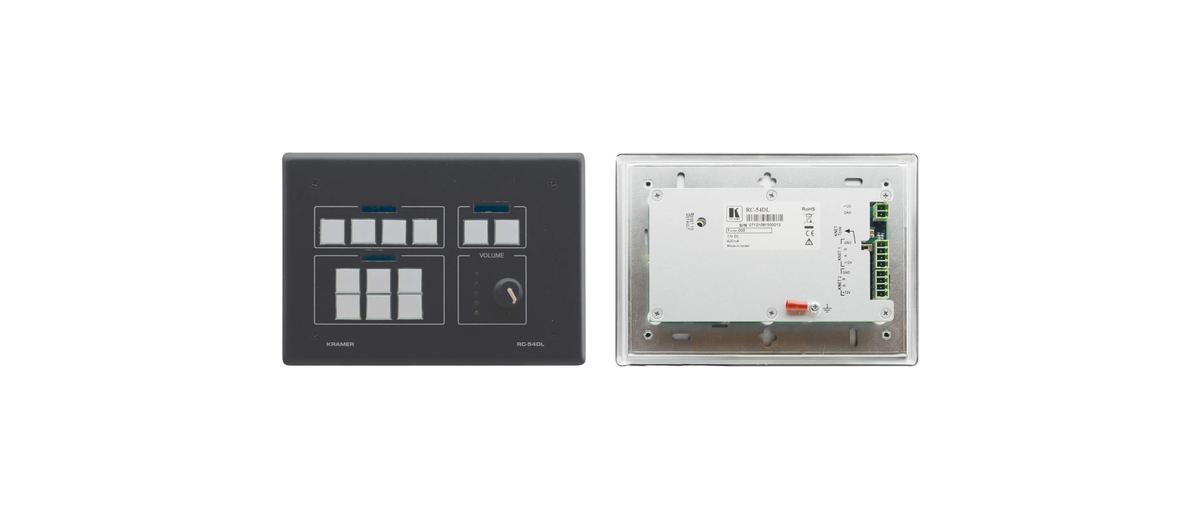

The RC−54DL from Kramer is a 12-button auxiliary keypad, with control knob and LCD display. This keypad is connected over KNET to master control keypad such as RC-74DL, this is ideal for working as a remote secondary keypad in classrooms, board rooms, or auditoriums for quick and accessible control to your multimedia devices.

The RC−54DL features 12 RGB-color backlit buttons, has custom labeled, removable button caps, a digital control knob for volume with LED's, and is in-wall mounted in standard 3 gang US wall junction boxes. Other control options include LCD Display that has 3 blue-color and 8 white characters LCD displays, in 3 button groups, for programmed visual feedback indication and group configured labeling, for example knob control state of either audio or light level. 2 K-NET connectors connect to master room controller and auxiliary keypads for remote keypad control. You can also use K-NET single link connection which provides a single keypad link cable connectivity, carrying both power and keypad control communication information. Using Kramer KConfig software the user has complete program control. To upload configuration files the RC−54DL uses a Mini USB port, simply set the KNET ID number, and power the device during configuration. Installation of this auxiliary 12 button control panel is simple and cost effective as it will fit into any standard in wall box.


  • Custom Labeled/Removable Button Caps
  • Volume Knob with LED's: Bi-directional rotary dialed digital knob for volume control, 5 LED bar for visual control
  • Keypad Lockout: Prevents Tampering with settings
  • Installation/Mounting: In-wall, fits in standard 3 gang US wall junction boxes
  • Warranty: 7 Years

Q & A

This product has no questions - ask one!

Ask a Question


There are currently no reviews for this product.

Write a Review
