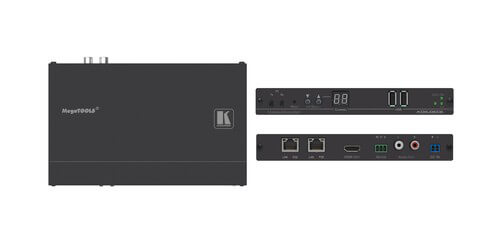

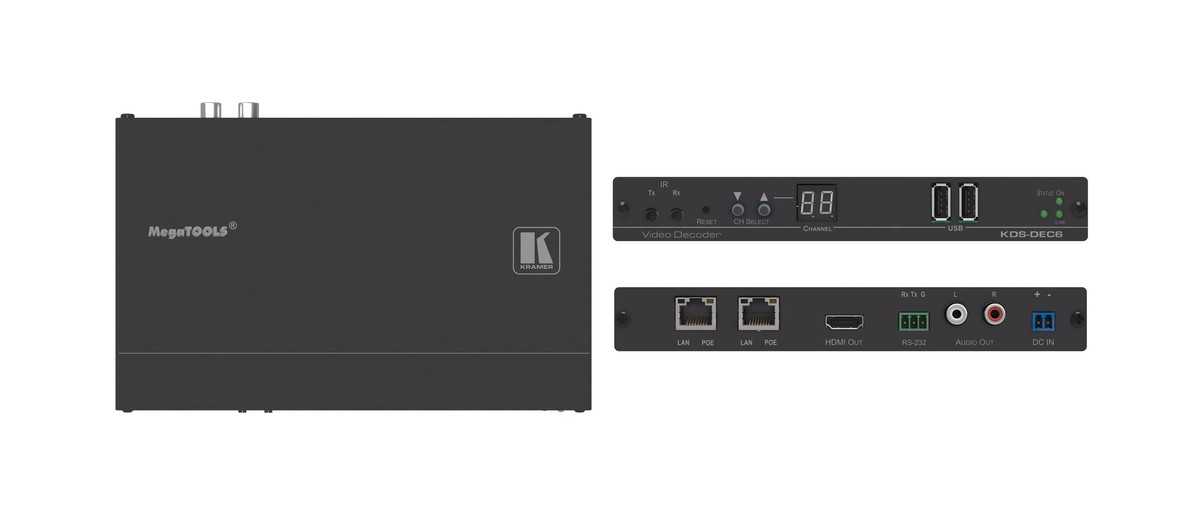

Kramer AV KDS-DEC6
4K60 4:2:0 HDCP 2.2 Video Decoder AV over IP
- Inputs: 1 Ethernet (LAN/PoE) on an RJ 45 connector, 1 IR on 3.5mm mini jacks (Rx)
- Outputs: HDMI connector, 2 left and right unbalanced stereo audio on RCA connectors, 1 RS 232 on terminal block connectors, 2 USB (type A) ports, 1 IR on 3.5mm mini jacks (Tx), 1 Ethernet on an RJ 45 connector (daisy chain LAN)
- Network: 10M/100M/1000M
- Network Switch: 1G multicast, IMGP snooping non blocking, Layer 2
Description
Kramer KDS-DEC6 is an H.264 decoder for encoded signals with resolutions up to 4K60 4:2:0. The KDS-DEC6 decoder provides streaming over an IP network that carries 4K40 4:2:0 video, audio, IR, RS-232, USB over IP in unicast (one to one) or multicast (many to many) configurations. It is designed to work with the KDS−EN6 H.264 encoder to provide a high−quality and fully−featured end−to−end video and audio over IP solution, with HDCP 2.2 encryption. This item was designed to be used in conjunction with the KDS-EN6 encoder and can be managed via Open API/Kramer AV services/Kramer Control. These devices are great for use in Pro AV distribution systems with one or more sources and many displays, such as in schools, universities and public venues. Equally they are an added benefit to settings that require long-distance transmissions of signals using the existing wires and infrastructure in corporate offices and government type applications.

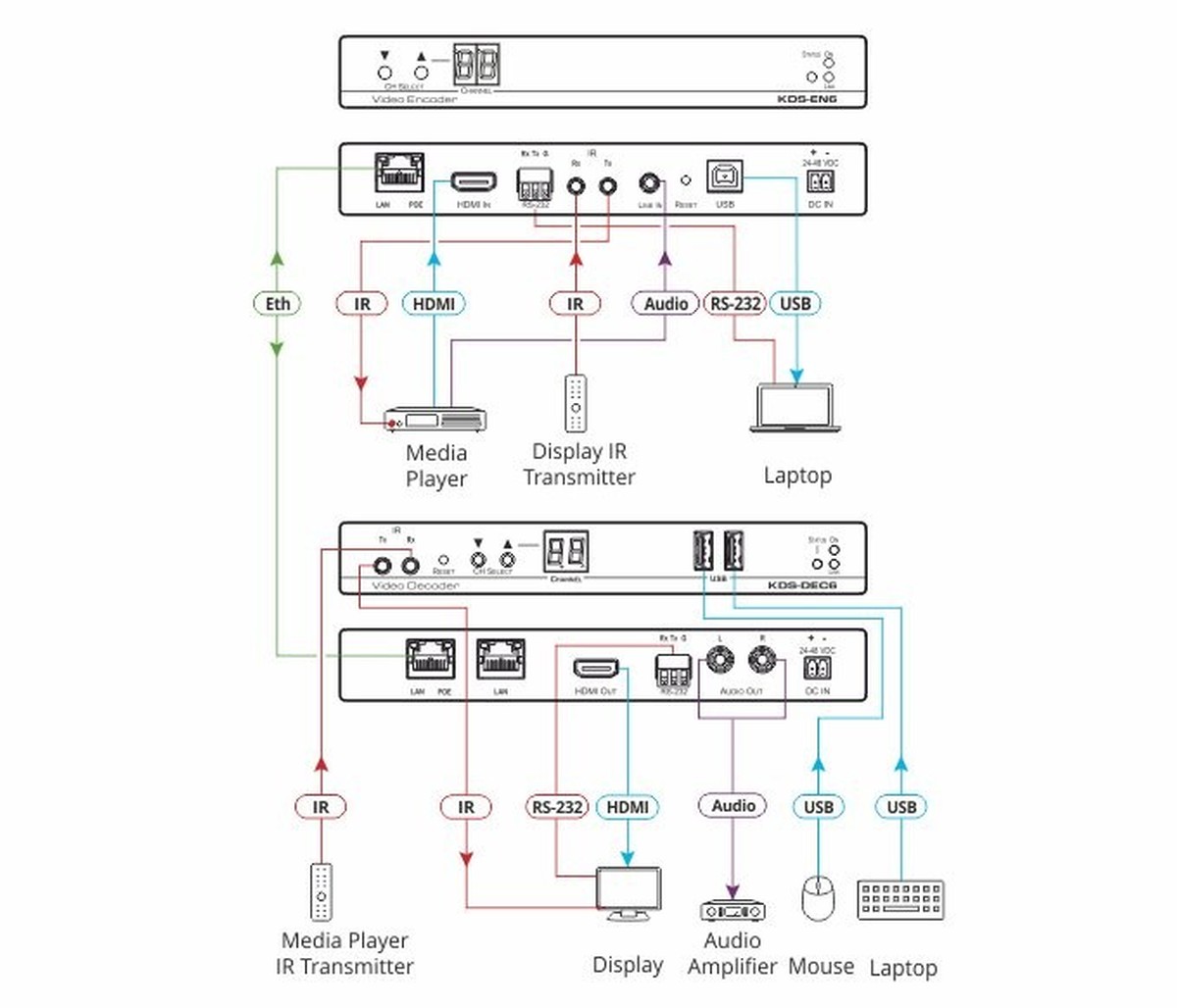

The primary features of the KDS-EN6 & KDS-DEC6 when used together include:
- Video Support - HDMI 4K@60Hz (4:2:0)
- Audio Support - HDMI/line in, 7.1 PCM, Dolby True–HD, and DTS–HD Master audio
- Virtualization - IR, USB, RS–232 over IP
- Network - Switch 1G multicast IGMP snooping managed layer 2
- Power - PoE or external power supply
- Control - Kramer Network, Web UI, API
- HDCP - 2.2 compliance
- Video Effects - PIP, video wall
- Scalable enterprise grade one to many/many to many/video wall/KVM–over IP media distribution
The KDS-DEC6 from Kramer is an advanced solution in applications where functions such as recording, archiving, scaling and more are required. This device comes with a 7 year warranty from Kramer.
Specifications
- Resolutions: Up to 4K60 4:2:0
- Streaming: Unicast and multicast through RTSP (Real Time Streaming Protocol)
- Controls: Resest button, up and down channel buttons, channel 7-segment display, Status, Link, On LEDs
- IR: Wide band 20kHz~60kHz bidirectional IR transmission
- Management: API, Kramer Control, Kramer AV services (powered by Kramer Network)
- Video Encoding / Decoding: Compression Standard MJPEG
- HDCP 2.2 Compliance
- Scaling and Cropping: Built in scaling and cropping for flexible display of source content on the decoder output
- Bit Rates: 4K peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
- HDMI Embedded Audio Channels: PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital True HD, DTS 5.1 Channel, DTS ES, DTS HD High Resolution, DTS HD Master Audio
- Power Options: PoE and/or External Power Supply
- Power Consumption: 48V DC, 370mA max
- Dimensions (HxWxD): 7.48" x 4.06" x 0.91"
- Weight: 1.2lbs
- Warranty: 7 Years
