Hall Technologies UHBX-WP-P2
4K HDBaseT HDMI Wall Plate Transmitter and Receiver Kit- 500'

Part #: UHBX-WP-P2
Satisfaction Guaranteed!
MSRP: $853.05
Our Price: $810.40
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top UHBX-WP-P2 Specifications
  • HDBaseT HDMI Decora wall plate transmitter and receiver
  • Distance: Up to 500' for 1080P and 330' for 4K
  • Resolution: Up to 4K Supported
  • Receives power from included receiver
"Excellent experience - thank you for all your help"
Contact a product specialist!
Proudly supporting our customers since 2008

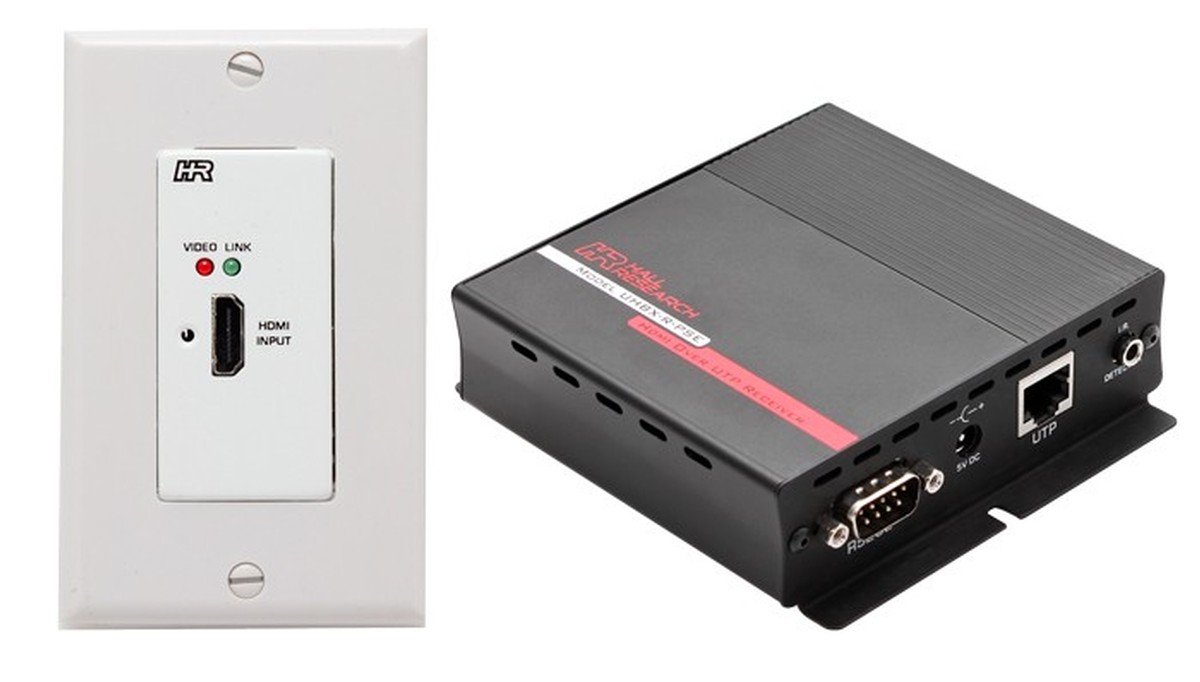

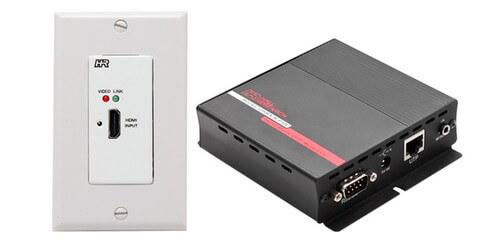

The Hall Research UHBX-WP-P2 is a single decora wall plate with an HDMI connection that also has an integrated HDBaseT transmitter.  You can send your HDMI signal over Cat5e/6 cabling up to 500' with 1080P and 330' with 4K using the included Hall Research UHBX-R-PSE receiver, it will also send power to the wall plate so it doesn't require a power supply.  The wall plate passes EDID, CEC, 3D, and is HDCP compliant.

IR and RS-232 extension can be added on and purchased as a kit with part number UHBX-WPC-P2, this will provide RS-232 and IR extension in both directions. The RS-232 can operate at any baud rate including 115,200 at all times and the IR extension is fully compatible with all standards.

The Hall Research UHBX-WP-P2 is an affordable HDBaseT wall plate for sending your HDMI reliable over long distances with a included receiver that will send power to the wall plate.


  • Size: Single gang
  • Includes mud ring so you don't need an electrical box
  • Locking HDMI input connector
  • Audio Formats: All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)
  • Made in the USA
  • Warranty: 3 years
