Hall Technologies
UHBX-SW3-WP
2 HDMI, 1 VGA, 1 Audio, Auto Switching 4K Wall Plate

Description

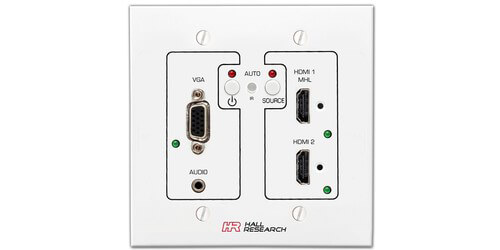

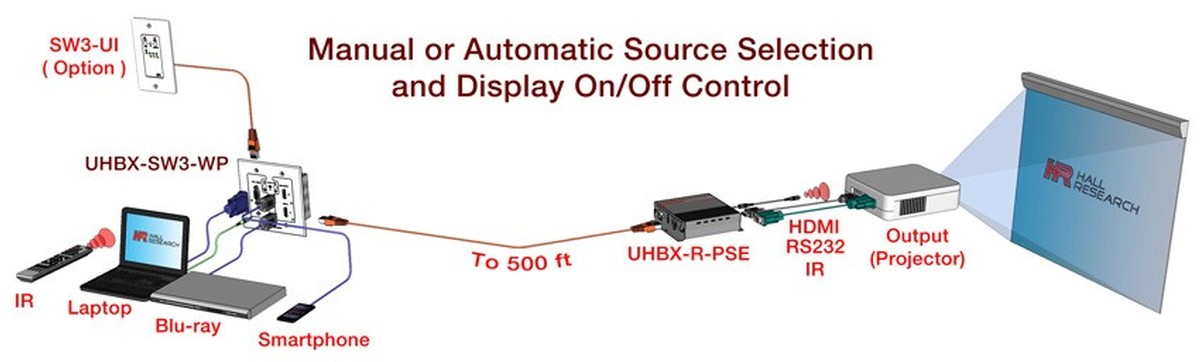

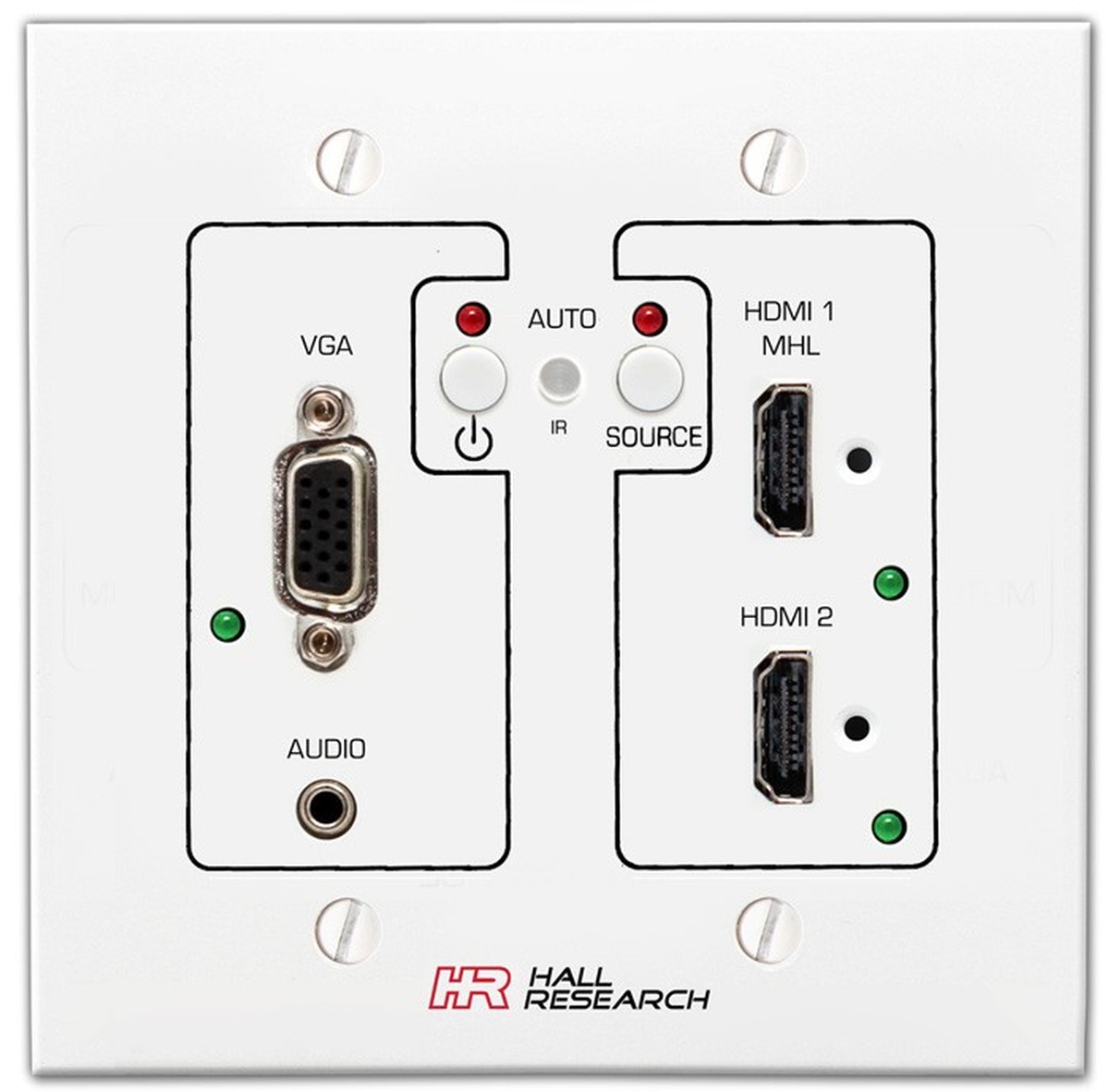

The Hall Research UHBX-SW3-WP is a multi-format auto switching 4K HDBaseT out wall plate that features 2 HDMI, 1 VGA, and 1 audio input.  It then outputs all these over a single Cat6 cable over HDBaseT to a compatible receiver. The signal can be sent up to 330' for 4K resolutions and up to 500' for 1080P resolutions using the optionally purchased UHBX-R-PSE receiver that that also sends power to the transmitter. Not only does the wall plate detect the last plugged in signal on the wall plate and automatically switch but it also has a source button that allows for quick manual input selections. Another special feature on the wall plate is it has RS-232, CEC, and IR capabilities allowing you to power on and off your TV with a power button on the wall plate, or you can also set it to automatic mode where the RS-232 commands are sent to power on the TV when a signal is detected.  The TV will power off automatically when the signal is lost after your desired set delay.

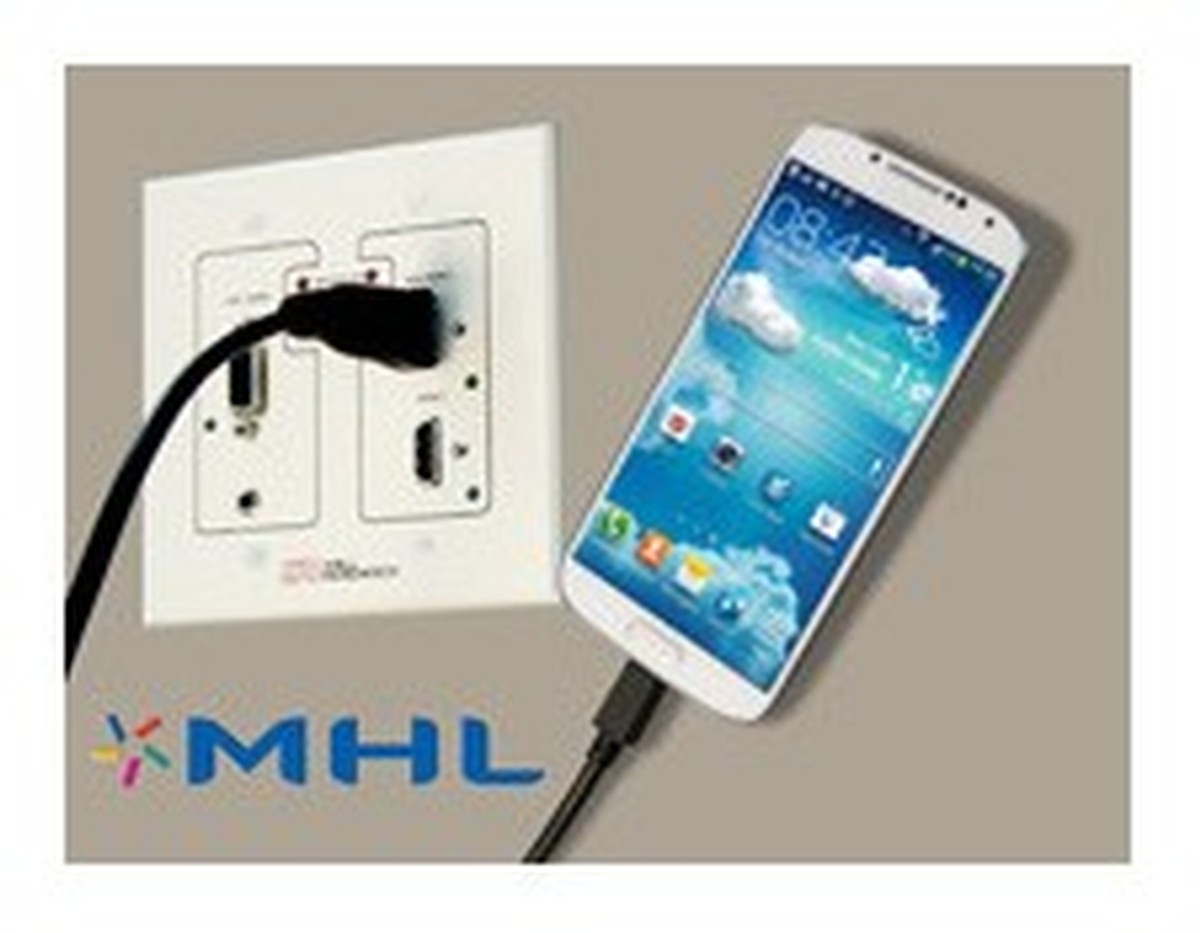

When the VGA is detected it will automatically scale to 1080P or whatever resolution you choose, the audio is embedded over the Cat6 cable as well.  The HDMI input number 1 supports MHL with phone charging which allows users to present from their phone with just a cable.

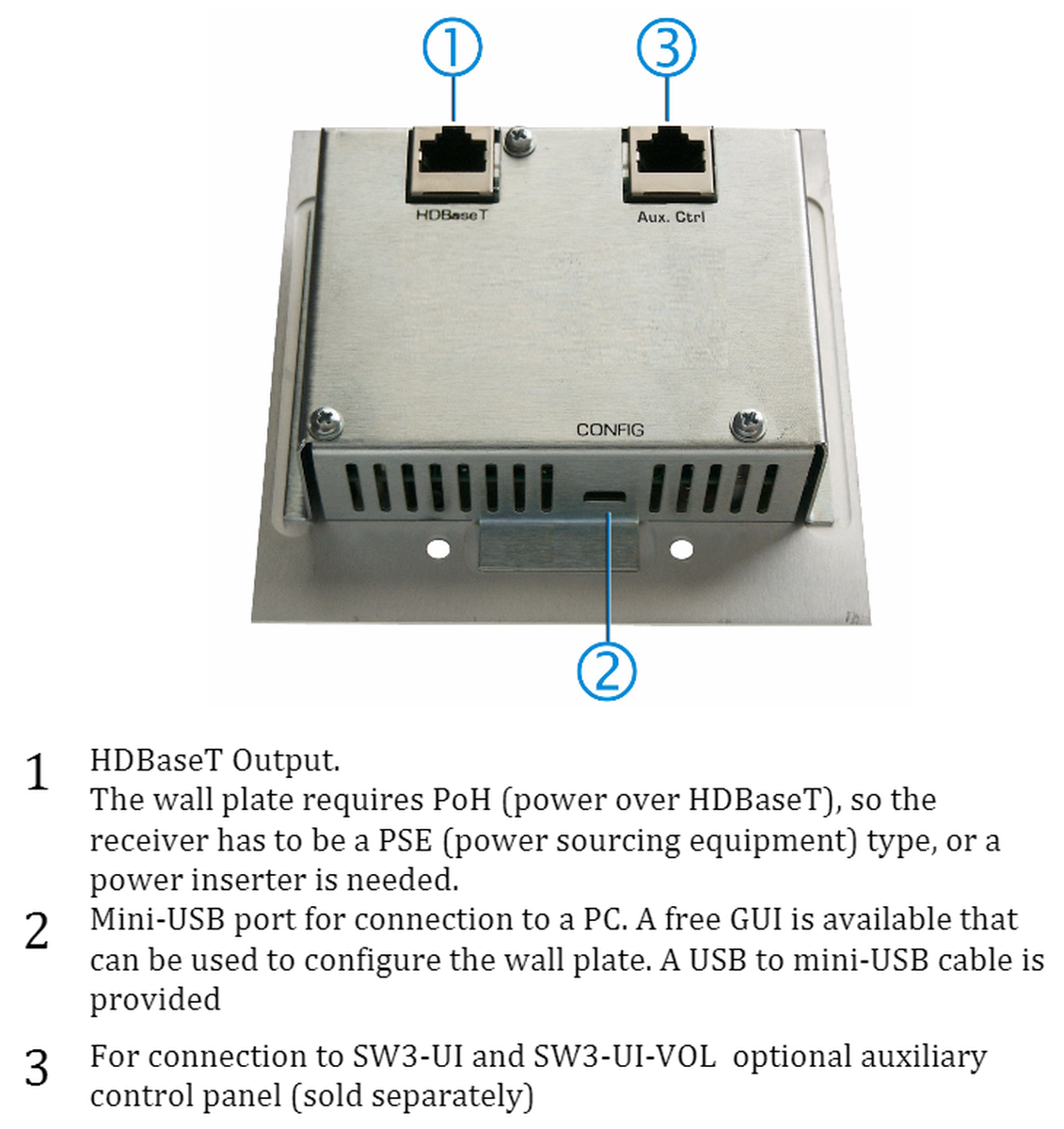

There is a USB port that allows full easy to use drag and drop programming of the UHBX-SW3 wall plate, take full control of all the capabilities quickly and easily making set up a breeze.  This kit is ideal for conference rooms, classrooms, or anywhere you need high quality presentation.

Connect to the optionally purchased SW3-UI or SW3-UI-VOL wall plates for remote control of your wall plate, the SW3-UI-VOL adds volume up and down as well as muting.  Now you can control your wall plate from up to 200' away in the room by simply connecting a Cat5 cable to the aux input on the back of the wall plate.

Specifications

• HDCP complaint

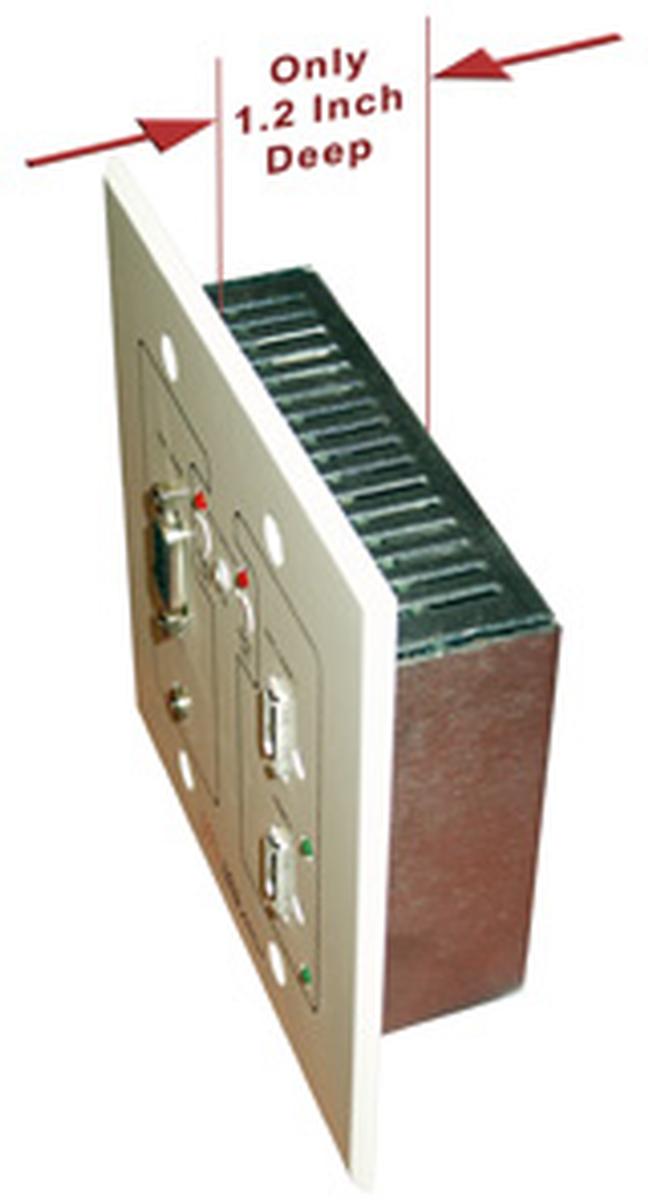

• Size: 2 gang, 1.2" deep
• Manual or automatic input selection
• Manual or automatic power of TV
• Compatible receiver powers wall plate
• Supports all HDMI resolutions including being 4K supported
• Scaling: HDMI and VGA can be scaled to your choice of resolutions
• HDMI input #1 features MHL with phone charging
• Input Standards: HDMI 1.4, MHL 2.0, DVI 1.0, VESA VGA, NTSC 3.58
• Includes power supply for receiver
• Warranty: 3 years

Downloads

• Hall Technologies UHBX-SW3-WP Specifications (PDF)
• Hall Technologies UHBX-SW3-WP Manual (PDF)
