Hall Technologies UHBX-S-WP
4K HDBaseT HDMI Wall Plate Transmitter - 500'

Part #: UHBX-S-WP
Satisfaction Guaranteed!
MSRP: $387.20
Our Price: $367.84
Free Shipping* | 30 Day Returns* | Authorized Dealer
Click for $20 Off!
Top UHBX-S-WP Specifications
  • HDBaseT HDMI Decora wall plate transmitter
  • Distance: Up to 500' for 1080P@60 and 330' for 4K@30 Resolution: Up to 4K (UHD) Supported
  • Receives power from compatible receiver
  • Size: Single gang
"Excellent experience - thank you for all your help"
Contact a product specialist!
Proudly supporting our customers since 2008

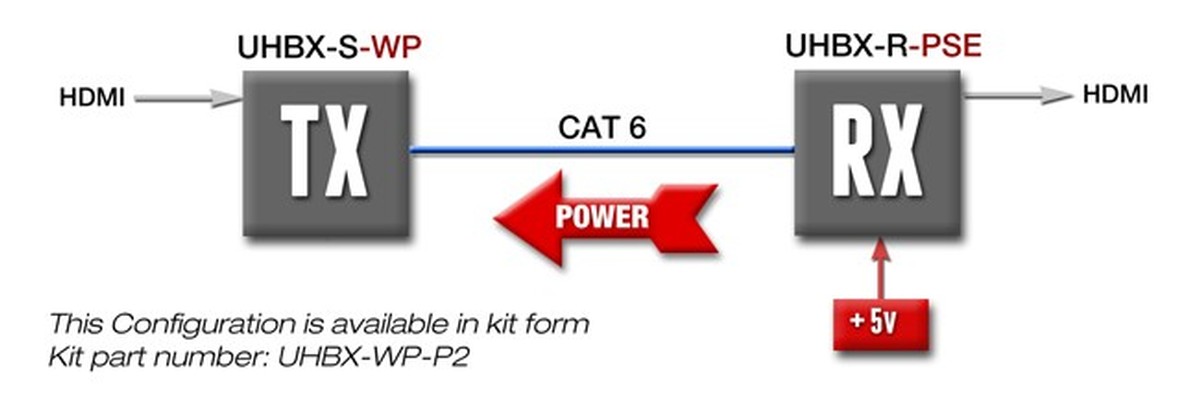

The Hall Research UHBX-S-WP is a single decora wall plate with an HDMI connection that also has an integrated HDBaseT transmitter.  You can send your 1080P HDMI signal over Cat5e/6 cabling up to 500' and 330' for 4K by using the Hall Research UHBX-R-PSE receiver, it will also send power to the wall plate so it doesn't require a power supply.  The wall plate passes EDID, CEC, 3D, and is HDCP compliant.

The wall plate and receiver can be purchased as a kit with part number UHBX-WP-P2.  IR and RS-232 extension can be added on with optionally purchased part number UHCOM-WP, this will provide RS-232 and IR extension in both directions. The RS-232 can operate at any baud rate including 115,200 at all times and the IR extension is fully compatible with all standards.

The Hall Research UHBX-S-WP is an affordable HDBaseT wall plate for sending your HDMI reliable over long distances.


  • Includes mud ring so you don't need an electrical box
  • Locking HDMI input connector
  • CEC: Pass-Thru CEC for Consumer Electronics Control compatible devices
  • Audio Formats: All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)
  • Made in the USA
  • Warranty: 3 years
