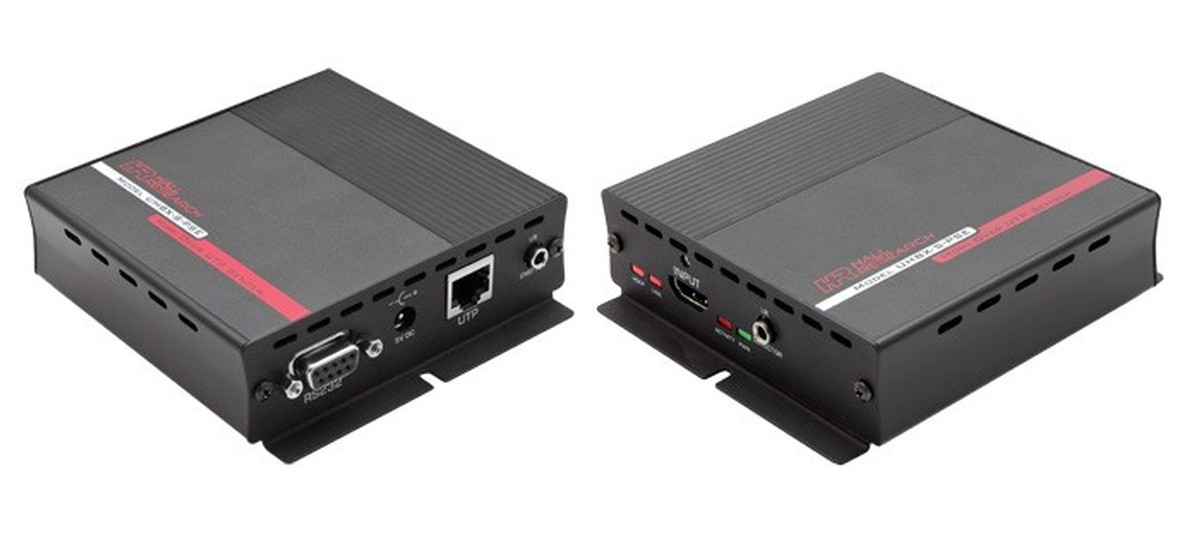

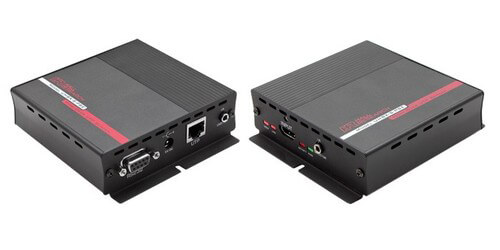

Hall Technologies UHBX-S-PSE
4K HDBaseT Sender, RS-232, IR, Power - 500'

Part #: UHBX-S-PSE
Satisfaction Guaranteed!
MSRP: $427.90
Our Price: $406.51
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $20 Off!
Top UHBX-S-PSE Specifications
  • HDBaseT transmitter
  • Distance: 4K@30 up to 330', 1080P@60 up to 500'
  • Resolution: Up to 4K Supported
  • Supports: 3D, EDID, HDCP, deep color
"Great support and help from technical support!"
-Patrick S.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

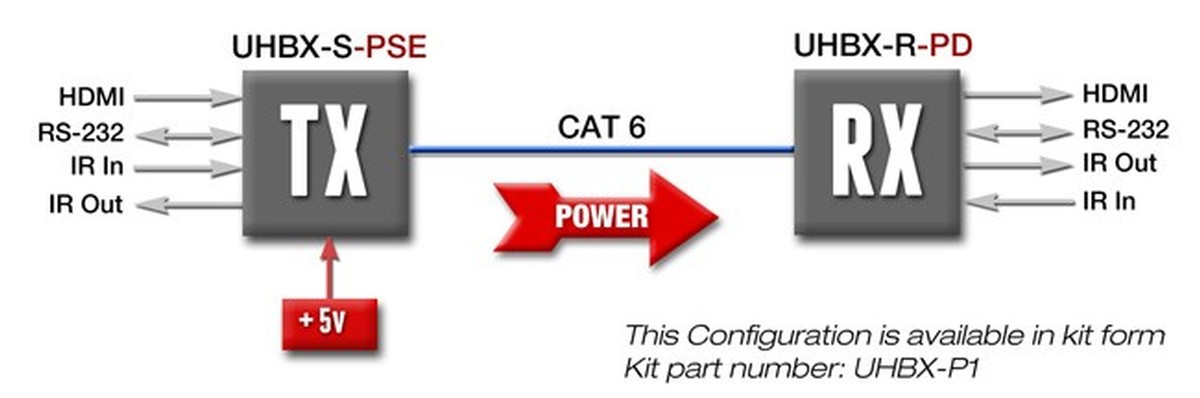

The Hall Research UHBX-S-PSE is an HDBaseT sender that transmits your HDMI with embedded audio over Cat5e/6 cabling.  This long range sender allows you to send your 1080P signal up to 500' and your 4K signal up to 330' with perfect clarity and no noise in the signal.  The sender supports the ability to send up to 4K resolution, power, IR, RS-232, it also supports deep color, HDCP compliance, and EDID and 3D pass through.  The transmitter sends power to the receiver so the receiver doesn't need a power supply.

The Hall Research UHBX-S-PSE is an affordable and reliable means to send your 4K video up to 330' in distance with no compression and no set up time, it is plug and play installation.

Specifications

  • Sends: Video, HD audio, full duplex RS-232, bi-directional IR, and power
  • Secondary data channels such as: DDC, CEC, and HPD (Hot-Plug Detect) are also transparently extended
  • Compatible with all HDBaseT and HDBaseT Class B (HDBaseT-Lite) compliant products
  • Locking HDMI connector
  • Includes power supply
  • Audio Formats: All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)
  • Dimensions: 1.18" H x 4.13" W x 4.57" D
  • Made in USA
  • Warranty: 3 years

Q & A

This product has no questions - ask one!

Ask a Question

Reviews

There are currently no reviews for this product.

Write a Review
