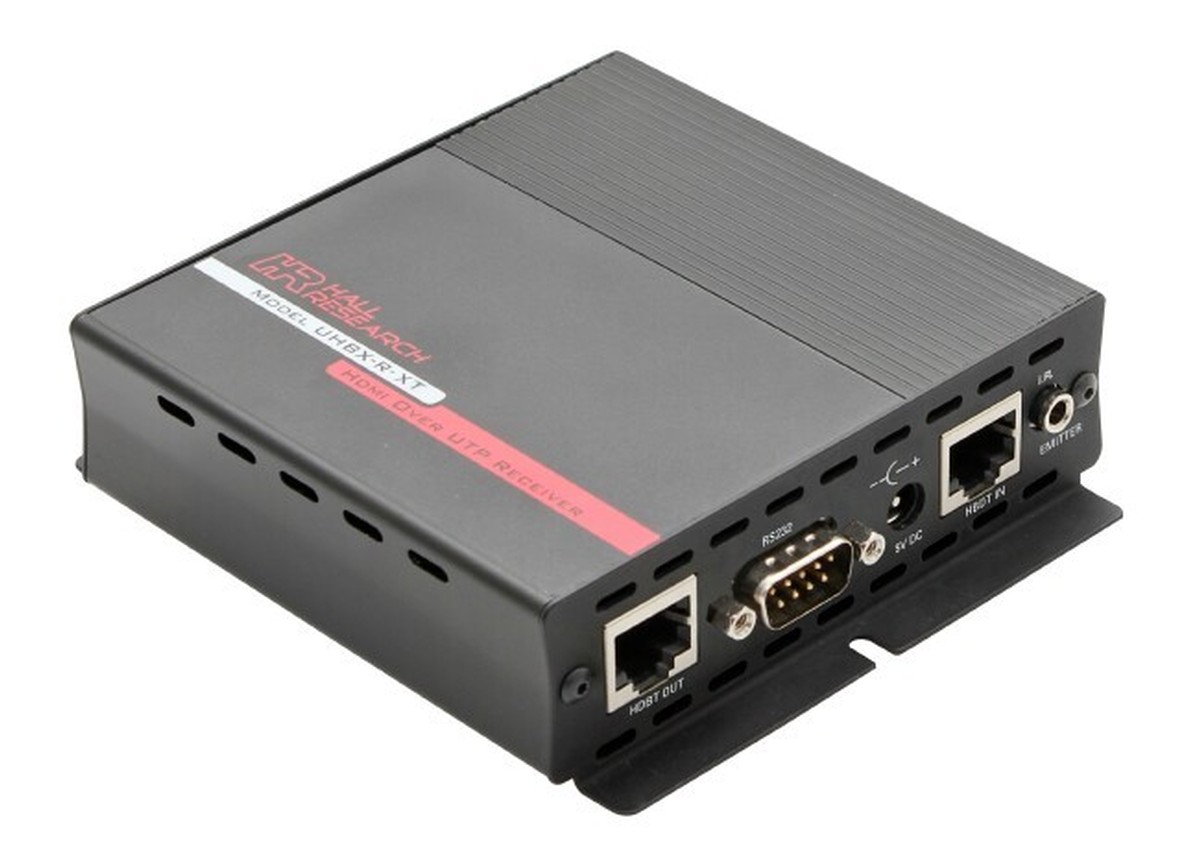

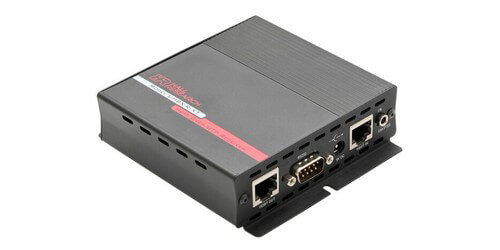

Hall Technologies UHBX-R-XT
4K HDBaseT Daisy Chainable Receiver w/ RS-232 and IR - 500'

Part #: UHBX-R-XT
Satisfaction Guaranteed!
MSRP: $713.90
Our Price: $678.21
Free Shipping* | 30 Day Returns* | Authorized Dealer
Coupon
Click for $20 Off!
Top UHBX-R-XT Specifications
  • HDBaseT receiver
  • Distance: 4K@30 up to 330', 1080P up to 500' between each receiver
  • Total distance: 3000'
  • Resolution: Up to 4K30
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

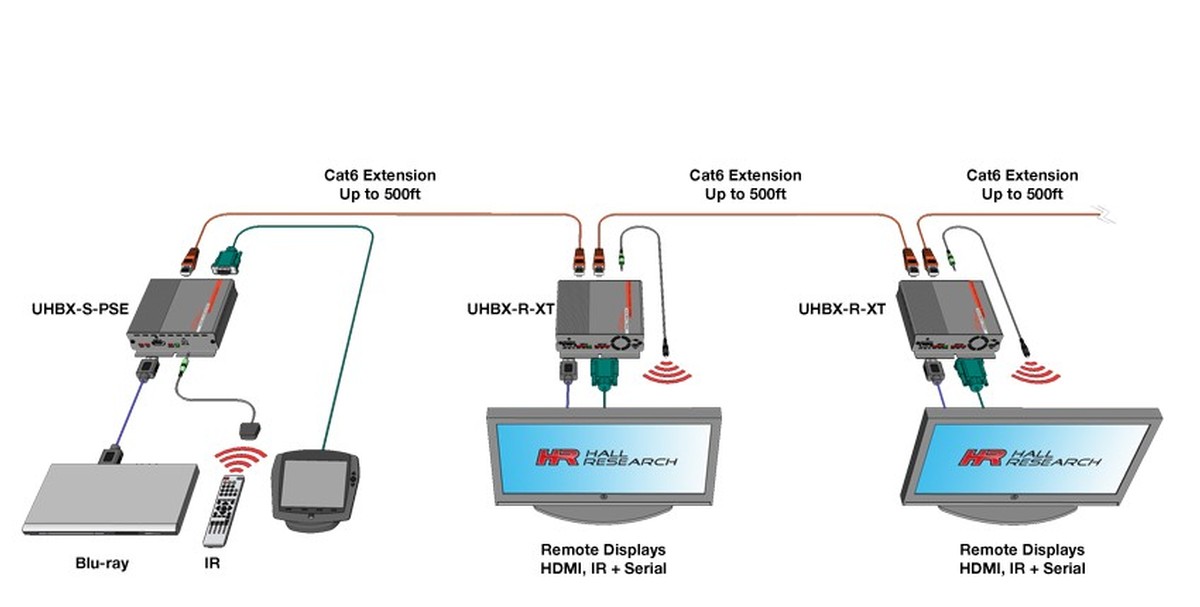

The Hall Research UHBX-R-XT is an HDBaseT receiver that receives your HDMI with embedded audio over Cat5e/6 cabling.  This long range receiver allows you to receive your 1080P signal up to 500' and your 4K signal up to 330' with perfect clarity and no noise in the signal.  The receiver supports the ability to receive up to 4K resolution, IR, RS-232, it also supports deep color, HDCP compliance, and EDID and 3D pass through.  What makes this model unique is that you can daisy chain multiple receivers together to obtain a total distance of up to 3,000, up to 500' of cable can be used between each receiver.  This is an ideal solution when you have multiple displays on a log path and need easy to run Cat5e/6 cable.

The Hall Research UHBX-R-XT is an affordable and reliable means to receive your 4K video in multiple locations due to the receivers ability to be daisy chained, the receiver provides no compression and is plug and play.  IR and RS-232 can be sent to all the receivers or you can target individual receivers.

Specifications

  • Supports: 3D, EDID, HDCP, deep color
  • Receives: Video, HD audio, RS-232, IR
  • HDMI 1.4
  • Audio Formats: All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)
  • Includes power supply
  • Locking HDMI connector
  • Dimensions: 1.2" x 4.2" x 4.6"
  • Made in USA
  • Warranty: 3 years
